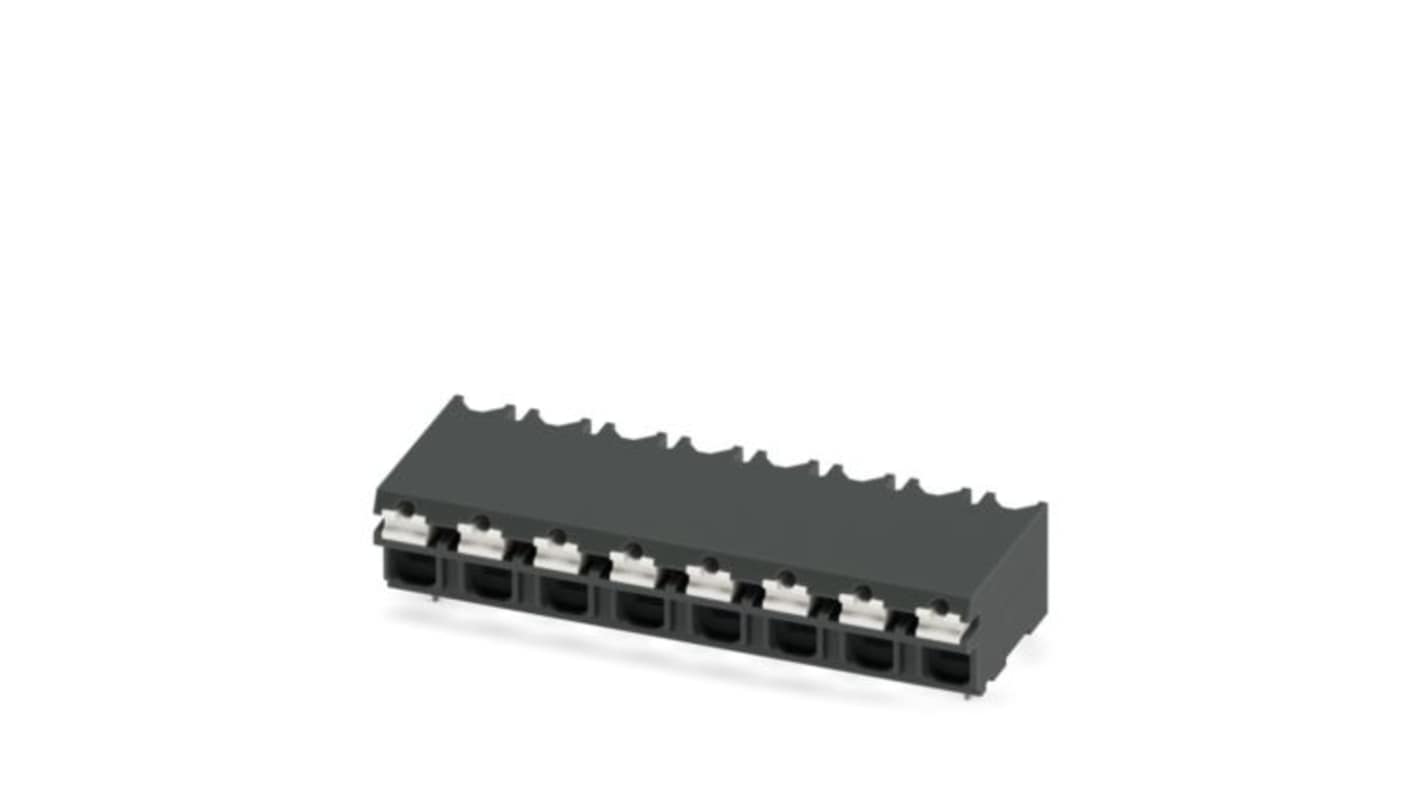

Phoenix Contact SPT Series PCB Terminal Block, 8-Contact, 5mm Pitch, Surface Mount, 1-Row, Push In Spring Termination
- RS Stock No.:
- 558-608
- Mfr. Part No.:
- 1824802
- Brand:
- Phoenix Contact
Subtotal (1 pack of 300 units)*
£759.80
(exc. VAT)
£911.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £759.80 | £2.533 |
*price indicative
- RS Stock No.:
- 558-608
- Mfr. Part No.:
- 1824802
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 8 | |
Pitch | 5mm | |
Number of Rows | 1 | |
Mounting Type | Surface Mount | |
Termination Method | Push In Spring | |
Series | SPT | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mounting Type Surface Mount | ||
Termination Method Push In Spring | ||
Series SPT | ||
- COO (Country of Origin):
- PL
The Phoenix Contact printed circuit board terminal block is designed for reliable and efficient connectivity in electronic applications. Its innovative push-in spring connection promotes quick and tool-free installation, saving valuable time during assembly. The small footprint and SMD soldering compatibility make it ideal for high-density layouts. With a robust performance profile including a nominal current of 17.5 A and a rated voltage of 320 V, this terminal block ensures stable connections under various operational conditions. Crafted from premium materials, it also adheres to stringent compliance standards, making it a trusted choice for both manufacturers and designers. Benefit from built-in testing features that facilitate easy diagnostics, while the colour-coded actuating push button streamlines user interaction, enhancing overall usability and efficiency.
Time-saving push-in connection requires no tools for installation
Defined contact force maintains long-term stability under load
Integrated test option allows for quick and convenient testing
Designed to support the SMT soldering process seamlessly
Color-coded actuating push button simplifies operation
Compact design supports high-density PCB layouts
WEEE/RoHS-compliant materials ensure environmental sustainability
Optimised for thermal performance with a high classification temperature
Suitable for a wide range of conductor sizes from 0.2 mm² to 1.5 mm²
Defined contact force maintains long-term stability under load
Integrated test option allows for quick and convenient testing
Designed to support the SMT soldering process seamlessly
Color-coded actuating push button simplifies operation
Compact design supports high-density PCB layouts
WEEE/RoHS-compliant materials ensure environmental sustainability
Optimised for thermal performance with a high classification temperature
Suitable for a wide range of conductor sizes from 0.2 mm² to 1.5 mm²
