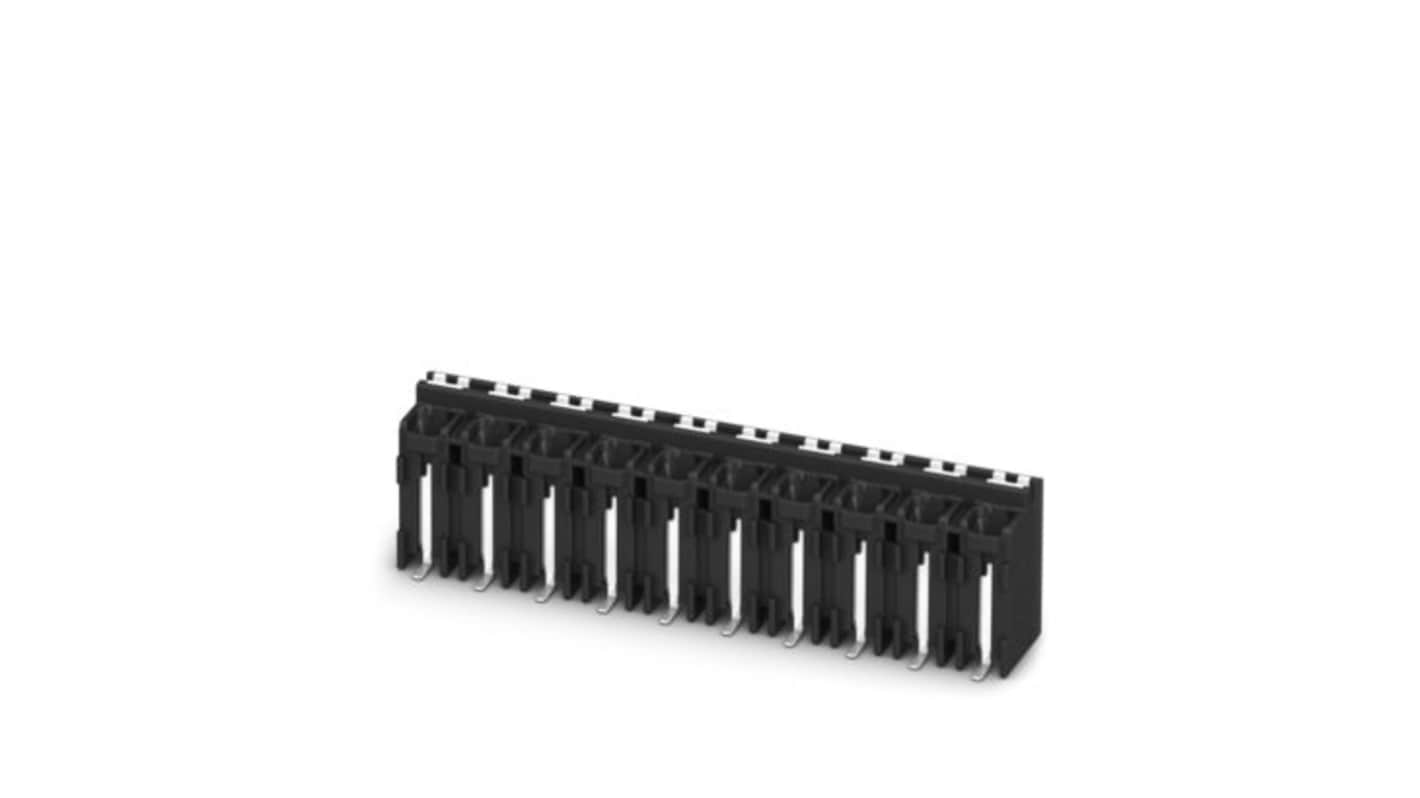

Phoenix Contact SPT Series PCB Terminal Block, 10-Contact, 5 mm Pitch, Surface, 1 Row
- RS Stock No.:
- 556-712
- Mfr. Part No.:
- 1824381
- Brand:
- Phoenix Contact
Subtotal (1 pack of 200 units)*
£797.04
(exc. VAT)
£956.45
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £797.04 | £3.985 |
*price indicative
- RS Stock No.:
- 556-712
- Mfr. Part No.:
- 1824381
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 10 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Surface | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 90° | |
| Wire Connection Method | Push-in Spring | |
| Colour | White, Black | |
| Voltage | 32V | |
| Series | SPT | |
| Depth | 7.7mm | |
| Width | 49mm | |
| Length | 13.6mm | |
| Standards/Approvals | VDE approval, UL 94 V0, IEC 60998-2-2:2002-12, IEC 60998-1:2002-12, IEC 60947-7-4:2019-01, IEC 60664-1:2007-04, cULus Recognised | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 10 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Surface | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 90° | ||
Wire Connection Method Push-in Spring | ||
Colour White, Black | ||
Voltage 32V | ||
Series SPT | ||
Depth 7.7mm | ||
Width 49mm | ||
Length 13.6mm | ||
Standards/Approvals VDE approval, UL 94 V0, IEC 60998-2-2:2002-12, IEC 60998-1:2002-12, IEC 60947-7-4:2019-01, IEC 60664-1:2007-04, cULus Recognised | ||
- COO (Country of Origin):
- PL
The Phoenix Contact printed circuit board terminal offers a robust and efficient solution for electrical connections within compact applications. Engineered with precision, it employs a push-in spring connection mechanism that simplifies installation while ensuring a reliable connection with minimal effort. Designed for surface mount technology (SMD) soldering, it fits seamlessly into modern electronic assemblies, making it ideal for high-density layouts. The component boasts a nominal current rating of 17.5 A and a rated voltage of 320 V, providing exceptional performance in demanding environments. Its user-friendly features, such as a colour-coded actuating push button, enhance operational convenience, making it a preferred choice for both engineers and assembly technicians.
Time-saving installation with an effortless push-in connection
Stable long-term contact ensured by defined contact force
Colour-coded actuating push button allows intuitive operation
Compatible with standard surface mount soldering processes
Facilitates device integration with a one-directional conductor connection
Integrated test option enables quick and convenient functionality checks
Two soldering spots per position reduce mechanical strain during operation
Compact dimensions allow for space-efficient layouts in PCB designs
