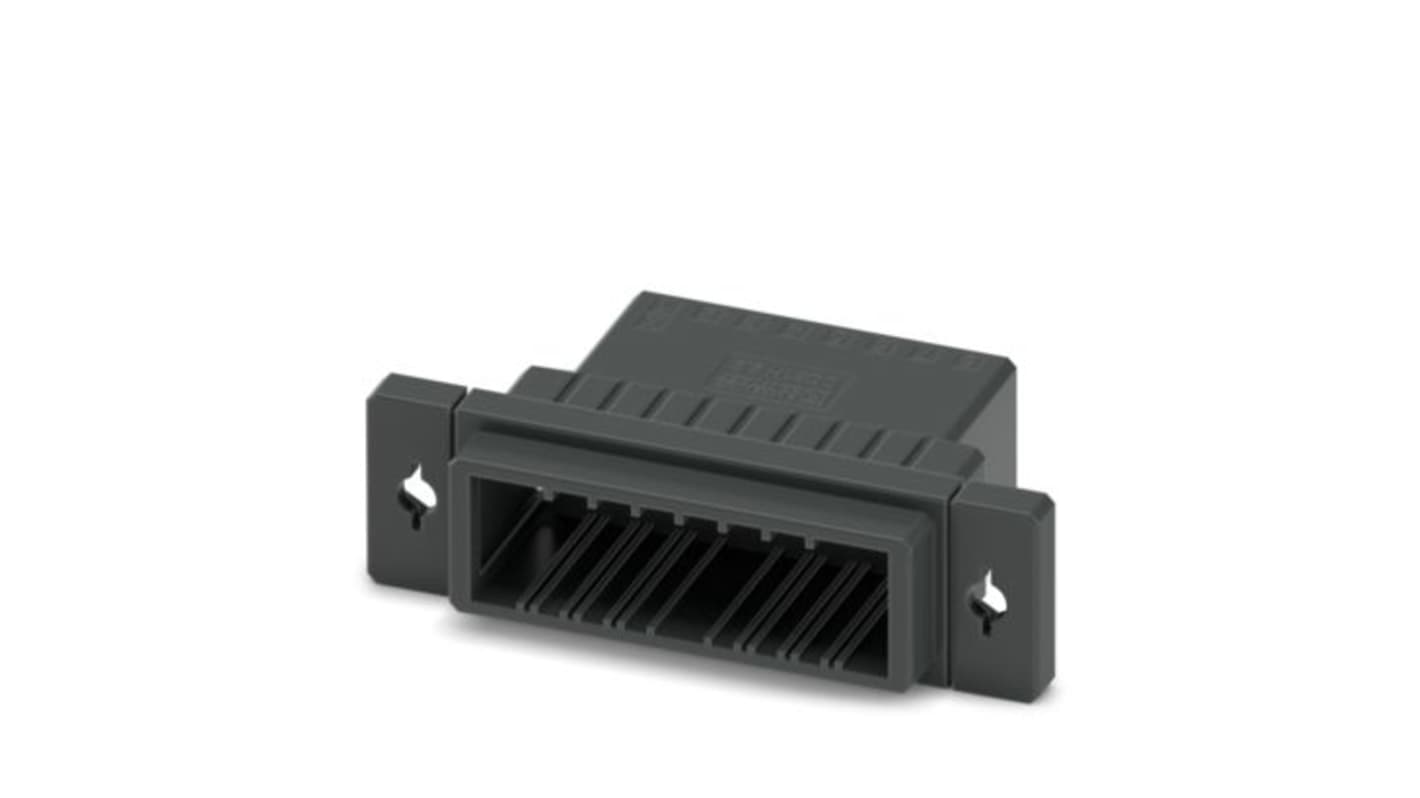

Phoenix Contact DD31H Series Panel Feed Through Terminal Plug, 16-Contact, 3.81 mm Pitch, Snap-in, 1 Row Crimp
- RS Stock No.:
- 521-606
- Mfr. Part No.:
- 1340678
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£137.88
(exc. VAT)
£165.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £137.88 | £2.758 |
*price indicative
- RS Stock No.:
- 521-606
- Mfr. Part No.:
- 1340678
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Panel Feed Through Terminal Plug | |
| Number of Contacts | 16 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Mount Type | Snap-in | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Female | |
| Colour | Black | |
| Termination Type | Crimp | |
| Voltage | 160V | |
| Series | DD31H | |
| Standards/Approvals | IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, IEC 60512-9-1:2010-03, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60068-2-6:2007-12, DIN EN 61984, IEC 60512-3-1:2002-02, ISO 6988:1985-02, UL Recognised Approval ID: E118976-20240617, IEC 60068-2-70:1995-12 | |
| Width | 59mm | |
| Length | 33.6mm | |
| Depth | 17.78mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Panel Feed Through Terminal Plug | ||
Number of Contacts 16 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Mount Type Snap-in | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Female | ||
Colour Black | ||
Termination Type Crimp | ||
Voltage 160V | ||
Series DD31H | ||
Standards/Approvals IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, IEC 60512-9-1:2010-03, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60068-2-6:2007-12, DIN EN 61984, IEC 60512-3-1:2002-02, ISO 6988:1985-02, UL Recognised Approval ID: E118976-20240617, IEC 60068-2-70:1995-12 | ||
Width 59mm | ||
Length 33.6mm | ||
Depth 17.78mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Feed-through connector is a robust and efficient solution designed for seamless connections in demanding applications. It boasts a compact configuration that accommodates high packing density, making it ideal for environments where space is limited. With a comprehensive range of features, this connector not only eases the process of crimped conductor connections but also ensures reliable performance under various conditions. Its intuitive snap-in locking mechanism guarantees secure connections while reducing the risk of accidental disconnections. Constructed from high-quality materials, it is engineered to withstand harsh environments, earning it a place as a dependable choice for professionals seeking durability without compromising on size or efficiency.
Cost-effective solution for high-volume conductor connections
Compact design ideal for space-constrained applications
Two-row arrangement allows for high packing density
Snap-in locking provides added security against accidental unplugging
Automatic crimping tools available for enhanced productivity
Conforms to stringent safety standards for reliable operation
Versatile compatibility with a range of crimp contacts
Resilient against environmental stresses and varying temperatures
