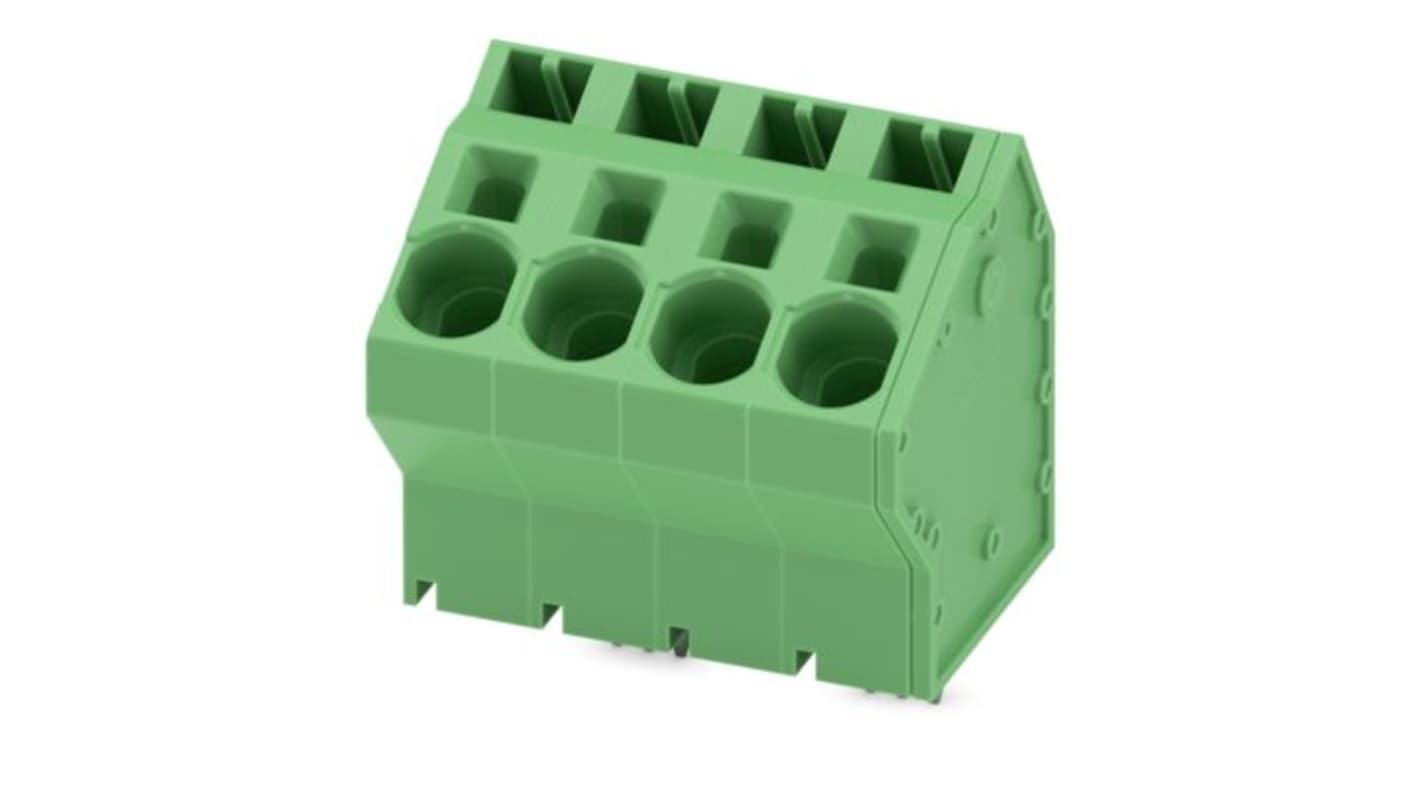

Phoenix Contact SPTA Series PCB Terminal Block, 4-Contact, 10 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 521-543
- Mfr. Part No.:
- 1819228
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£403.20
(exc. VAT)
£483.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £403.20 | £8.064 |
*price indicative
- RS Stock No.:
- 521-543
- Mfr. Part No.:
- 1819228
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 10mm | |
| Current | 76A | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.75mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | 60° | |
| Colour | Green | |
| Wire Connection Method | Push-in Spring | |
| Voltage | 1000V | |
| Length | 32.7mm | |
| Series | SPTA | |
| Width | 40mm | |
| Standards/Approvals | VDE approval of drawings Approval ID: 40041641, cULus Recognised Approval ID: E60425-20061129 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 10mm | ||
Current 76A | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.75mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation 60° | ||
Colour Green | ||
Wire Connection Method Push-in Spring | ||
Voltage 1000V | ||
Length 32.7mm | ||
Series SPTA | ||
Width 40mm | ||
Standards/Approvals VDE approval of drawings Approval ID: 40041641, cULus Recognised Approval ID: E60425-20061129 | ||
- COO (Country of Origin):
- IN
The Phoenix Contact printed circuit board terminal block offers a reliable connection solution tailored for applications requiring robust performance. Designed with a nominal current of 76 A and rated at 1000 V, this model showcases the finest engineering by providing excellent electrical properties and ease of installation. Its innovative push-in spring connection allows for fast and tool-free conductor attachment, significantly enhancing efficiency during assembly. The compact zig-zag pinning ensures a stable and durable connection, making it ideal for multi-row arrangements in diverse configurations. This product combines functionality with compliance, meeting essential standards such as UL approval and RoHS requirements, ensuring it is both user-friendly and environmentally responsible. With its user-focused attributes and dimensional precision, this terminal block is an essential component for any engineered system.
Push-in connection technology enables quick, tool-free assembly
Unrestricted 600-V-UL approval ensures versatile application
Defined contact force maintains stable connections over time
Compact design allows for multi-row arrangements on PCBs
Vibration-resistant features enhance durability in dynamic environments
WEEE/RoHS compliance ensures minimal environmental impact
Lightweight construction aids in overall project weight management
