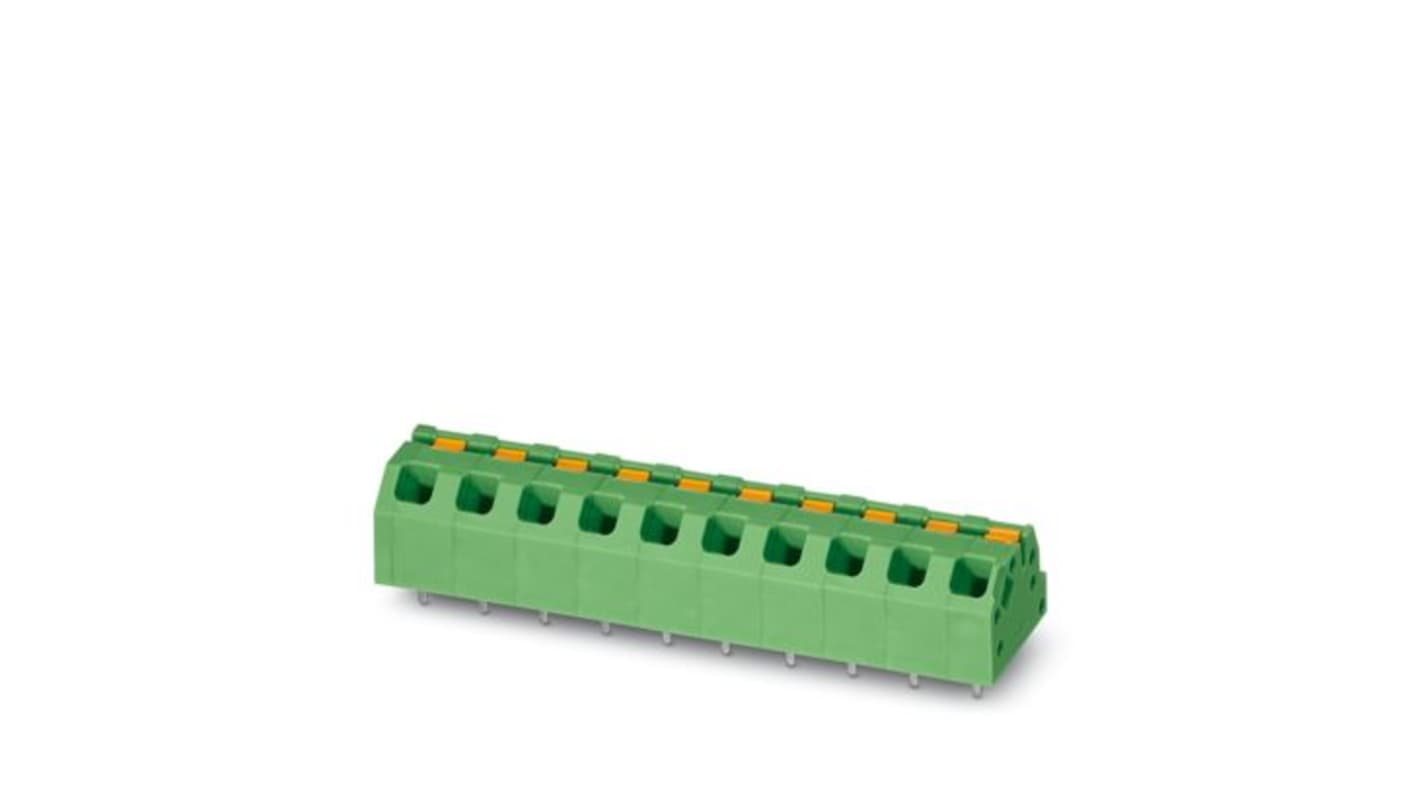

Phoenix Contact SPTAF Series PCB Terminal Block, 9-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 521-450
- Mfr. Part No.:
- 1071077
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 521-450
- Mfr. Part No.:
- 1071077
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 45° | |
| Colour | Green | |
| Wire Connection Method | Push-in Spring | |
| Voltage | 137V | |
| Width | 45mm | |
| Standards/Approvals | IEC 60079-7, IECEx SEV 19.0026U, SEV 19 ATEX 0159 U | |
| Length | 11mm | |
| Series | SPTAF | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 9 | ||
Pitch 5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 45° | ||
Colour Green | ||
Wire Connection Method Push-in Spring | ||
Voltage 137V | ||
Width 45mm | ||
Standards/Approvals IEC 60079-7, IECEx SEV 19.0026U, SEV 19 ATEX 0159 U | ||
Length 11mm | ||
Series SPTAF | ||
- COO (Country of Origin):
- PL
The Phoenix Contact printed circuit board terminal block delivers exceptional performance and reliability in various applications. Designed for optimal functionality, it boasts a nominal current handling capacity of 16 A, ensuring it meets the demands of contemporary automation tasks. The SPTAF 1/9-5.0-IL-EX model facilitates a push-in spring connection, simplifying installations and promoting efficiency. Its innovative design incorporates a compact footprint, making it ideal for tight spaces without compromising on performance. This product is specifically developed to excel in industrial environments, including areas with potentially explosive atmospheres, thanks to its stringent safety certifications. With integrated testing options and a robust construction, it not only ensures long-term durability but also enhances operational precision.
Time saving push in connection requires no additional tools
Defined contact force guarantees stability over prolonged use
Colour coded actuating push button simplifies operation
Compact size suits applications with limited space
Designed to meet enhanced safety standards for explosive environments
Integrated testing feature allows for quick and convenient assessments
