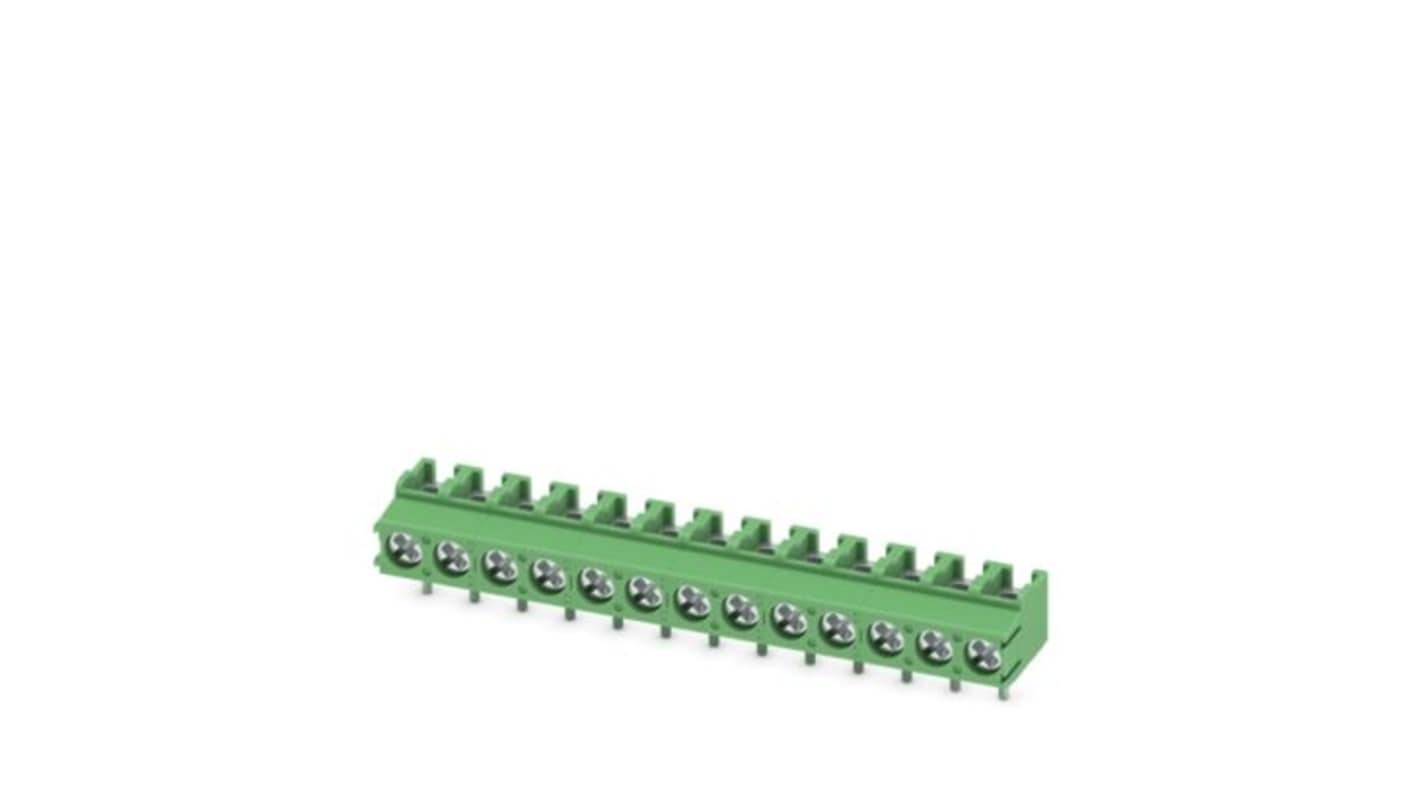

Phoenix Contact PT 1 Series PCB Terminal Block, 13-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 521-430
- Mfr. Part No.:
- 1935420
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£117.85
(exc. VAT)
£141.42
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £117.85 | £2.357 |
*price indicative
- RS Stock No.:
- 521-430
- Mfr. Part No.:
- 1935420
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 13 | |
| Pitch | 5mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 90° | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 40V | |
| Series | PT 1 | |
| Width | 65mm | |
| Standards/Approvals | cULus Recognised, VDE | |
| Length | 11.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 13 | ||
Pitch 5mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 90° | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 40V | ||
Series PT 1 | ||
Width 65mm | ||
Standards/Approvals cULus Recognised, VDE | ||
Length 11.4mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB terminal block PT 1.5/13-5.0-V is engineered for advanced connectivity solutions in printed circuit boards. With a sophisticated design, it accommodates up to 13 connections, offering remarkable versatility for various applications. Leveraging a robust screw connection method, this terminal block ensures secure and reliable contact for both rigid and flexible conductors. Its compact dimensions allow for efficient PCB layout, making it an ideal choice for space-constrained environments. As part of the COMBICON Terminals series, it promises exceptional performance with elevated standards for efficiency and safety. This terminal block is compliant with international electrical standards, assuring users of its reliability in critical applications.
Designed for flexibility in various electronic applications
Features a user-friendly mounting type that simplifies installation
Ensures low temperature rise to enhance system stability
Allows for the connection of dual conductors, offering increased utility
Constructed with high-quality materials that contribute to durability
Meets stringent environmental compliance requirements
Compatible with standard assembly techniques for easy integration
