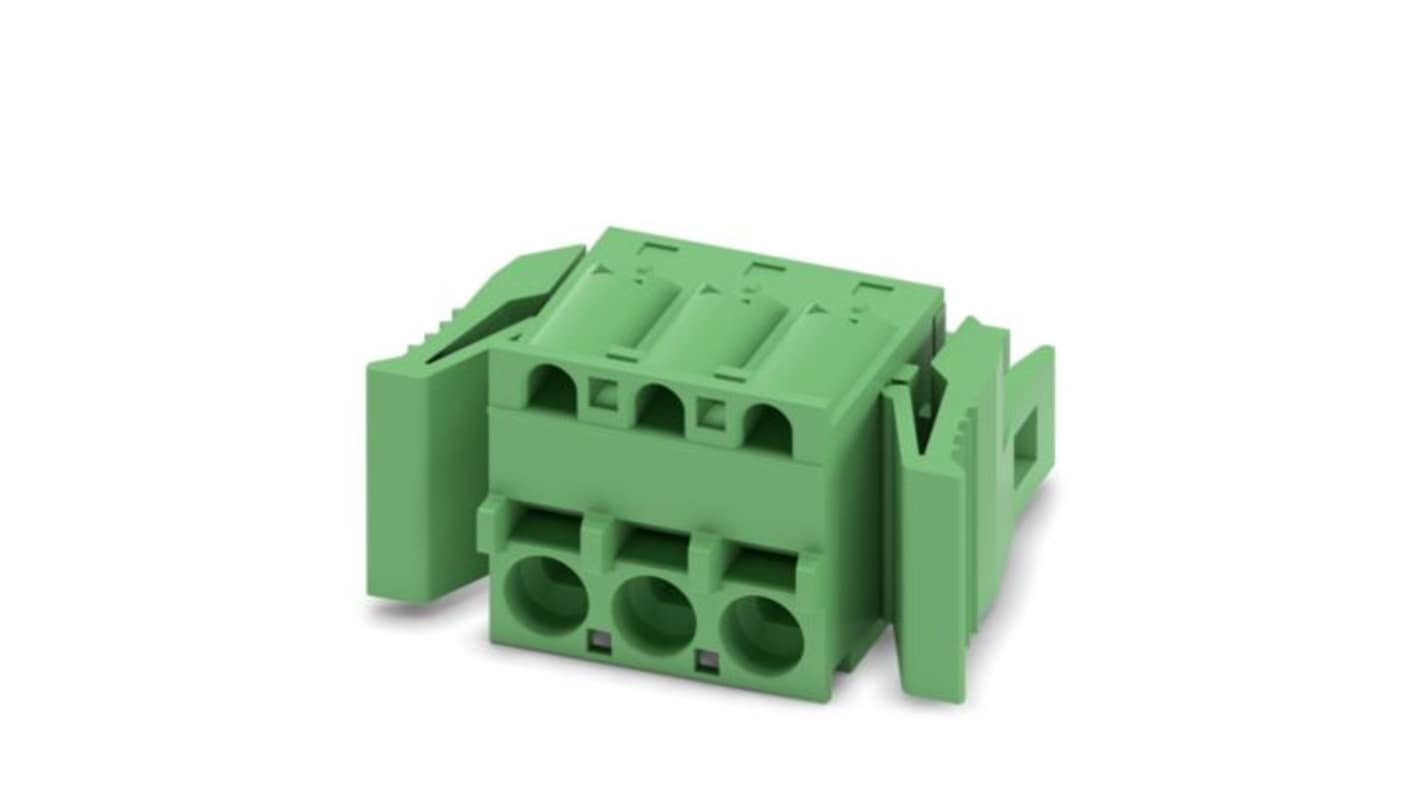

Phoenix Contact FKCS 2 Series PCB Connector, 3-Contact, 5.08 mm Pitch, 1 Row Push-in Spring

View all PCB Terminal Blocks

Subtotal (1 pack of 50 units)*

£156.06

(exc. VAT)

£187.27

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£156.06£3.121

*price indicative

RS Stock No.:
520-213
Mfr. Part No.:
1808572
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

3

Product Type

PCB Connector

Pitch

5.08mm

Current

12A

Number of Rows

1

Housing Material

Polyamide

Connector Gender

Female

Termination Type

Push-in Spring

Colour

Green

Voltage

320V

Standards/Approvals

IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, EN ISO 22479:2022-06, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, UL 94 V0, CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694, EU RoHS

Width

28.66mm

Series

FKCS 2

Length

25.1mm

Depth

15mm

COO (Country of Origin):
DE
The Phoenix Contact PCB Connector offers a robust solution for connecting multiple circuits in a compact format. Designed for efficiency, the connector utilises a push-in spring connection method, allowing for quick and tool-free installations. Its sturdy construction combined with high-quality materials ensures reliability in diverse applications, making it suitable for various electronic devices. The connector boasts a nominal current capacity of 12 A and a rated voltage of 320 V, allowing it to be used in demanding electrical environments. With its intuitive locking mechanism, users can trust that connections remain secure, preventing accidental disconnections. This reliable component also features a green housing that signals its compliance with environmental standards. Perfect for utilising in modern, compact devices, this connector is part of the FKCS 2.5/-ST-RF series, showcasing both versatility and performance.

Time saving push in connection simplifies wiring tasks

Integrated test option assists with convenient testing during setup

Snap in locking system enhances security and prevents accidental disconnections

Compatible with the MSTB 25 range for broader application

Designed for optimal performance across a wide temperature range

Compact dimensions contribute to efficient space management in assemblies

Constructed from high quality materials that ensure durability and compliance

Easy removal and replacement supporting efficient maintenance
