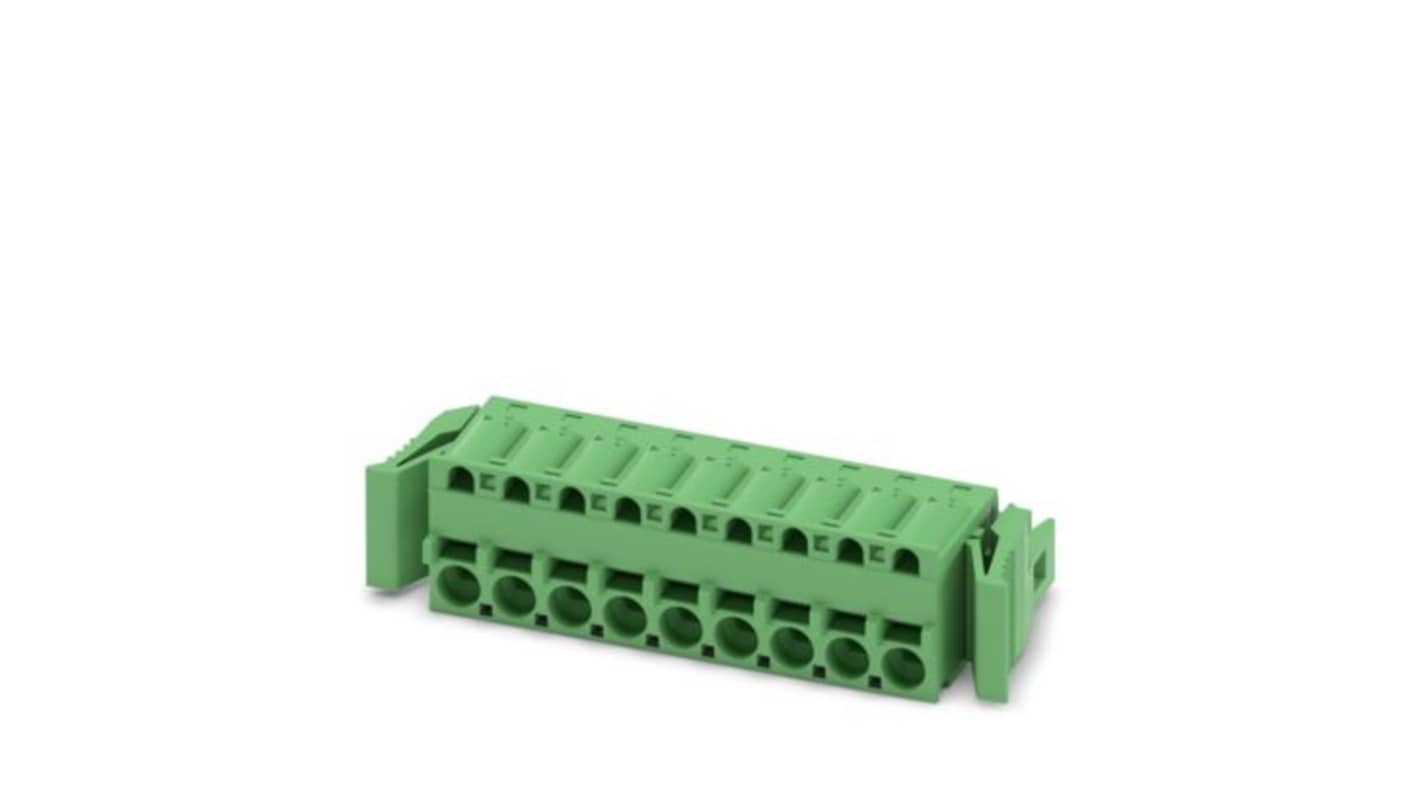

Phoenix Contact FKCS Series PCB Connector, 9-Contact, 5.08 mm Pitch, 1 Row Push-in Spring
- RS Stock No.:
- 497-070
- Mfr. Part No.:
- 1808637
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£413.64
(exc. VAT)
£496.37
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £413.64 | £8.273 |
*price indicative
- RS Stock No.:
- 497-070
- Mfr. Part No.:
- 1808637
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 9 | |
| Product Type | PCB Connector | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Push-in Spring | |
| Voltage | 320V | |
| Series | FKCS | |
| Width | 59.14mm | |
| Length | 25.1mm | |
| Standards/Approvals | IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, EN ISO 22479:2022-06, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, UL 94 V0, CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694, EU RoHS | |
| Depth | 15mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 9 | ||
Product Type PCB Connector | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Push-in Spring | ||
Voltage 320V | ||
Series FKCS | ||
Width 59.14mm | ||
Length 25.1mm | ||
Standards/Approvals IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, EN ISO 22479:2022-06, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, UL 94 V0, CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694, EU RoHS | ||
Depth 15mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Connector is designed for reliable and efficient connectivity in various applications. With a nominal current of 12 A and a rated voltage of 320 V, this connector ensures optimal electrical performance. Its innovative push-in spring connection technology allows for quick and tool-free conductor connections, making assembly a straightforward process. The green housing not only adds a visually appealing aspect but is also constructed from robust PA insulating material, ensuring durability and compliance with industry standards. This connector is particularly suited for environments requiring a compact design with top-notch functionality and safety, making it an ideal choice for a wide range of electronic applications.
Innovative design facilitates quick and easy conductor connections without the need for tools
Engineered for a maximum current capacity of 12 A ensuring reliable power distribution
Robust construction enhances durability making it suitable for demanding environments
The integrated test option simplifies troubleshooting and enhances user convenience
A unique intuitive locking mechanism safeguards against accidental disconnection during operation
Compatible with the MSTB 25 range providing versatility for diverse applications
Supports a variety of conductor cross sections accommodating different cable types
Resilient to environmental factors ensuring consistent performance over a wide temperature range
