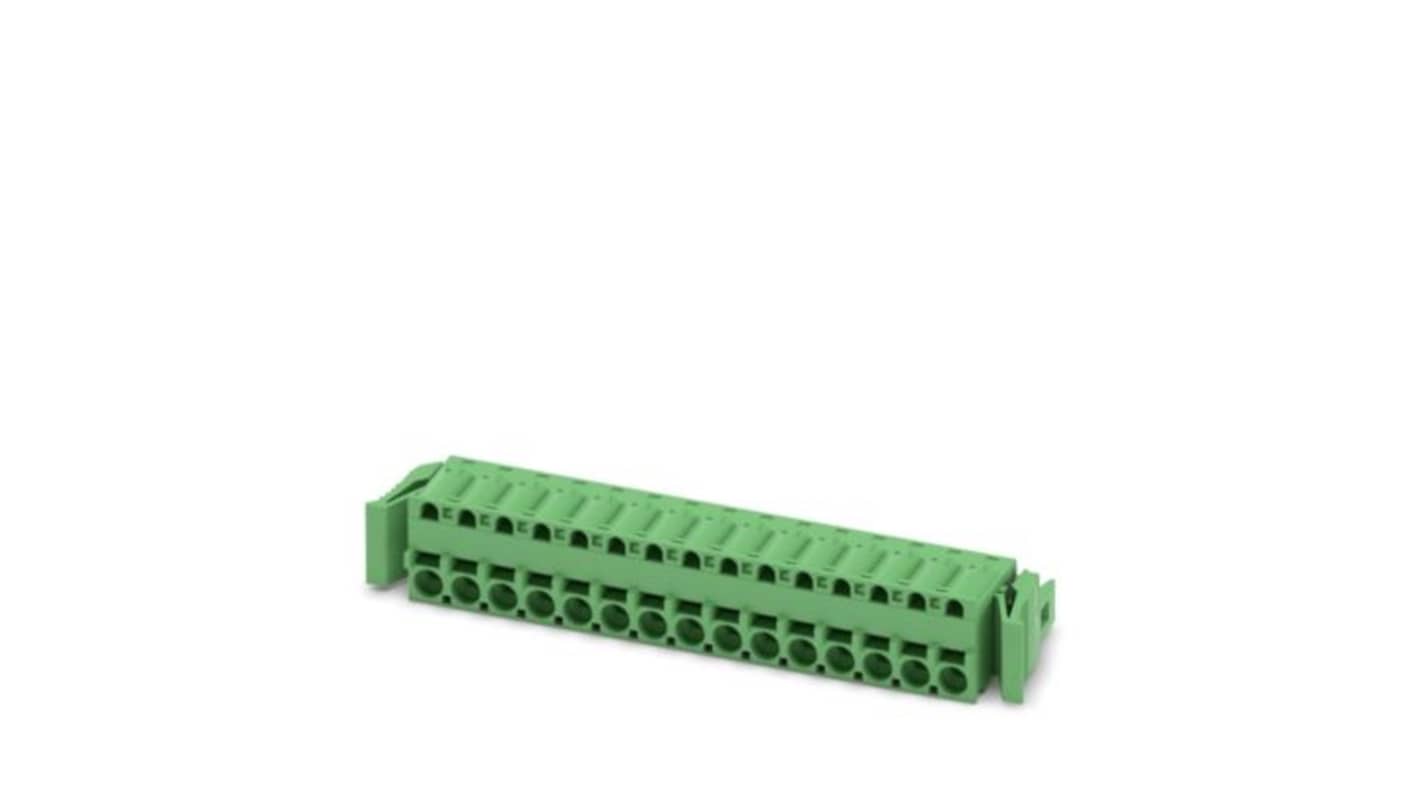

Phoenix Contact FKCS Series PCB Connector, 15-Contact, 5.08 mm Pitch, 1 Row Push-in Spring

View all PCB Terminal Blocks

Subtotal (1 pack of 50 units)*

£671.21

(exc. VAT)

£805.45

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£671.21£13.424

*price indicative

RS Stock No.:
520-221
Mfr. Part No.:
1808695
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

15

Product Type

PCB Connector

Pitch

5.08mm

Number of Rows

1

Current

12A

Housing Material

Polyamide

Connector Gender

Female

Termination Type

Push-in Spring

Colour

Green

Voltage

320V

Standards/Approvals

cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694, IEC 60664-1:2007-04, IEC 60112, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, WEEE/RoHS-compliant, IEC 60068-2-82, JEDEC JESD 201, EU RoHS, CHINA RoHS, EU REACH SVHC

Depth

15mm

Series

FKCS

Width

89.62mm

Length

25.1mm

COO (Country of Origin):
DE
The Phoenix Contact PCB Connector from the FKCS 2.5 series offers exceptional reliability for electronic connections. Designed with advanced push-in spring technology, it provides a snug fit and secure connection without the need for tools, streamlining the assembly process. Its robust construction supports a nominal current of 12 A and a rated voltage of 320 V, making it ideal for demanding applications. The green housing is not only aesthetically pleasing but also constructed from high-quality, flame-retardant materials for added safety. With 15 positions and a compact design featuring a pitch of 5.08 mm, this component ensures space efficiency while maintaining high performance. Whether it's for industrial use or commercial applications, this PCB connector is engineered to meet stringent standards, ensuring longevity and reliability in every use.

Quick and convenient conductor connection via innovative push in design

Integrated test option simplifies troubleshooting and enhances convenience

Secure locking mechanism prevents accidental disconnections

Compatibility with COMBICON MSTB 25 range for versatile applications

Optimised design facilitates easy handling and installation

Constructed for a broad temperature range ensuring performance in harsh conditions

Environmentally compliant adhering to WEEE and RoHS regulations
