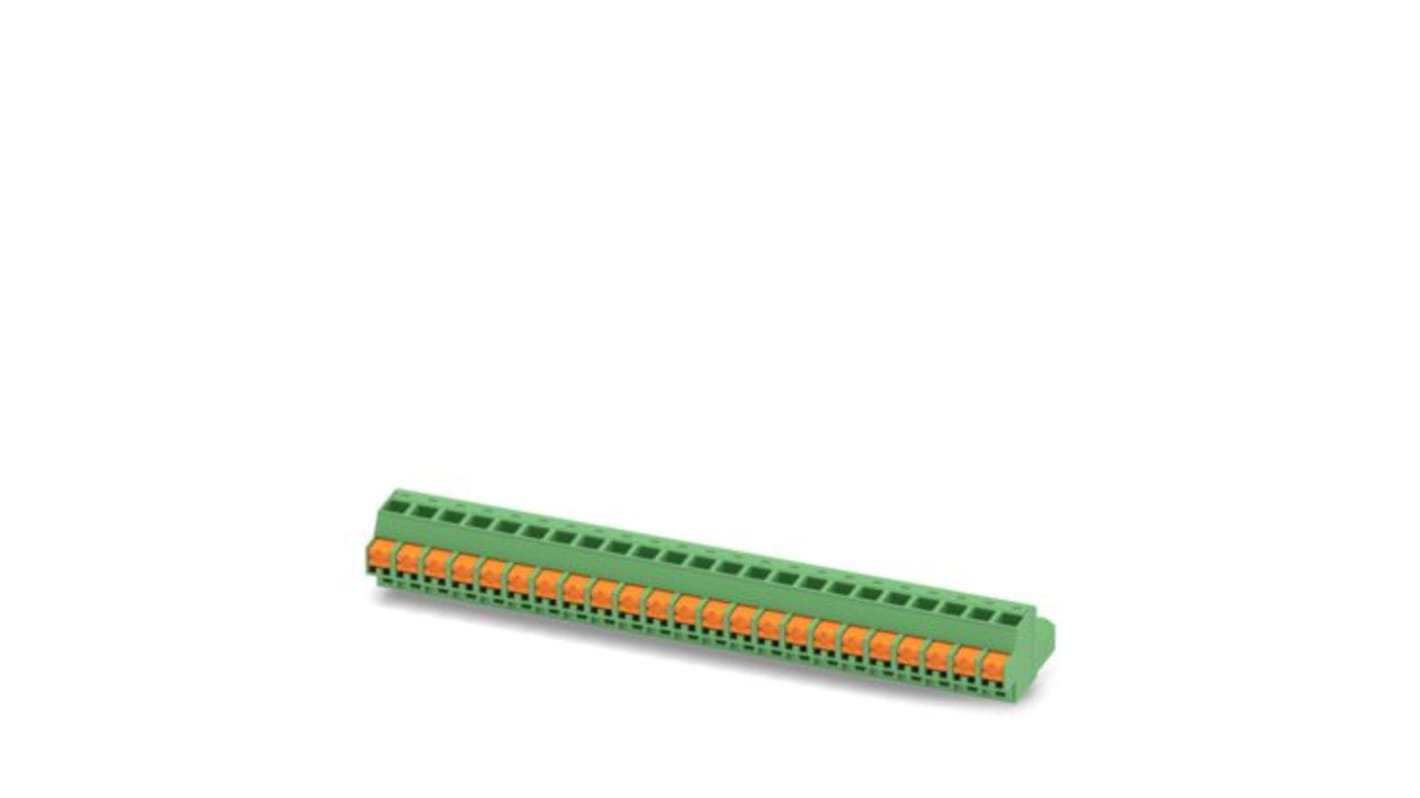

Phoenix Contact FKCOW 2 Series PCB Connector, 23-Contact, 5.08 mm Pitch, 1 Row

View all PCB Terminal Blocks
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
520-197
Mfr. Part No.:
1860756
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Connector

Number of Contacts

23

Pitch

5.08mm

Number of Rows

1

Current

12A

Housing Material

Polyamide

Connector Gender

Female

Colour

Green

Voltage

320V

Width

116.71mm

Series

FKCOW 2

Standards/Approvals

UL Recognised (E60425-19931011), E60425-19931011

Length

23.7mm

COO (Country of Origin):
PL
The Phoenix Contact PCB connector revolutionises the way connections are made in DIN-rail-mountable devices. Designed specifically for seamless integration, it boasts a distinct push-in spring connection method that eliminates the need for tools, thereby saving invaluable time during installation. With a nominal cross section of 2.5 mm2 and a robust construction, this connector is engineered to handle up to 12 A of current and 320 V of voltage, ensuring reliable performance in demanding environments. The connector's intuitive colour-coded actuating push button simplifies operation, whilst the integrated test option facilitates quick and convenient troubleshooting.

The conductor connection is orthogonal to the direction of operation, enhancing cabling efficiency

A time-saving design allows for push-in connections without the need for tools

An intuitive operating mechanism features a colour-coded actuating button for easy handling

Integrated testing options allow for quick diagnostics and functionality checks

The connector is specifically developed for compatibility with the MSTB 2.5 series, enhancing versatility

Its compact design facilitates easy installation in space-restricted environments

The robust construction holds up under rigorous electrical and mechanical testing
