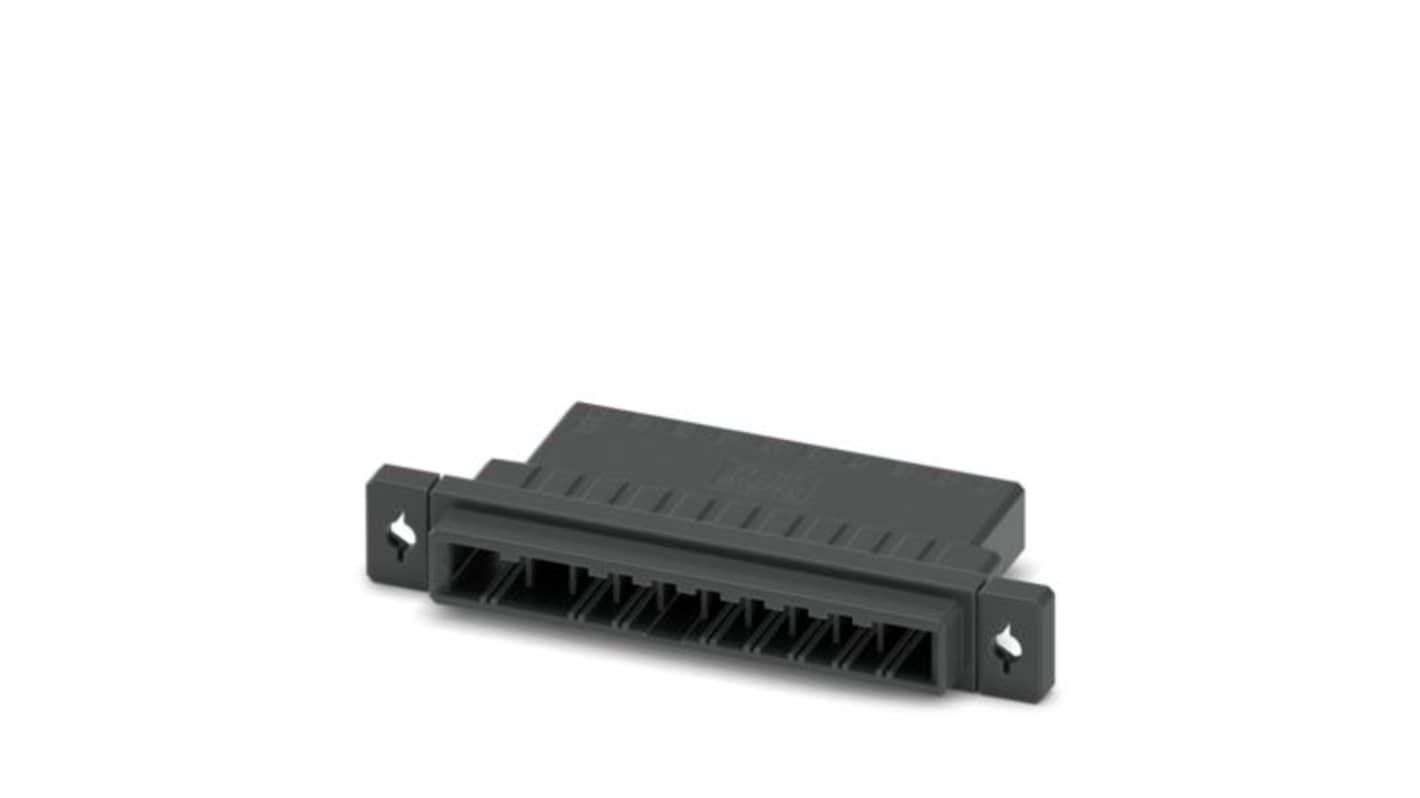

Phoenix Contact D32H Series Panel Feed Through Terminal Plug, 10-Contact, 5.08 mm Pitch, Snap-in, 1 Row Crimp
- RS Stock No.:
- 517-150
- Mfr. Part No.:
- 1376518
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£145.45
(exc. VAT)
£174.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £145.45 | £2.909 |
*price indicative
- RS Stock No.:
- 517-150
- Mfr. Part No.:
- 1376518
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Panel Feed Through Terminal Plug | |
| Number of Contacts | 10 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Housing Material | Polybutylene Terephthalate | |
| Mount Type | Snap-in | |
| Connector Gender | Female | |
| Termination Type | Crimp | |
| Colour | Black | |
| Voltage | 320V | |
| Series | D32H | |
| Standards/Approvals | UL 94 V0, ISO 6988:1985-02, DIN 46228‐4, IEC 60999-1:1999-11, IEC 60512-9-1:2010-03, IEC 60112, EN 60695-2-13, IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, cULus Recognised E60425-19920306, VDE approval of drawings 40011723, EN 60695-10-2, IEC 60512-3-1:2002-02, IEC 60512-1-1:2002-02, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60068-2-70:1995-12, DIN 46228‐1, EN 60695-2-12, IEC 60068-2-6:2007-12 | |
| Width | 78.23mm | |
| Depth | 12.7mm | |
| Length | 33.6mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Panel Feed Through Terminal Plug | ||
Number of Contacts 10 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 8A | ||
Housing Material Polybutylene Terephthalate | ||
Mount Type Snap-in | ||
Connector Gender Female | ||
Termination Type Crimp | ||
Colour Black | ||
Voltage 320V | ||
Series D32H | ||
Standards/Approvals UL 94 V0, ISO 6988:1985-02, DIN 46228‐4, IEC 60999-1:1999-11, IEC 60512-9-1:2010-03, IEC 60112, EN 60695-2-13, IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, cULus Recognised E60425-19920306, VDE approval of drawings 40011723, EN 60695-10-2, IEC 60512-3-1:2002-02, IEC 60512-1-1:2002-02, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60068-2-70:1995-12, DIN 46228‐1, EN 60695-2-12, IEC 60068-2-6:2007-12 | ||
Width 78.23mm | ||
Depth 12.7mm | ||
Length 33.6mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Feed-through connector is expertly designed for efficient crimp connections, making it the ideal solution for high-volume applications where space is limited. Engineered with a compact form factor, it enhances connectivity while ensuring robust performance under various conditions. Featuring a reliable snap-in locking mechanism, this connector prevents accidental disconnections, promoting safety and reliability in critical applications. The connector is crafted from durable materials, providing resilience in diverse environments, while its intuitive design facilitates easy installation. With its established reputation for excellence and compliance with industry standards, this connector meets the demands of modern electrical installations, ensuring reliable operation and longevity.
Compact design maximises space in tight configurations
Snap-in locking mechanism enhances safety and prevents unintentional disconnection
Manufactured from high-quality materials for durability and resilience
Rated for a nominal current of 8 A to support robust applications
Conforms to stringent industry standards for quality and safety
Efficiently supports linear pinning for straightforward setup
