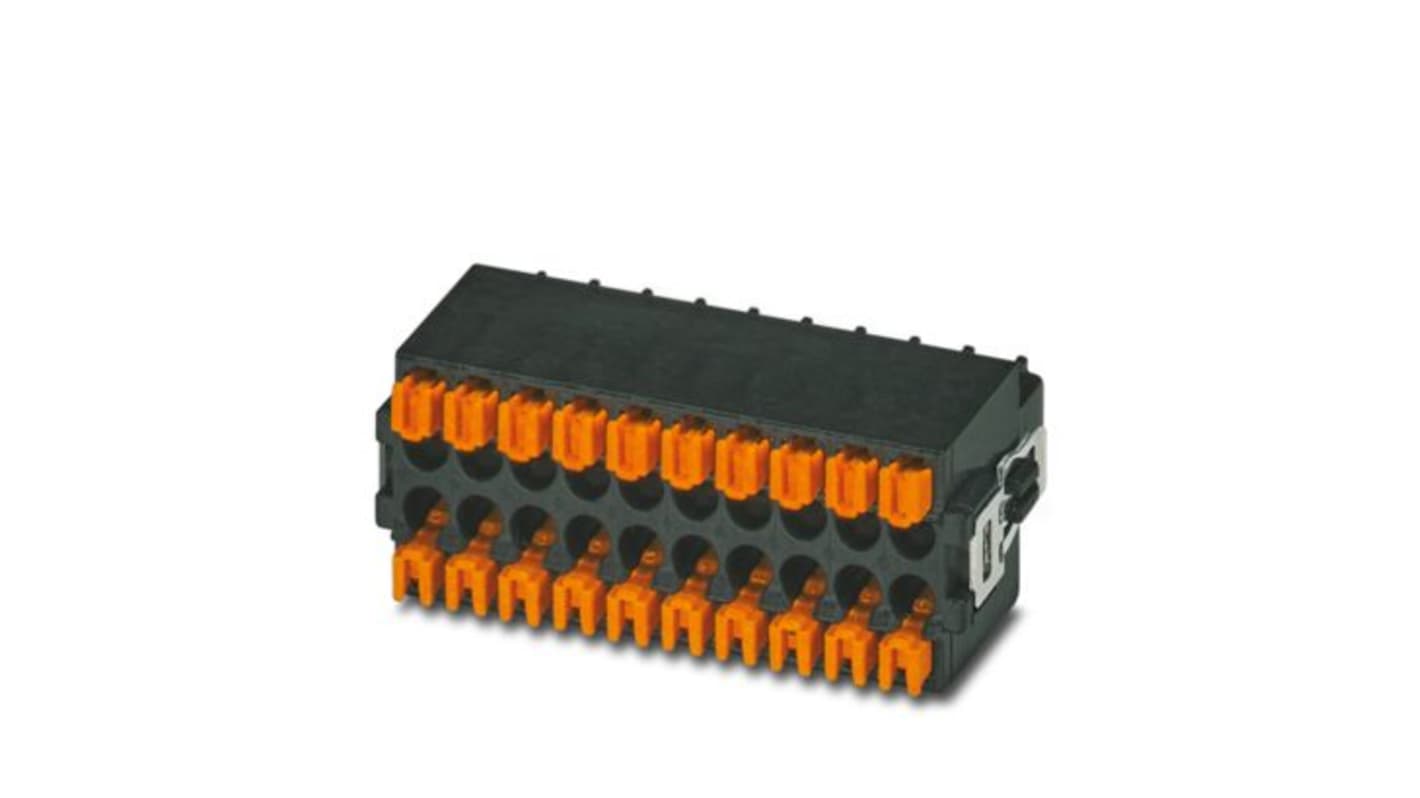

Phoenix Contact DFMC Series PCB Terminal Block, 2-Contact, 2.54 mm Pitch, Push-in, 2 Row Socket
- RS Stock No.:
- 489-192
- Mfr. Part No.:
- 1715733
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£175.93
(exc. VAT)
£211.12
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £175.93 | £3.519 |
*price indicative
- RS Stock No.:
- 489-192
- Mfr. Part No.:
- 1715733
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 2 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 2 | |
| Mount Type | Push-in | |
| Housing Material | Liquid Crystal Polymer | |
| Connector Gender | Female | |
| Termination Type | Socket | |
| Colour | Black | |
| Voltage | 160V | |
| Series | DFMC | |
| Depth | 10.5mm | |
| Length | 14.4mm | |
| Standards/Approvals | IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-70:1995-12, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, DIN 50018:2013-05, UL 94 V0, cULus Recognised, VDE report with production monitoring | |
| Width | 7.58mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 2 | ||
Product Type PCB Terminal Block | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 2 | ||
Mount Type Push-in | ||
Housing Material Liquid Crystal Polymer | ||
Connector Gender Female | ||
Termination Type Socket | ||
Colour Black | ||
Voltage 160V | ||
Series DFMC | ||
Depth 10.5mm | ||
Length 14.4mm | ||
Standards/Approvals IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-70:1995-12, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, DIN 50018:2013-05, UL 94 V0, cULus Recognised, VDE report with production monitoring | ||
Width 7.58mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB connector from the COMBICON Connectors XS product line features a COMBICON DFMC 0.5 plug-in system with snap-in locking for secure connections. It uses a latching flange mounting method for stability. The contacts are made of Cu alloy for reliable conductivity, and the insulating material is LCP (liquid crystal polymer), ensuring durability and high-performance insulation.
Time saving push in connection
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to colour coded actuating push button
Optimized for tight installation situations
