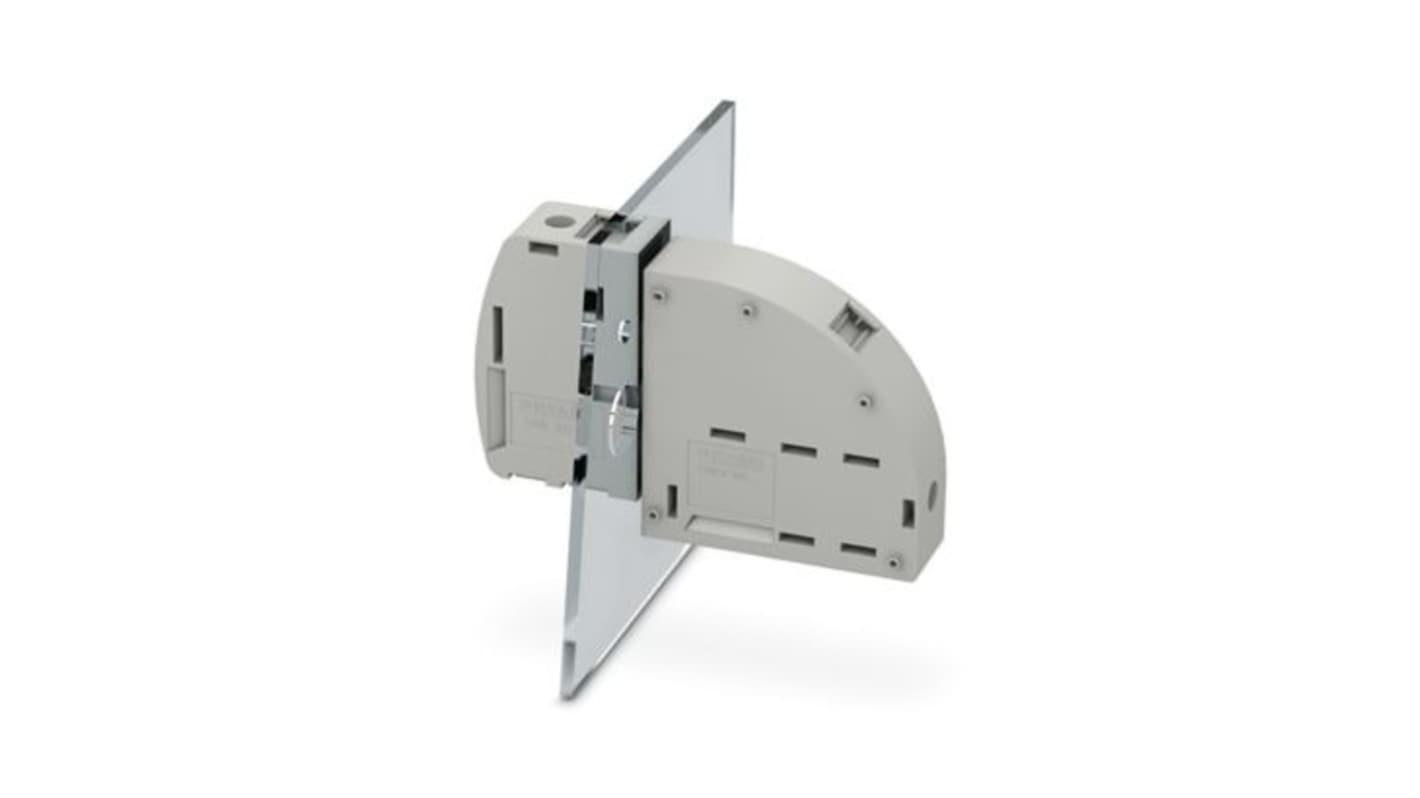

Phoenix Contact UWV Series Panel Feed Through Terminal Plug, 1-Contact, 25 mm Pitch, Cable, 1 Row
- RS Stock No.:
- 487-535
- Mfr. Part No.:
- 1713227
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£170.79
(exc. VAT)
£204.95
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £170.79 | £17.079 |
*price indicative
- RS Stock No.:
- 487-535
- Mfr. Part No.:
- 1713227
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 1 | |
| Product Type | Panel Feed Through Terminal Plug | |
| Pitch | 25mm | |
| Number of Rows | 1 | |
| Current | 232A | |
| Minimum Wire Size mm² | 16mm² | |
| Mount Type | Cable | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 95mm² | |
| Minimum Wire Size AWG | 4AWG | |
| Maximum Wire Size AWG | 3AWG | |
| Orientation | -90° | |
| Colour | Grey | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 1000V | |
| Series | UWV | |
| Width | 25mm | |
| Standards/Approvals | cULus Recognised, VDE, UL 94 V0, IEC 60947-7-1:2009-04, IEC 60947-1:2007-06 + A1:2010-12, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 1 | ||
Product Type Panel Feed Through Terminal Plug | ||
Pitch 25mm | ||
Number of Rows 1 | ||
Current 232A | ||
Minimum Wire Size mm² 16mm² | ||
Mount Type Cable | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 95mm² | ||
Minimum Wire Size AWG 4AWG | ||
Maximum Wire Size AWG 3AWG | ||
Orientation -90° | ||
Colour Grey | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 1000V | ||
Series UWV | ||
Width 25mm | ||
Standards/Approvals cULus Recognised, VDE, UL 94 V0, IEC 60947-7-1:2009-04, IEC 60947-1:2007-06 + A1:2010-12, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2 | ||
- COO (Country of Origin):
- CN
The Phoenix Contact panel feed-through terminal block is engineered to deliver reliability and ease of use in demanding electrical applications. Designed with a versatile screw connection with a tension sleeve, it accommodates various conductor sizes while ensuring mechanical stability and safety. Its robust construction in a striking grey housing allows for professional integration into equipment panels, where efficiency and safety are paramount. The automatic panel thickness compensation feature ensures a secure fit in diverse setups, optimising functionality for engineers and technicians alike. This product exemplifies a blend of innovation and practicality, making it an essential component for any electrical system.
Utilises a well-known screw connection principle for global compatibility
Facilitates quick installation with tool-free snap-in functionality
Offers exceptional load handling with a nominal current rating of 232 A
Equipped with a low-temperature rise technology to enhance performance
Features a flame-rated housing for improved safety standards
Accommodates a wide range of conductor cross sections, enhancing versatility
