WAGO 2616 Series PCB Connector, 1-Contact, 10 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 225-239
- Mfr. Part No.:
- 2616-1101
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£274.72
(exc. VAT)
£329.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £274.72 | £2.747 |
*price indicative
- RS Stock No.:
- 225-239
- Mfr. Part No.:
- 2616-1101
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 10mm | |
| Current | 76A | |
| Number of Rows | 2 | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.75mm² | |
| Maximum Wire Size mm² | 25mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | 0° | |
| Wire Connection Method | Push-in | |
| Colour | Grey | |
| Voltage | 1000V | |
| Series | 2616 | |
| Width | 12.8mm | |
| Standards/Approvals | No | |
| Depth | 32mm | |
| Length | 12.8mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 10mm | ||
Current 76A | ||
Number of Rows 2 | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.75mm² | ||
Maximum Wire Size mm² 25mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation 0° | ||
Wire Connection Method Push-in | ||
Colour Grey | ||
Voltage 1000V | ||
Series 2616 | ||
Width 12.8mm | ||
Standards/Approvals No | ||
Depth 32mm | ||
Length 12.8mm | ||
- COO (Country of Origin):
- PL

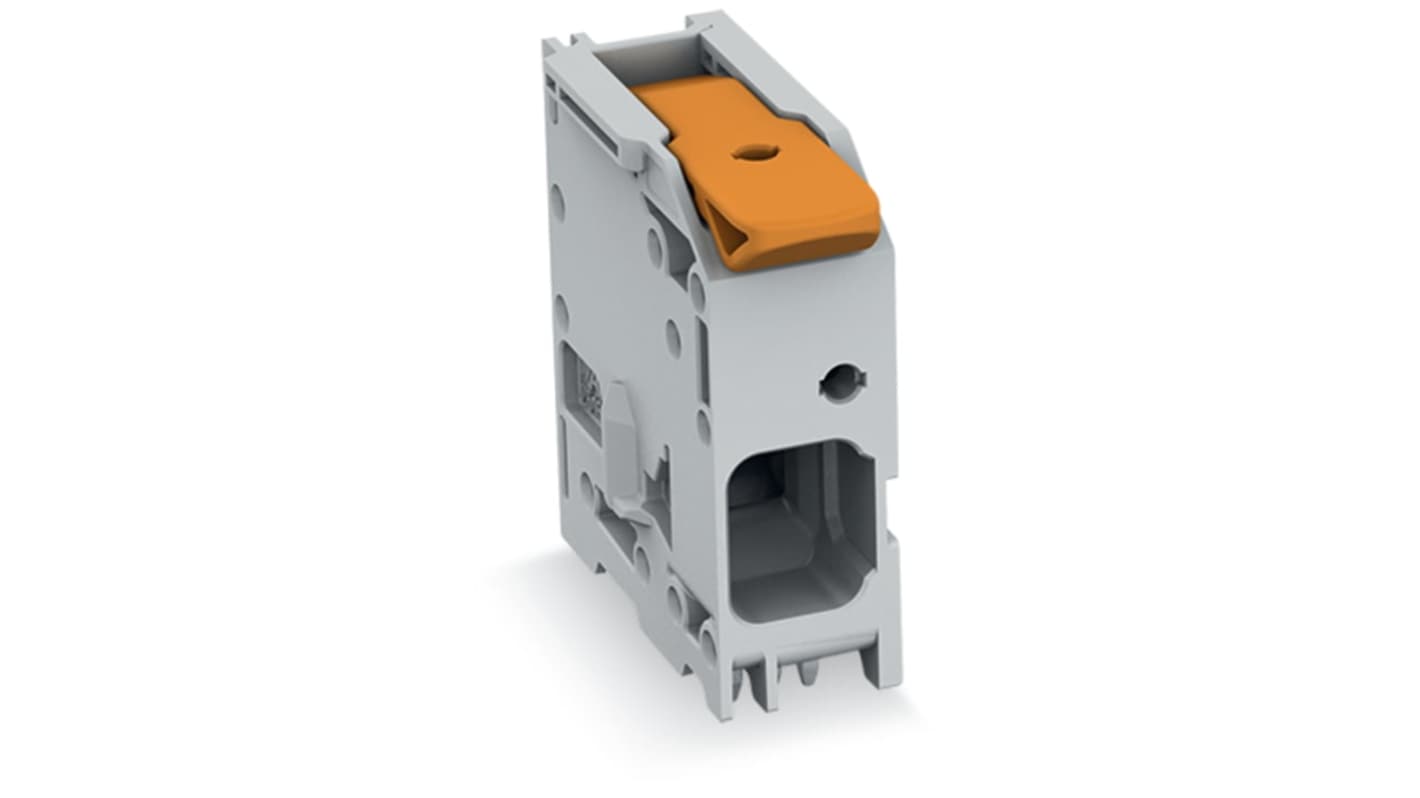

The Wago PCB terminal block with Push-in CAGE CLAMP connection epitomises reliable electrical solutions for your projects. Designed to accommodate a broad range of conductor sizes from fine-stranded to solid, this one-pole connector ensures effortless terminations without the need for specialised tools. Its intuitive design allows multiple clamping units to remain open simultaneously, streamlining the connection of multi-core cables.
Compatible with a variety of conductor sizes catering to diverse installation needs
Compact design optimises space on the PCB facilitating effective layouts
High quality materials ensure long lasting performance across various environments
The orange actuator is not only functional but also enhances visibility during installation
