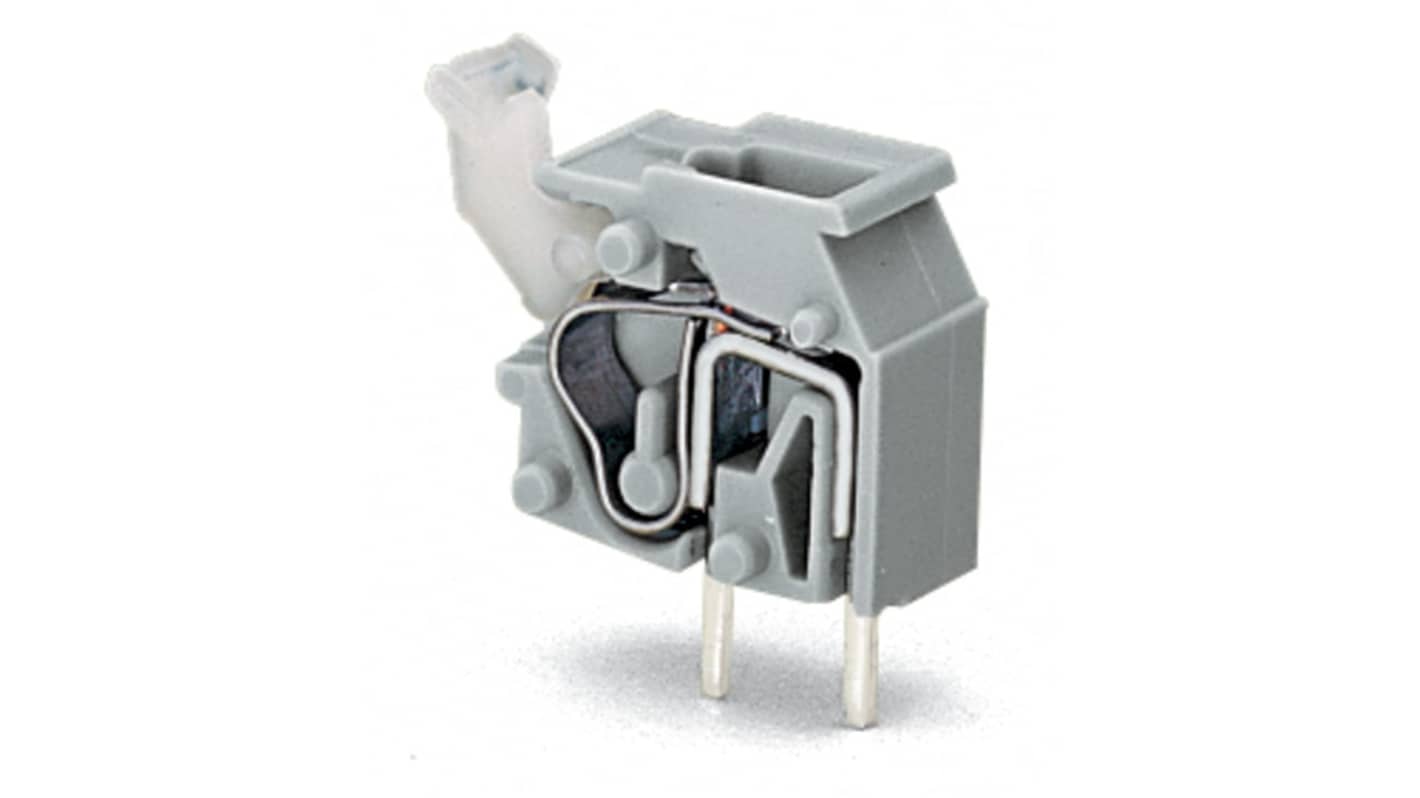

WAGO 255 Series PCB Connector, 1-Contact, 7.62 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 221-385
- Mfr. Part No.:
- 255-757
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£33.33
(exc. VAT)
£40.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £33.33 | £0.333 |
*price indicative
- RS Stock No.:
- 221-385
- Mfr. Part No.:
- 255-757
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 7.62mm | |
| Number of Rows | 2 | |
| Current | 24A | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Wire Connection Method | Cage Clamp | |
| Colour | Light Green | |
| Voltage | 50V | |
| Series | 255 | |
| Width | 10.3mm | |
| Standards/Approvals | No | |
| Depth | 18.3mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 7.62mm | ||
Number of Rows 2 | ||
Current 24A | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Wire Connection Method Cage Clamp | ||
Colour Light Green | ||
Voltage 50V | ||
Series 255 | ||
Width 10.3mm | ||
Standards/Approvals No | ||
Depth 18.3mm | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block is designed for reliability and ease of use in various applications. With its innovative push button actuation and CAGE CLAMP connection technology, this product simplifies field wiring and offers a convenient, tool free operation. Available in a light green colour, it is perfectly suited for straightforward integration into current systems while ensuring secure and efficient connections.
Wide temperature range supports diverse environmental applications
Compliant with multiple certifications ensuring reliability and safety
Variants available to suit specific colour requirements
Tool free operation enhances convenience during installation
