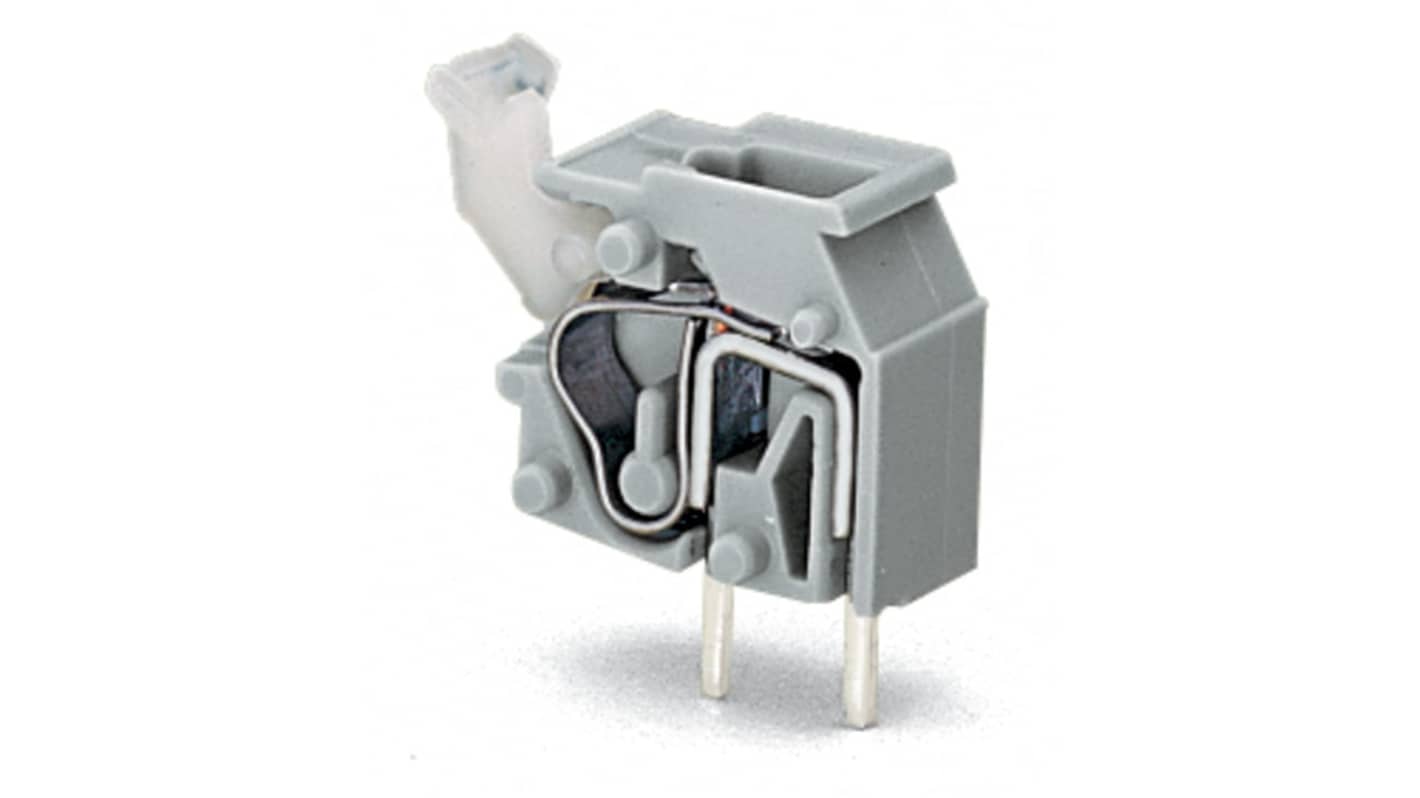

WAGO 255 Series PCB Connector, 1-Contact, 7.62 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-382
- Mfr. Part No.:
- 255-752
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£33.33
(exc. VAT)
£40.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £33.33 | £0.333 |
*price indicative
- RS Stock No.:
- 221-382
- Mfr. Part No.:
- 255-752
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 7.62mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Dark Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 50V | |
| Depth | 18.3mm | |
| Width | 10.3mm | |
| Standards/Approvals | No | |
| Series | 255 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 7.62mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Dark Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 50V | ||
Depth 18.3mm | ||
Width 10.3mm | ||
Standards/Approvals No | ||
Series 255 | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block is designed for efficiency and convenience in field wiring applications. Featuring a robust push button actuation and CAGE CLAMP connection technology, this connector allows for tool free operation, which streamlines installation and reduces downtime. Built with versatility in mind, it enables easy adjustments in pin spacing by compressing or pulling apart the terminal strips, making it an ideal solution for tailored configurations.
Compact design allows for efficient use of space on PCBs
Built to withstand extreme temperatures enhancing reliability
Engineered with advanced materials for superior durability
Compliant with international standards ensuring safety and performance
Provides multiple colour variants for customisation options
Optimised for quick installation reducing overall labour costs
