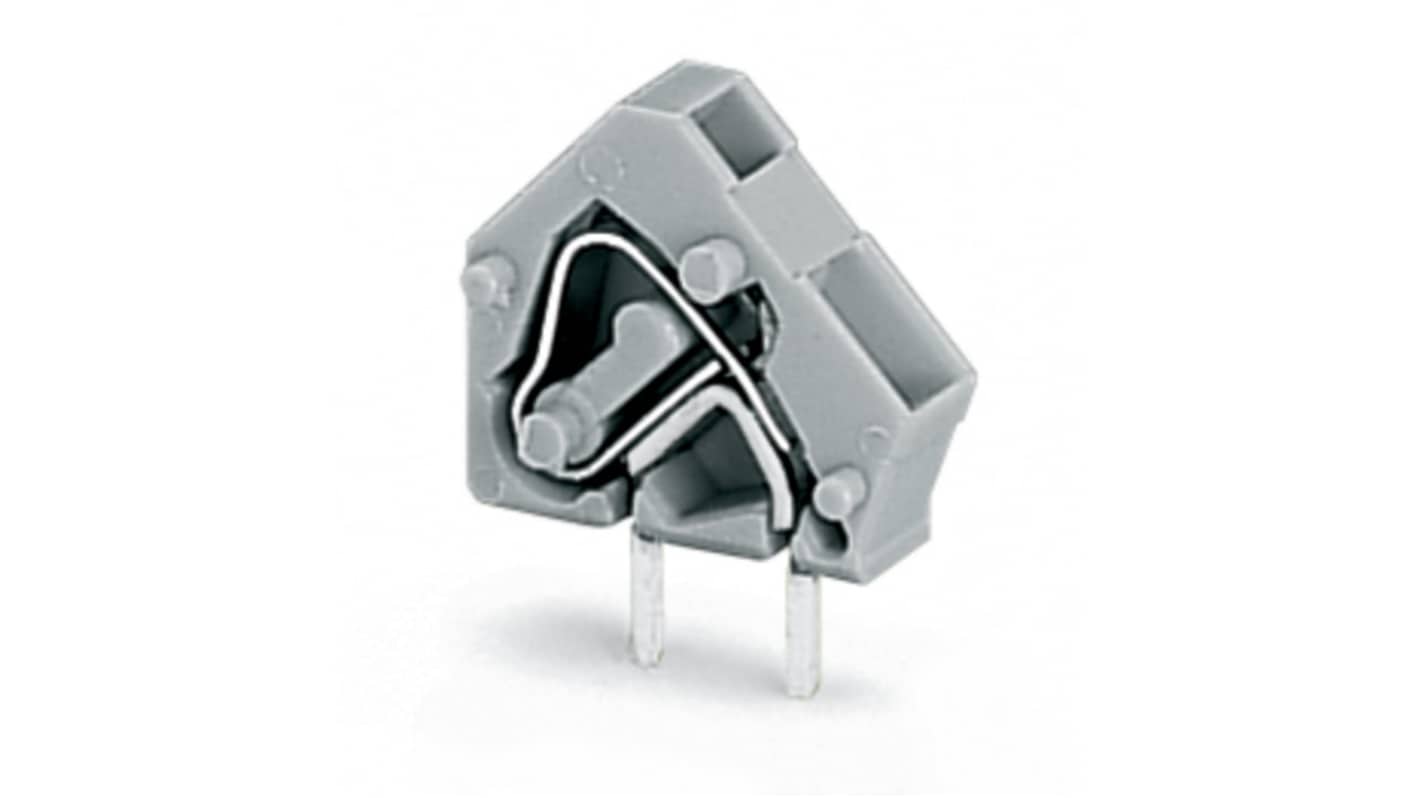

WAGO 236 Series PCB Terminal Block, 1-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-196
- Mfr. Part No.:
- 236-740
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£25.25
(exc. VAT)
£30.30
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £25.25 | £0.253 |
*price indicative
- RS Stock No.:
- 221-196
- Mfr. Part No.:
- 236-740
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Parallel, Perpendicular | |
| Colour | Red | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Depth | 14mm | |
| Series | 236 | |
| Standards/Approvals | No | |
| Width | 7.2mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 24A | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Parallel, Perpendicular | ||
Colour Red | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Depth 14mm | ||
Series 236 | ||
Standards/Approvals No | ||
Width 7.2mm | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block offers a robust and efficient connection solution specifically designed for modular applications. Featuring CAGE CLAMP technology, it allows for easy screwdriver actuation parallel or perpendicular to the conductor entry, providing unparalleled versatility in wiring configurations. Its capacity for a wide variety of conductor sizes ensures compatibility across multiple use cases, making it perfect for custom PCB terminal strip assemblies.
Complies with RoHS regulations for environmentally friendly usage
Available in various colour options for easy identification
Offers options for both insulated and uninsulated ferrules
Dimensions facilitate compatibility with standard PCB designs
Designed for quick and easy assembly with dedicated operating tools
