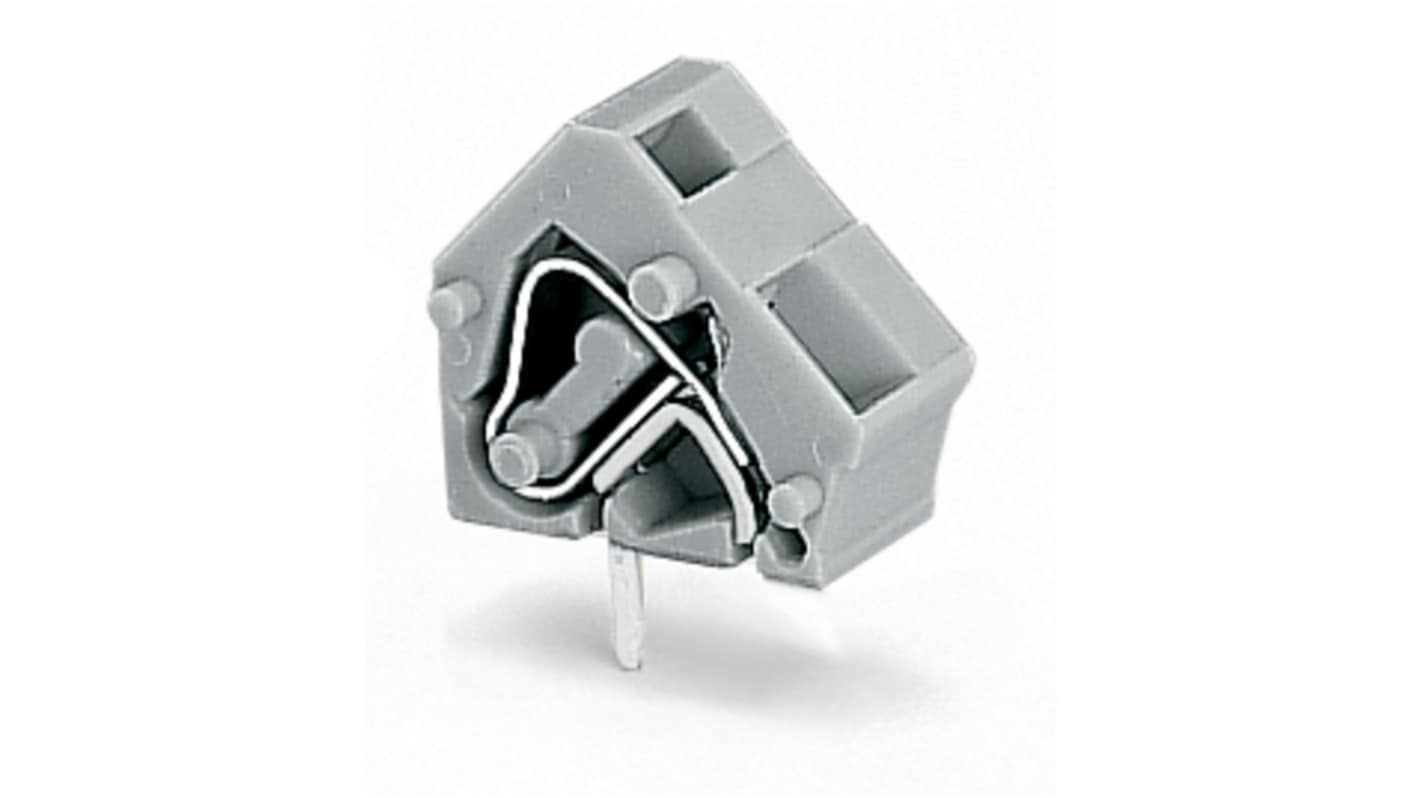

WAGO 236 Series PCB Terminal Block, 1-Contact, 7.62 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-662
- Mfr. Part No.:
- 236-722
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£28.28
(exc. VAT)
£33.94
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £28.28 | £0.283 |
*price indicative
- RS Stock No.:
- 221-662
- Mfr. Part No.:
- 236-722
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 7.62mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Perpendicular, Parallel | |
| Wire Connection Method | Cage Clamp | |
| Colour | Dark Grey | |
| Voltage | 1kV | |
| Width | 9.7mm | |
| Depth | 14mm | |
| Series | 236 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 7.62mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Perpendicular, Parallel | ||
Wire Connection Method Cage Clamp | ||
Colour Dark Grey | ||
Voltage 1kV | ||
Width 9.7mm | ||
Depth 14mm | ||
Series 236 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block represents a sophisticated solution for your printed circuit designs. Designed with a robust CAGE CLAMP connection, this terminal block allows for efficient and reliable wiring with various conductor sizes. Its cleverly engineered pin spacing accommodates both metric and inch requirements, making it versatile for a range of applications.
Constructed from durable polyamide providing excellent insulation properties
Clamping units designed for quick and easy wire insertion
Available in multiple colours for improved visual identification
Supports both solid and fine stranded conductors for flexible wiring options
Operating tools available for convenient installation and maintenance
Limited temperature range capable of withstanding extreme conditions
