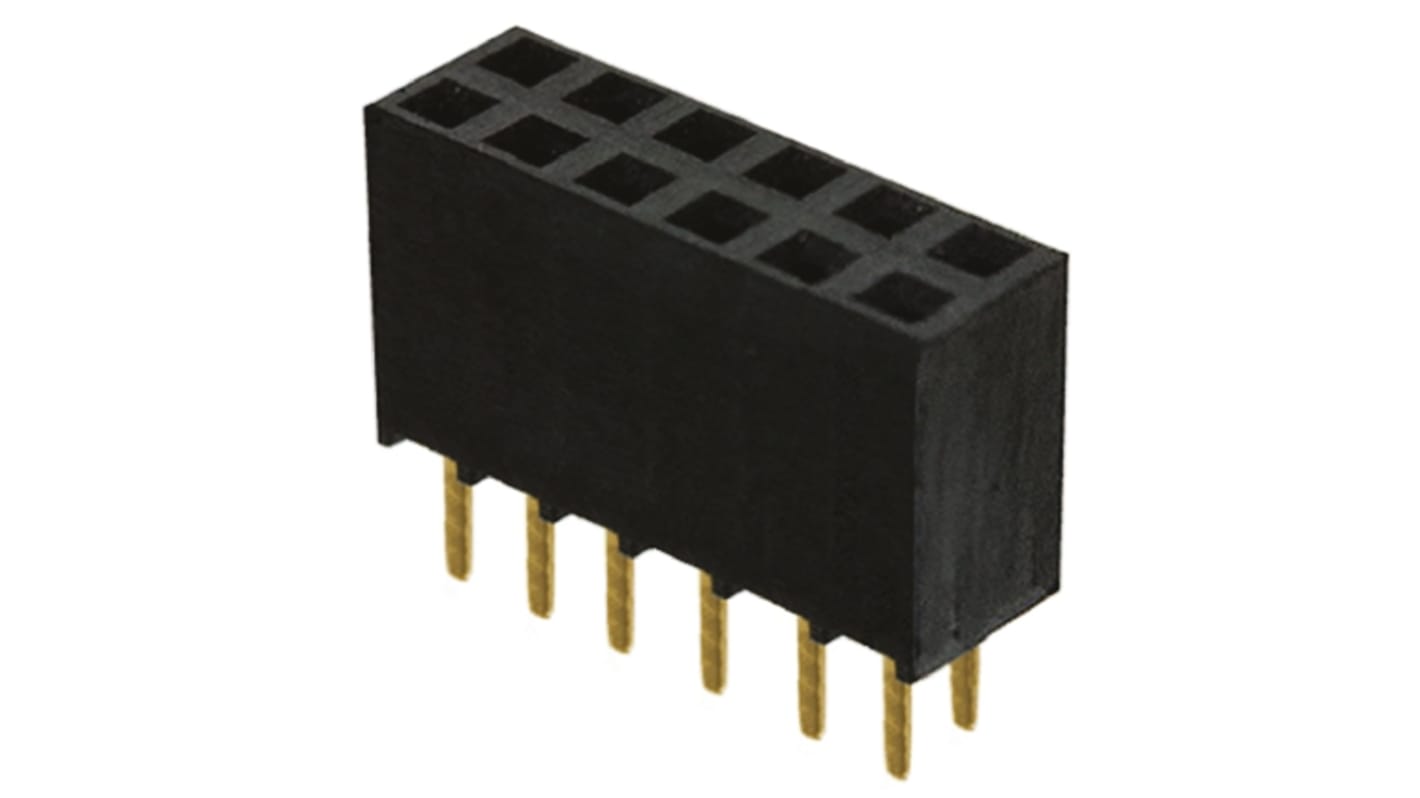

Samtec SSW Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch Solder

RS Stock No.:: 765-5660
Mfr. Part No.:: SSW-106-02-G-D
Brand:: Samtec

Samtec SSW Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch Solder

Bulk discount available

Subtotal (1 unit)*

£2.09

(exc. VAT)

£2.51

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 339 unit(s) shipping from 19 January 2026
Plus 23 unit(s) shipping from 19 January 2026
Plus 47 unit(s) shipping from 17 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 19	£2.09
20 - 74	£1.77
75 - 299	£1.45
300 - 599	£1.33
600 +	£1.27

*price indicative

RS Stock No.:: 765-5660
Mfr. Part No.:: SSW-106-02-G-D
Brand:: Samtec

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Number of Contacts	12
	Product Type	PCB Socket
	Sub Type	Board-to-Board
	Number of Rows	2
	Pitch	2.54mm
	Current	6.9A
	Termination Type	Solder
	Housing Material	Liquid Crystal Polymer
	Mount Type	Through Hole
	Orientation	Straight
	Connector System	Board-to-Board
	Voltage	550 V
	Series	SSW
	Row Pitch	2.5mm
	Minimum Operating Temperature	-55°C
	Contact Material	Bronze
	Contact Gender	Female
	Contact Plating	Gold over Tin
	Maximum Operating Temperature	125°C
	Standards/Approvals	No

	Select all
	Brand Samtec
	Number of Contacts 12
	Product Type PCB Socket
	Sub Type Board-to-Board
	Number of Rows 2
	Pitch 2.54mm
	Current 6.9A
	Termination Type Solder
	Housing Material Liquid Crystal Polymer
	Mount Type Through Hole
	Orientation Straight
	Connector System Board-to-Board
	Voltage 550 V
	Series SSW
	Row Pitch 2.5mm
	Minimum Operating Temperature -55°C
	Contact Material Bronze
	Contact Gender Female
	Contact Plating Gold over Tin
	Maximum Operating Temperature 125°C
	Standards/Approvals No

Samtec SSW Series PCB Socket, Through Hole Mounting, Solder Termination - SSW-106-02-G-D

This PCB socket by Samtec is a reliable and durable component essential in various automation, electronics, electrical, and mechanical industries. With straight body orientation and bronze contacts, it ensures a secure connection for optimal performance. The through hole mounting feature provides easy installation, and the high voltage rating of 550V offers versatility in application.

Features & Benefits

• Straight body orientation for easy integration into circuit boards

• Bronze contact material ensures efficient conductivity and longevity

• Through hole mounting type for secure and stable connection

• 12 contacts spread over 2 rows for increased connectivity options

• Solder termination method simplifies the assembly process

• Ideal for board to board connections in various industrial applications

• Voltage rating of 550V provides safety and reliability for different setups

Applications

• Used for board to board connections in automation systems

• Ideal for electrical control panels in manufacturing processes

• Suitable for power supply units in electronics applications

• Used in test equipment for reliable signal transmission

Can it handle high voltages?

It is designed to support a voltage rating of 550V, ensuring safe operation.

Will it fit different contact arrangements?

It features 12 contacts spread over 2 rows, offering flexibility for various connection setups.

Is it easy to install?

The through hole mounting type makes installation simple and secure.

Can it be used in diverse industrial applications?

Its robust design and reliable performance make it suitable for automation, electronics, and mechanical industries.

Does it ensure a solid connection?

The bronze contact material ensures efficient conductivity and a secure link between components.
