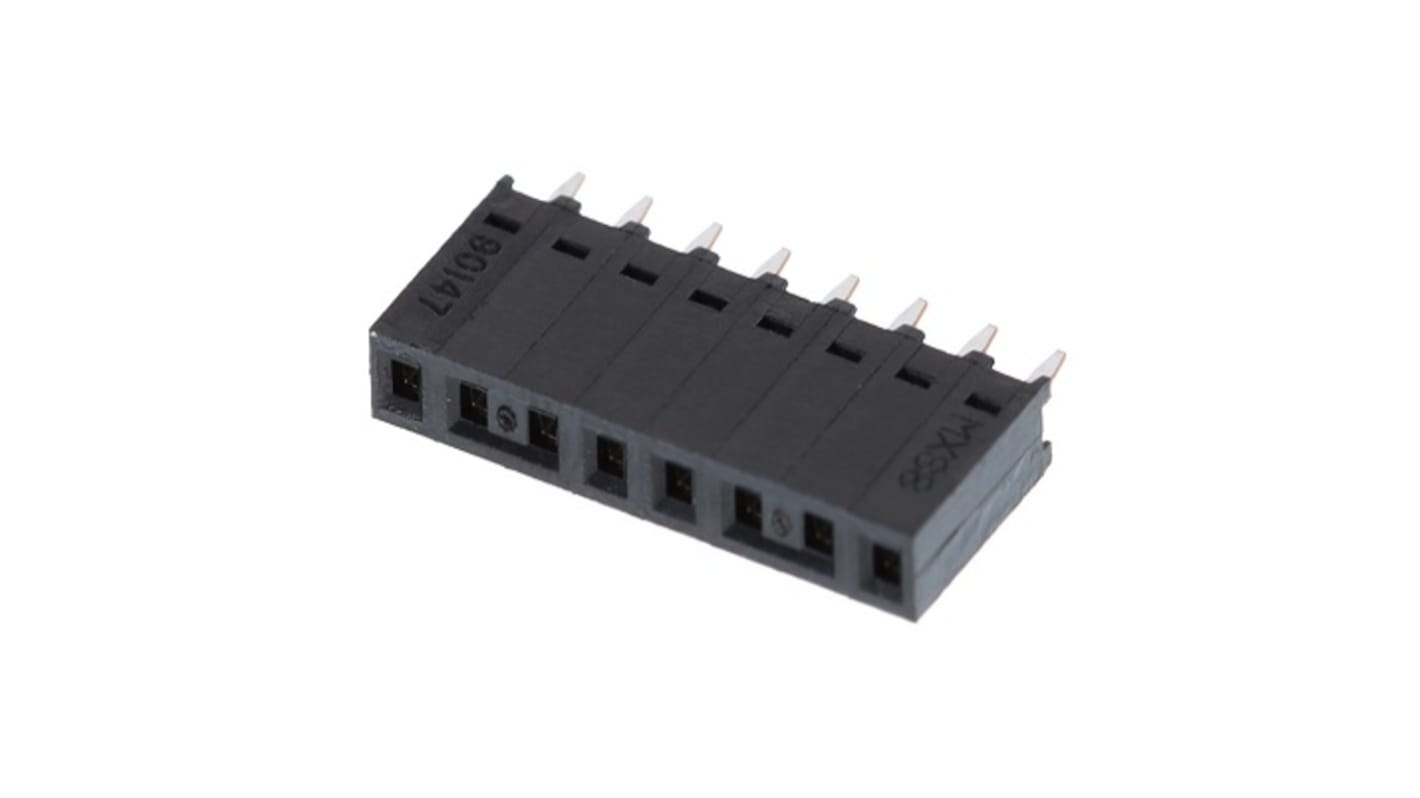

Molex 90147 Series Vertical Surface PCB Socket, 8-Contact, 1 Row, 2.54 mm Pitch Tin
- RS Stock No.:
- 265-9455
- Mfr. Part No.:
- 90147-1108
- Brand:
- Molex
Subtotal (1 tube of 104 units)*
£120.536
(exc. VAT)
£144.664
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 208 unit(s) shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 104 + | £1.159 | £120.54 |
*price indicative
- RS Stock No.:
- 265-9455
- Mfr. Part No.:
- 90147-1108
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 8 | |
| Product Type | PCB Socket | |
| Number of Rows | 1 | |
| Sub Type | Socket | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Termination Type | Tin | |
| Housing Material | Polyester | |
| Mount Type | Surface | |
| Orientation | Vertical | |
| Voltage | 350V | |
| Series | 90147 | |
| Minimum Operating Temperature | -55°C | |
| Contact Plating | Tin | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Phosphor Bronze | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 8 | ||
Product Type PCB Socket | ||
Number of Rows 1 | ||
Sub Type Socket | ||
Current 3A | ||
Pitch 2.54mm | ||
Termination Type Tin | ||
Housing Material Polyester | ||
Mount Type Surface | ||
Orientation Vertical | ||
Voltage 350V | ||
Series 90147 | ||
Minimum Operating Temperature -55°C | ||
Contact Plating Tin | ||
Maximum Operating Temperature 105°C | ||
Contact Material Phosphor Bronze | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
- COO (Country of Origin):
- ID
The Molex SL Header made up of polyester material with tin plating. Product is vertically oriented and placed in single row. It is available in black color and has tube type of packaging.
Net weight 0.693/g
Operating temperature range -40° to +105°C
Through hole termination interface style
