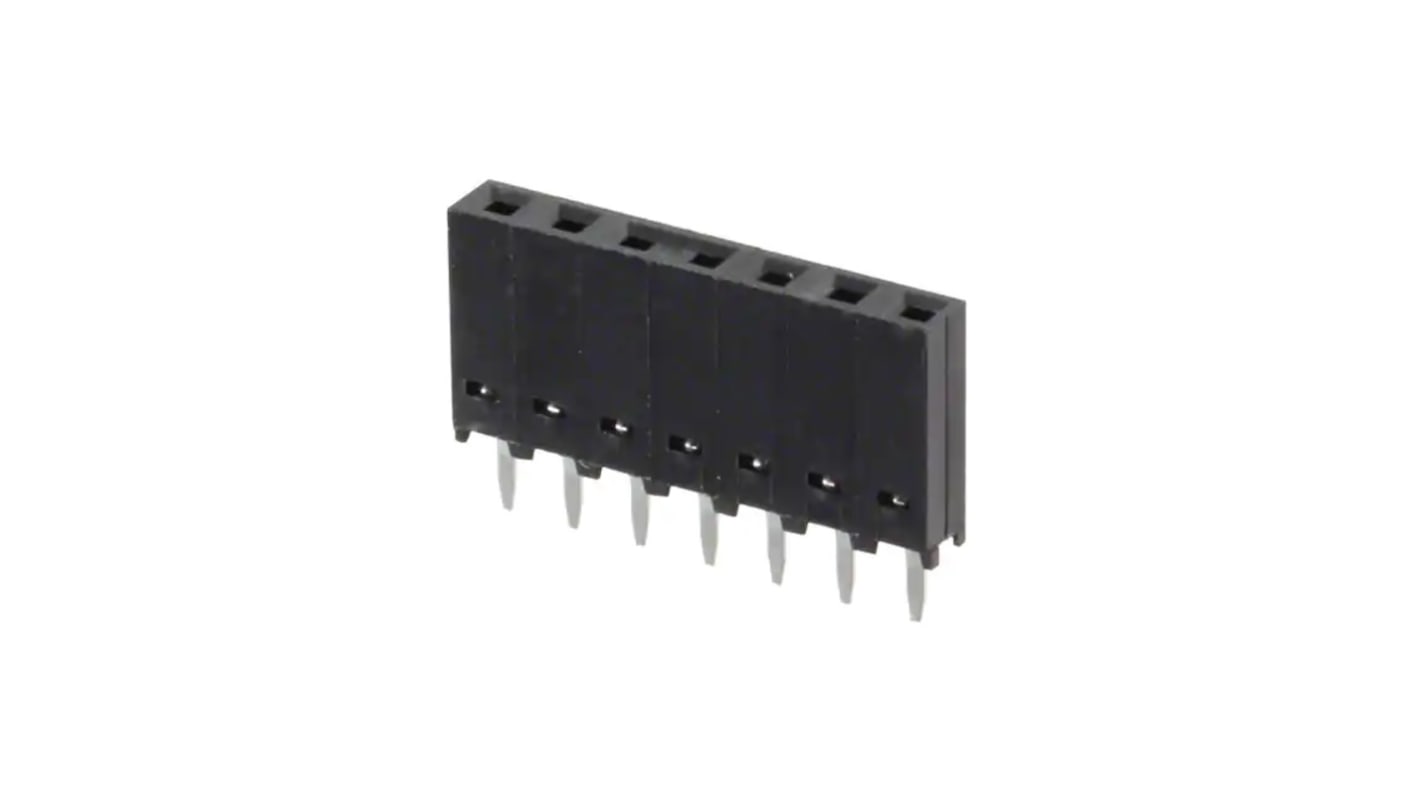

Molex 90147 Series Vertical Through Hole PCB Connector, 7-Contact, 1 Row, 2.54 mm Pitch Solder
- RS Stock No.:
- 213-4866
- Mfr. Part No.:
- 901471107
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£8.60
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 70 left, shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.72 | £8.60 |
| 25 - 45 | £1.59 | £7.95 |
| 50 - 95 | £1.478 | £7.39 |
| 100 - 1195 | £1.322 | £6.61 |
| 1200 + | £1.222 | £6.11 |
*price indicative
- RS Stock No.:
- 213-4866
- Mfr. Part No.:
- 901471107
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Connector | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Sub Type | Receptacle | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Polyester | |
| Termination Type | Solder | |
| Mount Type | Through Hole | |
| Orientation | Vertical | |
| Connector System | Board-to-Board, Signal | |
| Voltage | 350V | |
| Series | 90147 | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Connector | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Sub Type Receptacle | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Polyester | ||
Termination Type Solder | ||
Mount Type Through Hole | ||
Orientation Vertical | ||
Connector System Board-to-Board, Signal | ||
Voltage 350V | ||
Series 90147 | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ID
The Molex PCB Connector
comes with a Vertical body orientation and 7 number of contacts.
1 number of rows
2.54mm pitch
