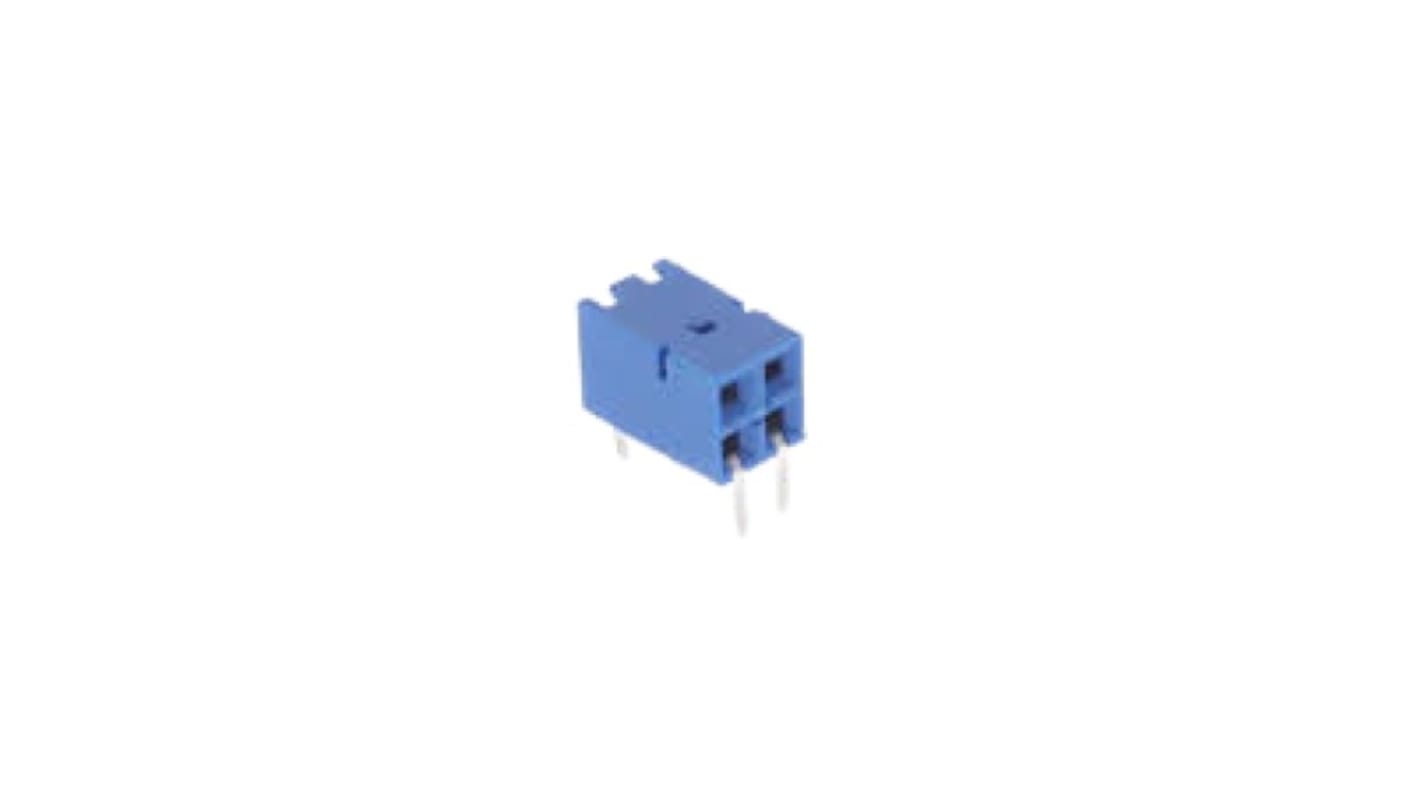

Amphenol Communications Solutions Surface Mount PCB Socket, 6-Contact, 2-Row, 2.54mm Pitch
- RS Stock No.:
- 246-3069
- Mfr. Part No.:
- 89883-303LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 pack of 10 units)*
£9.16
(exc. VAT)
£10.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 460 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.916 | £9.16 |
| 50 + | £0.85 | £8.50 |
*price indicative
- RS Stock No.:
- 246-3069
- Mfr. Part No.:
- 89883-303LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Type | Socket Strip | |
| Mounting Type | Surface Mount | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Type Socket Strip | ||
Mounting Type Surface Mount | ||
- COO (Country of Origin):
- FR
The Amphenol ICC Dubox contact has a pre-stressed, dual beam design to enable low insertion force which has 3A DC maximum per individual contact and 2A DC maximum per contact for fully energized connector.
Floating solder tails self-centre on circuit pads and assure co-planarity
4-wall contact design for signal protection
Dielectric withstanding voltage up to 1000V RMS
Operating temperature range from -65 °C to +125 °C
Current rating up to 3A
4-wall contact design for signal protection
Dielectric withstanding voltage up to 1000V RMS
Operating temperature range from -65 °C to +125 °C
Current rating up to 3A
