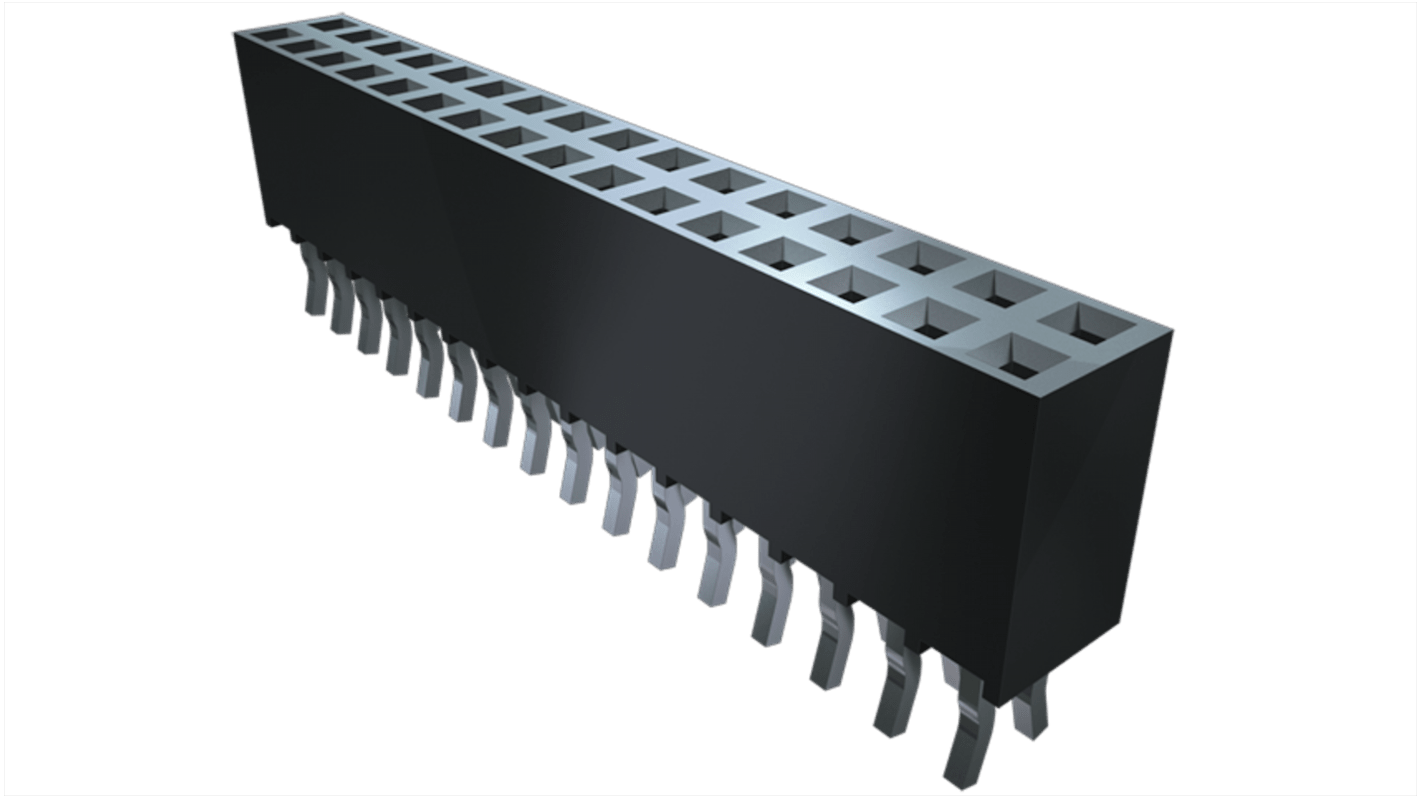

Samtec SSQ Series Straight Through Hole Mount PCB Socket, 100-Contact, 2-Row, 2.54mm Pitch, Solder Termination

RS Stock No.:: 226-3290
Mfr. Part No.:: SSQ-150-01-F-D
Brand:: Samtec

Samtec SSQ Series Straight Through Hole Mount PCB Socket, 100-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Available to back order for despatch 22/07/2024

Price Each

£7.17

(exc. VAT)

£8.60

(inc. VAT)

Units	Per unit
1 - 9	£7.17
10 - 99	£6.69
100 - 199	£6.27
200 +	£6.02

RS Stock No.:: 226-3290
Mfr. Part No.:: SSQ-150-01-F-D
Brand:: Samtec

Technical Reference

Datasheet - SSQ-150-01-F-D

Legislation and Compliance

Product Details

The Samtec SSQ series printed circuit board socket strips has 2.54 mm pitch. The high retention, cost-effective tiger buy contact are made from phosphor bronze with 0.51 μm gold plating on the contact. It is available in surface mount and through-hole mounting options. It features a square pin for through-hole applications. These versatile sockets are ideal for new designs and retrofit applications.

Available in single and double row configurations
Standard and low insertion force contacts with standard solder tails
Straight or right-angle orientation

Specifications

Attribute	Value
Number of Contacts	100
Number of Rows	2
Pitch	2.54mm
Type	Socket Strip
Mounting Type	Through Hole
Body Orientation	Straight
Termination Method	Solder
Series	SSQ
Series Number	SSQ-150
