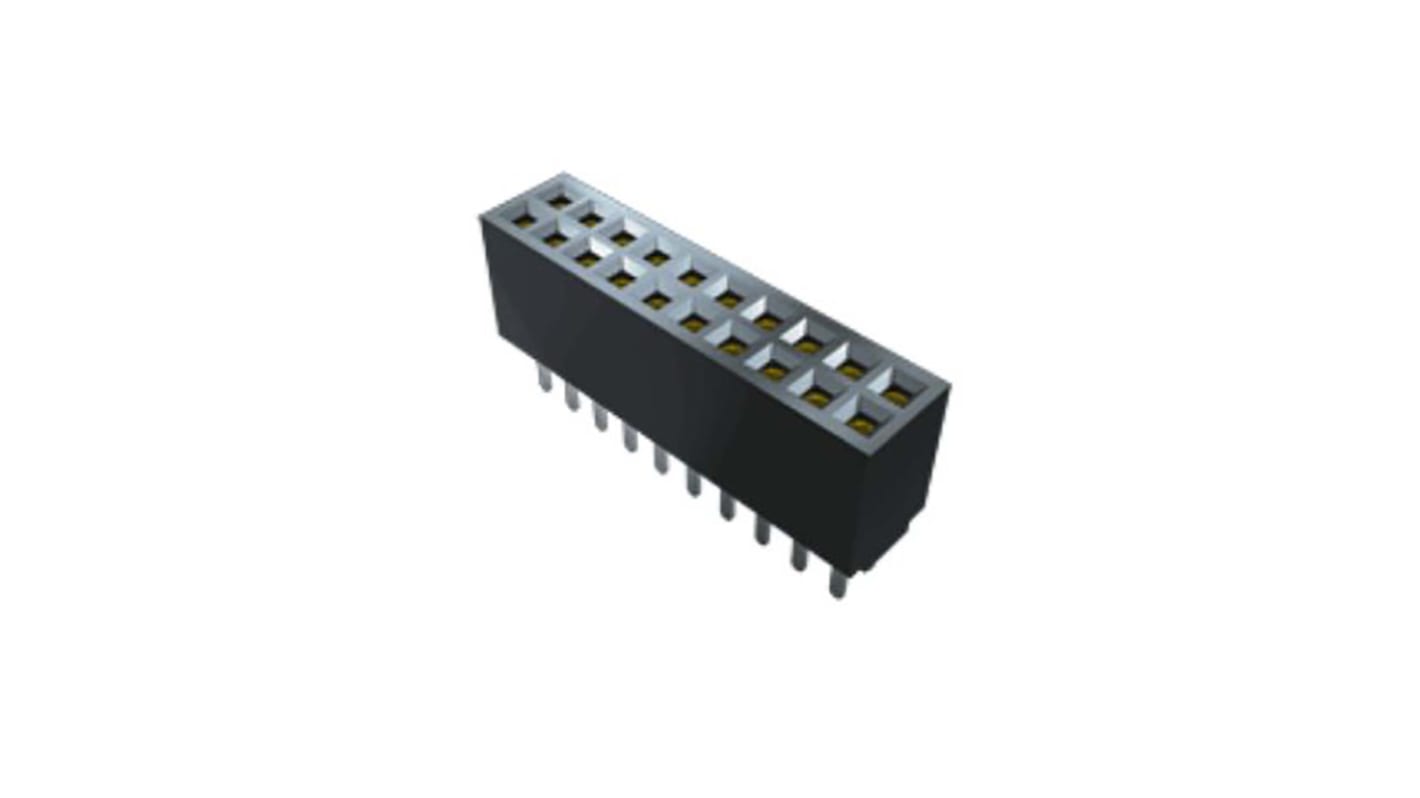

Samtec SFMC Series Straight Surface Mount PCB Socket, 10-Contact, 2-Row, 1.27mm Pitch, Through Hole Termination
- RS Stock No.:
- 208-9371
- Mfr. Part No.:
- SFMC-105-02-L-D
- Brand:
- Samtec
18 In stock - FREE next working day delivery available
Price Each (In a Tube of 85)
£2.519
(exc. VAT)
£3.023
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 85 - 340 | £2.519 | £214.115 |
| 425 - 765 | £2.342 | £199.07 |
| 850 + | £2.224 | £189.04 |
*price indicative
- RS Stock No.:
- 208-9371
- Mfr. Part No.:
- SFMC-105-02-L-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec SFM series is high-reliability Tiger Eye socket strip has 1.27 mm pitch, dual row, through hole and surface mount socket strip with a 0.25 μm gold plated contact and tin plated tail. It has 10 contact which has 2.9 A of current per pin.
Operating temperature -55 to 125° C
8 Gbps performance
Voltage rating 250 VAC
Lower cost plating option
8 Gbps performance
Voltage rating 250 VAC
Lower cost plating option
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Type | High-Reliability Flexible Pin Count Socket Strip |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Through Hole |
| Series | SFMC |
