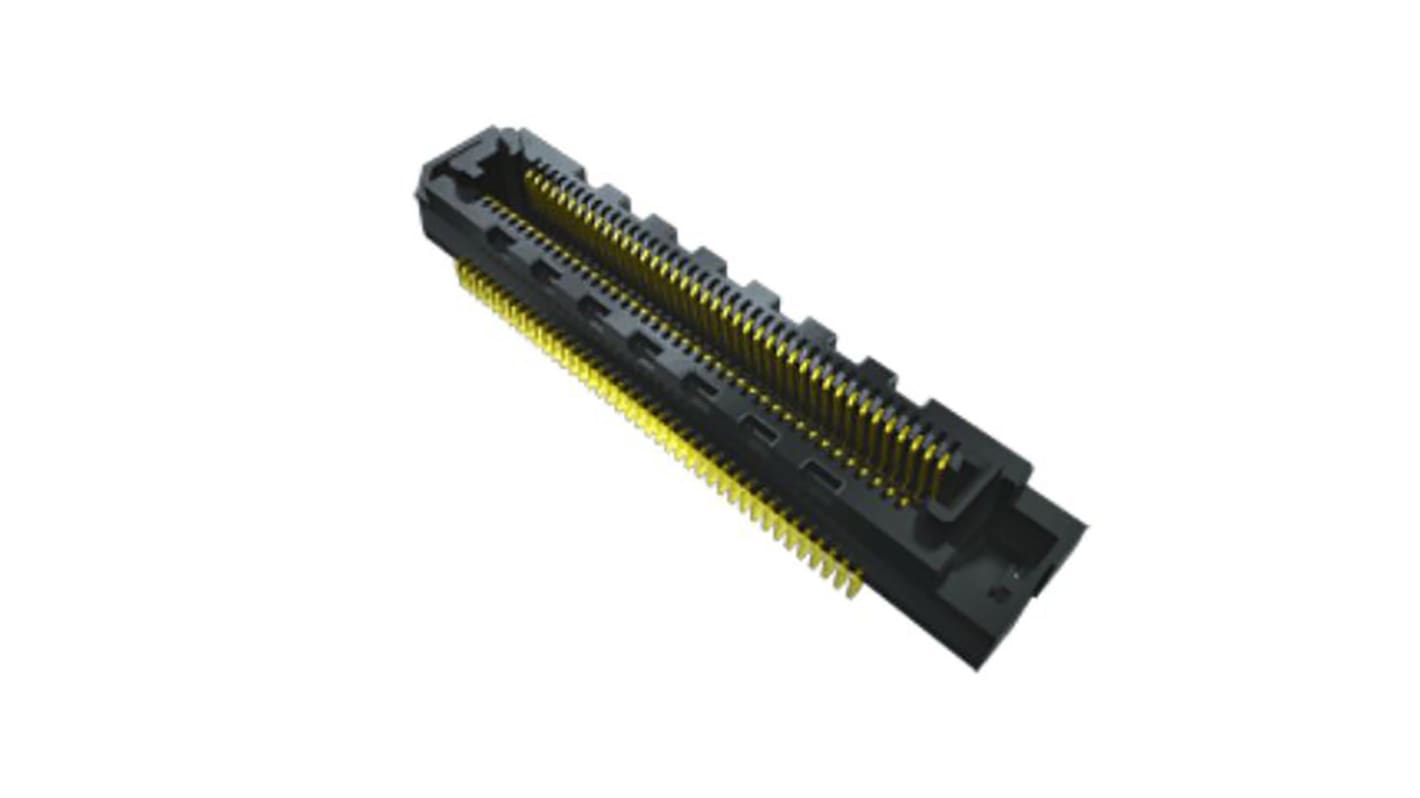

Samtec SS4 Series Straight Surface Mount PCB Socket, 30-Contact, 2-Row, 0.5mm Pitch, Solder Termination
- RS Stock No.:
- 208-1673
- Mfr. Part No.:
- SS4-15-3.00-L-D-K-TR
- Brand:
- Samtec
Available to back order for despatch 21/05/2024
Added
Price Each (On a Tape of 2)
£3.01
(exc. VAT)
£3.61
(inc. VAT)
| Units | Per unit | Per Tape* |
| 2 - 8 | £3.01 | £6.02 |
| 10 - 48 | £2.81 | £5.62 |
| 50 - 198 | £2.575 | £5.15 |
| 200 + | £2.43 | £4.86 |
| *price indicative | ||
- RS Stock No.:
- 208-1673
- Mfr. Part No.:
- SS4-15-3.00-L-D-K-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec 0.40 mm micro blade & beam low-profile socket is designed for board-to-board connection where space is at a premium. The SS5 provides up to 56 Gbps PAM4 performance and has 30 position which has 1.6 A of current per pin.
Operating temperature range -55 °C to +125 °C
Compatible with mPOWER for power/signal flexibility.
Compatible with mPOWER for power/signal flexibility.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 30 |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Type | Micro Blade & Beam Socket |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Series | SS4 |
