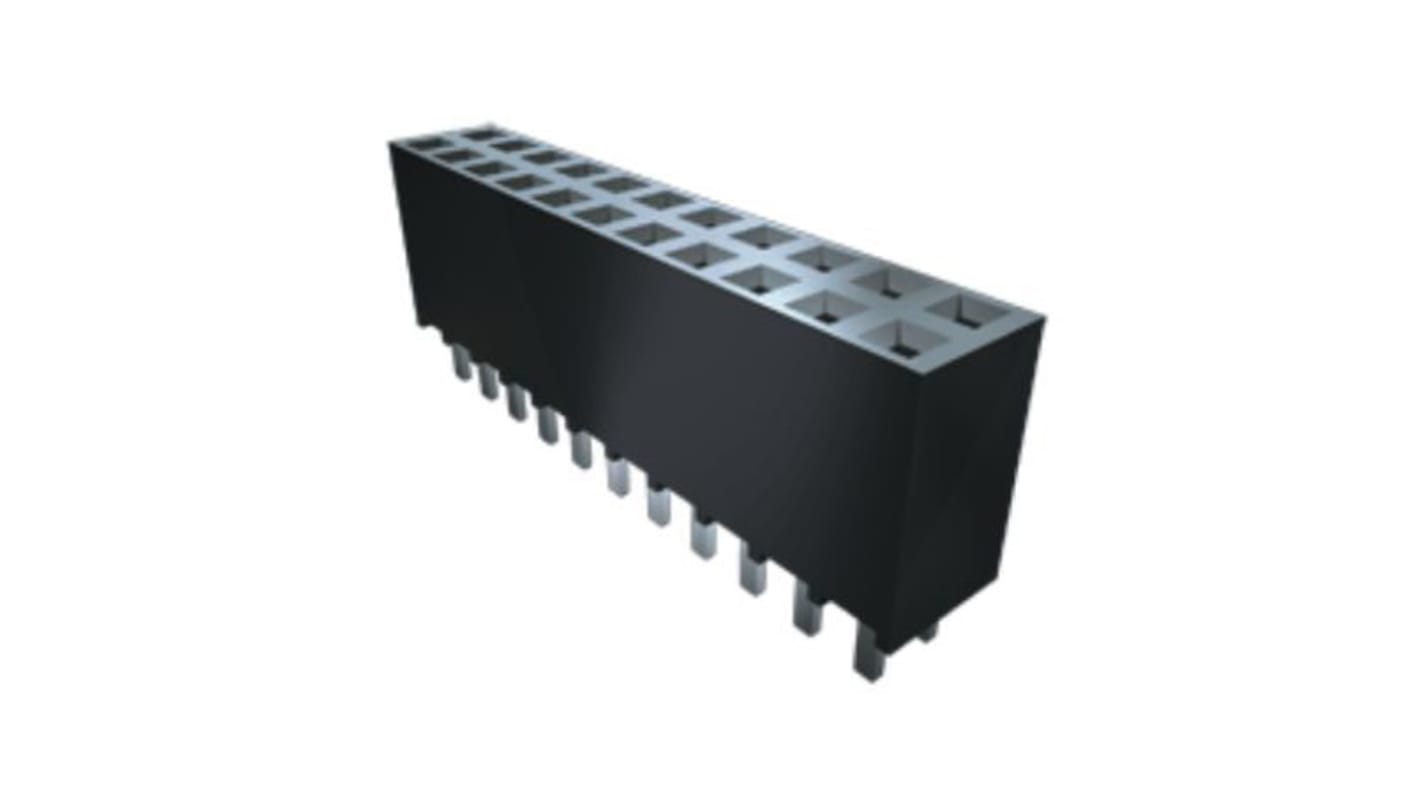

Samtec SSW Series Straight Through Hole Mount PCB Socket, 12-Contact, 2-Row, 2.54mm Pitch, Solder Termination
- RS Stock No.:
- 207-9151
- Mfr. Part No.:
- SSW-106-22-F-D-VS-K-TR
- Brand:
- Samtec
Available to back order for despatch 29/07/2024
Price Each (On a Tape of 2)
£2.41
(exc. VAT)
£2.89
(inc. VAT)
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 8 | £2.41 | £4.82 |
| 10 - 48 | £2.25 | £4.50 |
| 50 - 98 | £2.065 | £4.13 |
| 100 + | £1.945 | £3.89 |
*price indicative
- RS Stock No.:
- 207-9151
- Mfr. Part No.:
- SSW-106-22-F-D-VS-K-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec SSQ series PCB through hole board-to-board has solder tailed socket strip with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contact. It has 12 contact with current rating 4.7 A per pin.
Standard and low insertion force contact with standard solder tail
Voltage rating 465 VAC / 655 VDC
Voltage rating 465 VAC / 655 VDC
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 12 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Type | Socket Strip |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Series | SSW |
