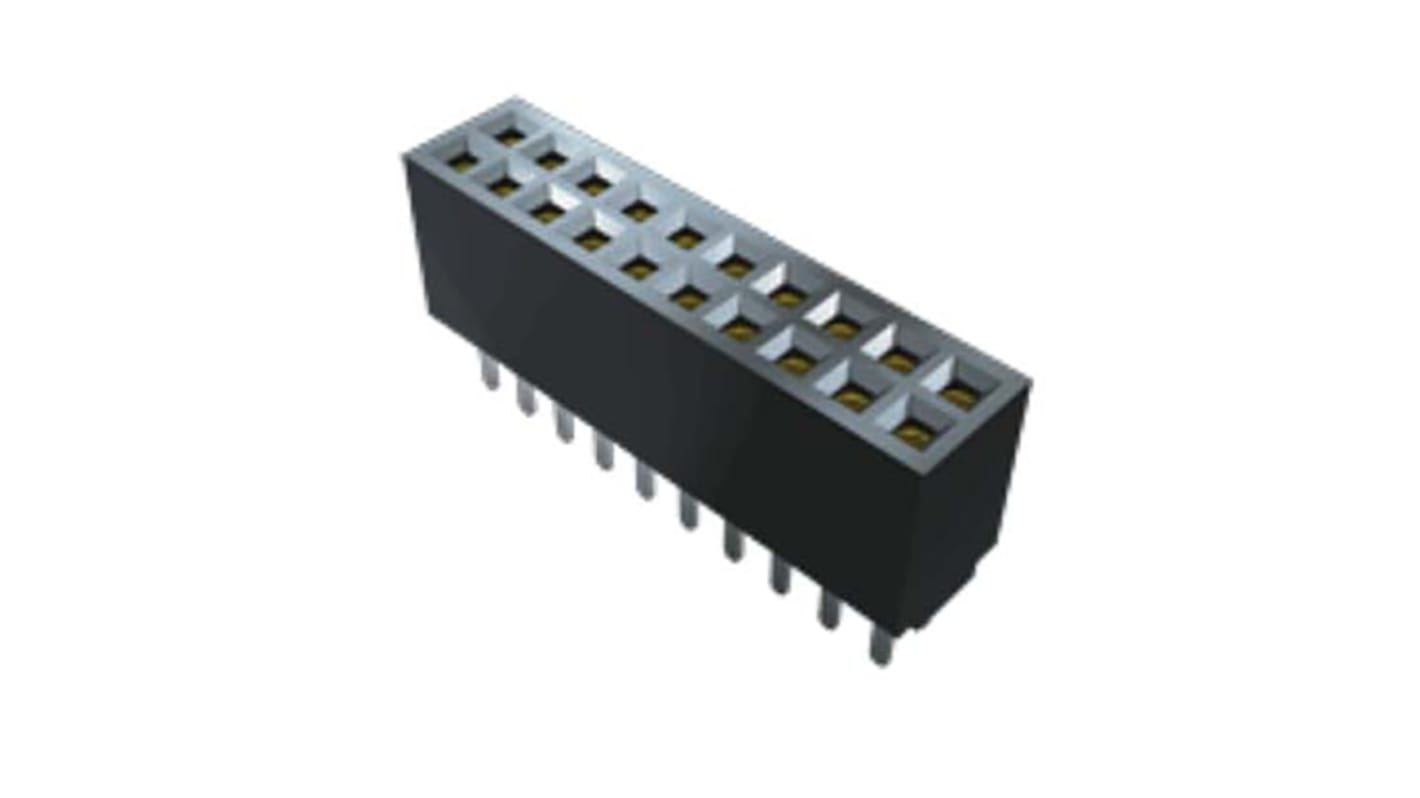

Samtec SFMC Series Straight Surface Mount PCB Socket, 20-Contact, 2-Row, 1.27mm Pitch, Through Hole Termination
- RS Stock No.:
- 200-2106
- Mfr. Part No.:
- SFMC-110-01-S-D
- Brand:
- Samtec
Save 23% when you buy 440 units
Subtotal (1 tube of 44 units)*
£230.12
(exc. VAT)
£276.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
44 - 44 | £5.23 | £230.12 |
88 - 176 | £4.922 | £216.57 |
220 - 396 | £4.315 | £189.86 |
440 + | £4.006 | £176.26 |
*price indicative
- RS Stock No.:
- 200-2106
- Mfr. Part No.:
- SFMC-110-01-S-D
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Number of Contacts | 20 | |
Number of Rows | 2 | |
Pitch | 1.27mm | |
Type | Flexible Pin Count Socket Strip | |
Mounting Type | Surface Mount | |
Body Orientation | Straight | |
Termination Method | Through Hole | |
Series | SFMC | |
Select all | ||
---|---|---|
Brand Samtec | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Type Flexible Pin Count Socket Strip | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method Through Hole | ||
Series SFMC | ||
The Samtec SFMC series flexible pin count socket strip is a 20 pin connector. It has a pole pitch of 1.27 mm. The Insulation material used is of black liquid crystal polymer and material used for contacts is of BeCu.
Plating used is of Au or Sn over 50 μ" (1.27 μm) Ni
Operating temperature is between -55 °C to +125 °C
Current rating is 2.9A per pin (2 pins powered)
It is RoHS compliant
Operating temperature is between -55 °C to +125 °C
Current rating is 2.9A per pin (2 pins powered)
It is RoHS compliant
