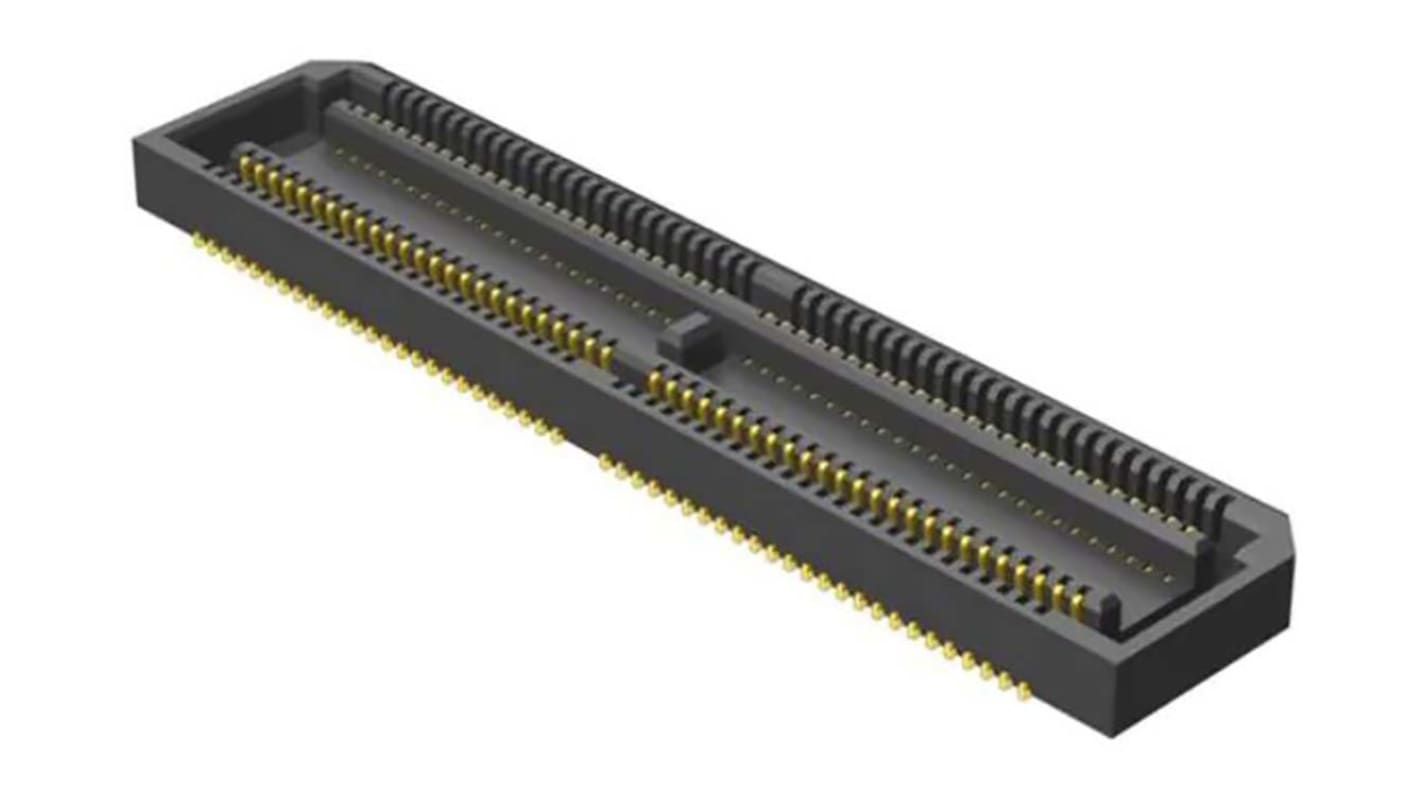

Samtec LSH Series Straight Surface PCB Socket, 100-Contact, 2 Row, 0.55 mm Pitch Solder
- RS Stock No.:
- 200-0299
- Mfr. Part No.:
- LSH-050-01-G-D-A
- Brand:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 19 units)*
£222.186
(exc. VAT)
£266.627
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 19 - 19 | £11.694 | £222.19 |
| 38 - 76 | £11.074 | £210.41 |
| 95 - 171 | £10.629 | £201.95 |
| 190 + | £9.881 | £187.74 |
*price indicative
- RS Stock No.:
- 200-0299
- Mfr. Part No.:
- LSH-050-01-G-D-A
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 100 | |
| Product Type | PCB Socket | |
| Sub Type | Blade and Beam | |
| Number of Rows | 2 | |
| Pitch | 0.55mm | |
| Current | 2.6A | |
| Housing Material | Liquid Crystal Polymer | |
| Termination Type | Solder | |
| Mount Type | Surface | |
| Orientation | Straight | |
| Connector System | Board-to-Board | |
| Series | LSH | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 100 | ||
Product Type PCB Socket | ||
Sub Type Blade and Beam | ||
Number of Rows 2 | ||
Pitch 0.55mm | ||
Current 2.6A | ||
Housing Material Liquid Crystal Polymer | ||
Termination Type Solder | ||
Mount Type Surface | ||
Orientation Straight | ||
Connector System Board-to-Board | ||
Series LSH | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Standards/Approvals RoHS | ||
2
The Samtec LSH series is low profile PCB socket.
Standard alignment pin feature
Five standard positions, up to 100 i/o pins
