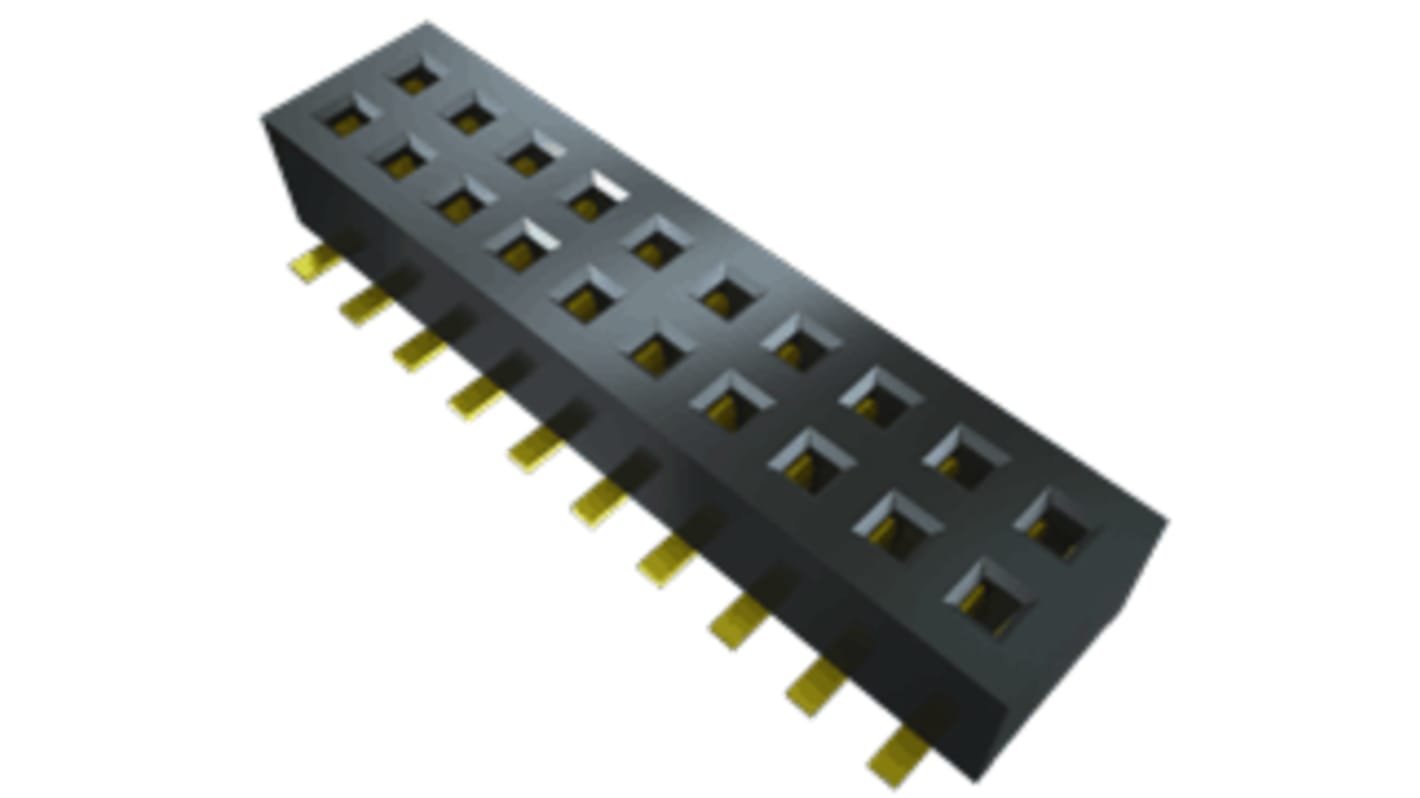

Samtec CLP Series Straight Surface Mount PCB Socket, 28-Contact, 2-Row, 1.27mm Pitch, Solder Termination

RS Stock No.:: 196-6560
Mfr. Part No.:: CLP-114-02-F-D
Brand:: Samtec

Samtec CLP Series Straight Surface Mount PCB Socket, 28-Contact, 2-Row, 1.27mm Pitch, Solder Termination

Available to back order for despatch 28/05/2024

Added

Price Each (In a Pack of 2)

£4.245

(exc. VAT)

£5.094

(inc. VAT)

Units	Per unit	Per Pack*
2 +	£4.245	£8.49
*price indicative

RS Stock No.:: 196-6560
Mfr. Part No.:: CLP-114-02-F-D
Brand:: Samtec

Technical Reference

Datasheet - 118

Legislation and Compliance

Product Details

The Samtec CLP series is a 1.27mm Tiger Claw rugged reliable dual wipe socket strip with 28 contact points.

Insulation material made up of black liquid crystal polymer
Contact material made up of Phosphor Bronze
3.4A per pin current rating
Operating Temperature Range -55°C to +125°C

Specifications

Attribute	Value
Number of Contacts	28
Number of Rows	2
Pitch	1.27mm
Type	Board to Board
Mounting Type	Surface Mount
Body Orientation	Straight
Termination Method	Solder
Series	CLP
