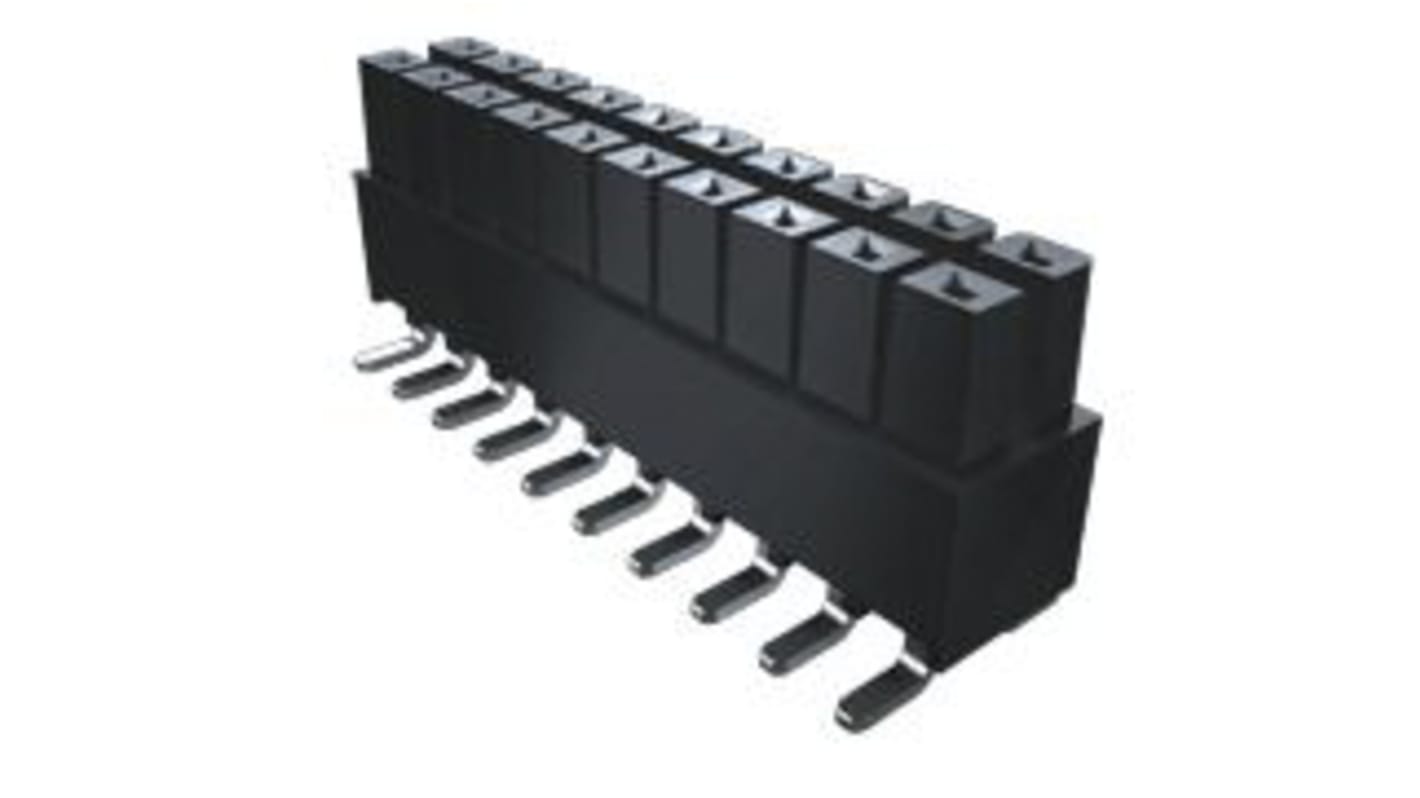

Samtec IPS1 Series Straight Through Hole Mount PCB Socket, 30-Contact, 2-Row, 2.54mm Pitch, Solder Termination
- RS Stock No.:
- 180-0556
- Mfr. Part No.:
- IPS1-115-01-S-D
- Brand:
- Samtec
Available to back order for despatch when stock is available
Price Each (In a Pack of 1000)
£3.734
(exc. VAT)
£4.481
(inc. VAT)
| Units | Per unit | Per Pack* |
| 1000 + | £3.734 | £3,734.00 |
| *price indicative | ||
- RS Stock No.:
- 180-0556
- Mfr. Part No.:
- IPS1-115-01-S-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
.100" (2.54 mm) pitch
Current rating to 4.8A @ 95°C
Double row
Individually shrouded contacts
Optional locking clip
Vertical through-hole and surface mount, right-angle through-hole
Current rating to 4.8A @ 95°C
Double row
Individually shrouded contacts
Optional locking clip
Vertical through-hole and surface mount, right-angle through-hole
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 30 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Type | Isolated Power Connector Socket Strip |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Voltage Rating | 1.095 kV , 775 V |
| Series | IPS1 |
| Contact Material | Bronze |
