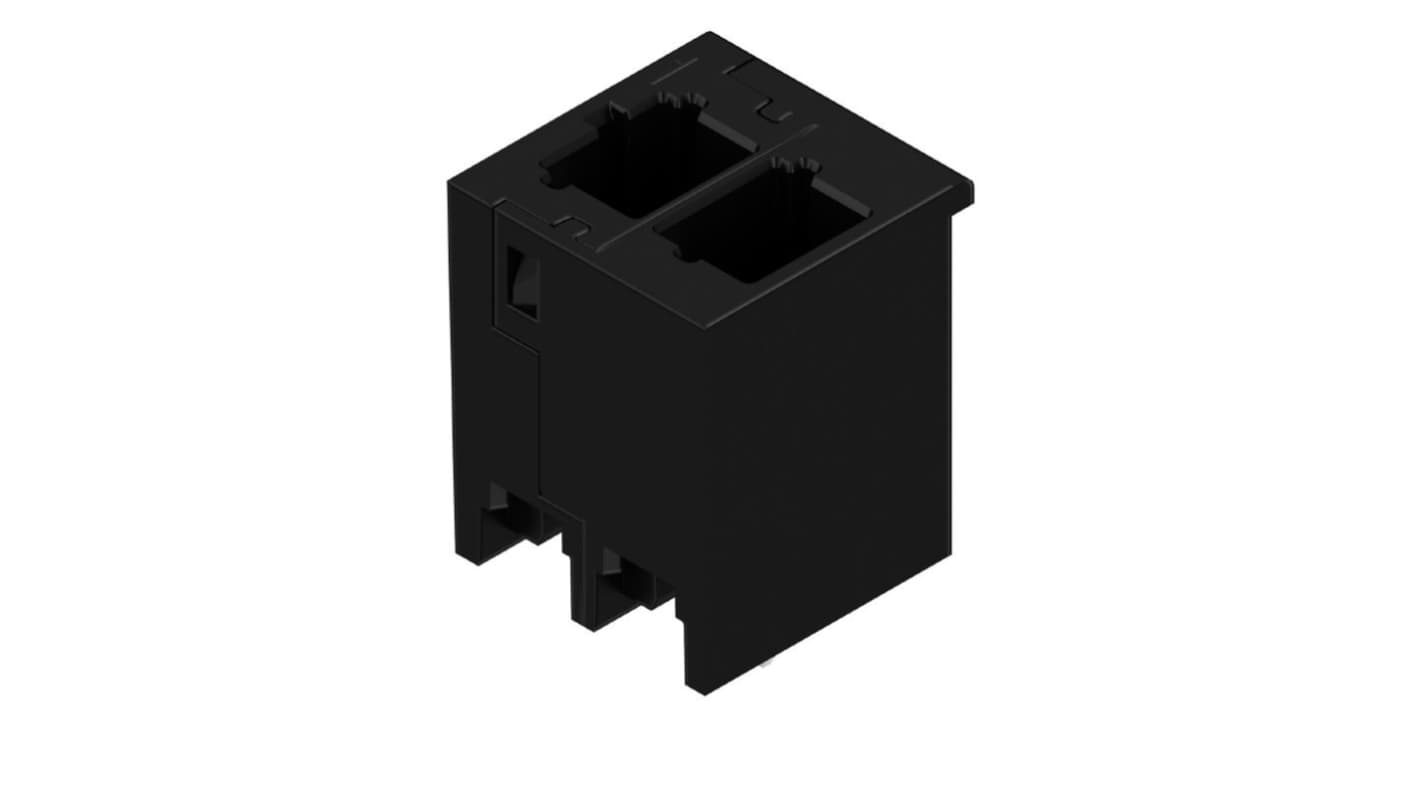

Weidmüller 8000072425 Series Straight PCB Socket, 2-Contact, 1 Row, 5 mm Pitch Push-in
- RS Stock No.:
- 688-064
- Mfr. Part No.:
- 8000072425
- Brand:
- Weidmüller
Subtotal (1 unit)*
£46.20
(exc. VAT)
£55.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.20 |
*price indicative
- RS Stock No.:
- 688-064
- Mfr. Part No.:
- 8000072425
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | PCB Socket | |
| Number of Contacts | 2 | |
| Sub Type | PCB Plug-In Connector | |
| Number of Rows | 1 | |
| Pitch | 5mm | |
| Current | 25.3A | |
| Housing Material | Polyamide 9T | |
| Termination Type | Push-in | |
| Orientation | Straight | |
| Voltage | 40 V | |
| Series | 8000072425 | |
| Row Pitch | 5mm | |
| Minimum Operating Temperature | 50°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Contact Plating | Tinned | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | DIN VDE 0470, DIN VDE 57 106, IEC 60664-1, IEC 61984, UL 1059 | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type PCB Socket | ||
Number of Contacts 2 | ||
Sub Type PCB Plug-In Connector | ||
Number of Rows 1 | ||
Pitch 5mm | ||
Current 25.3A | ||
Housing Material Polyamide 9T | ||
Termination Type Push-in | ||
Orientation Straight | ||
Voltage 40 V | ||
Series 8000072425 | ||
Row Pitch 5mm | ||
Minimum Operating Temperature 50°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Contact Plating Tinned | ||
Contact Material Copper Alloy | ||
Standards/Approvals DIN VDE 0470, DIN VDE 57 106, IEC 60664-1, IEC 61984, UL 1059 | ||
- COO (Country of Origin):
- DE
The Weidmuller PCB plug-in connector is a 2 pole male header with a 5.00 mm pitch, designed for THT/THR solder connections. Featuring a 180° orientation, it comes packaged in a tube for easy handling and storage, Ideal for reliable electronic board assembly.
Ready for Robot through wire ready delivery with open clamping point
Optical and acoustic feedback indicates proper wiring
Future proof Single Pair Ethernet technology
