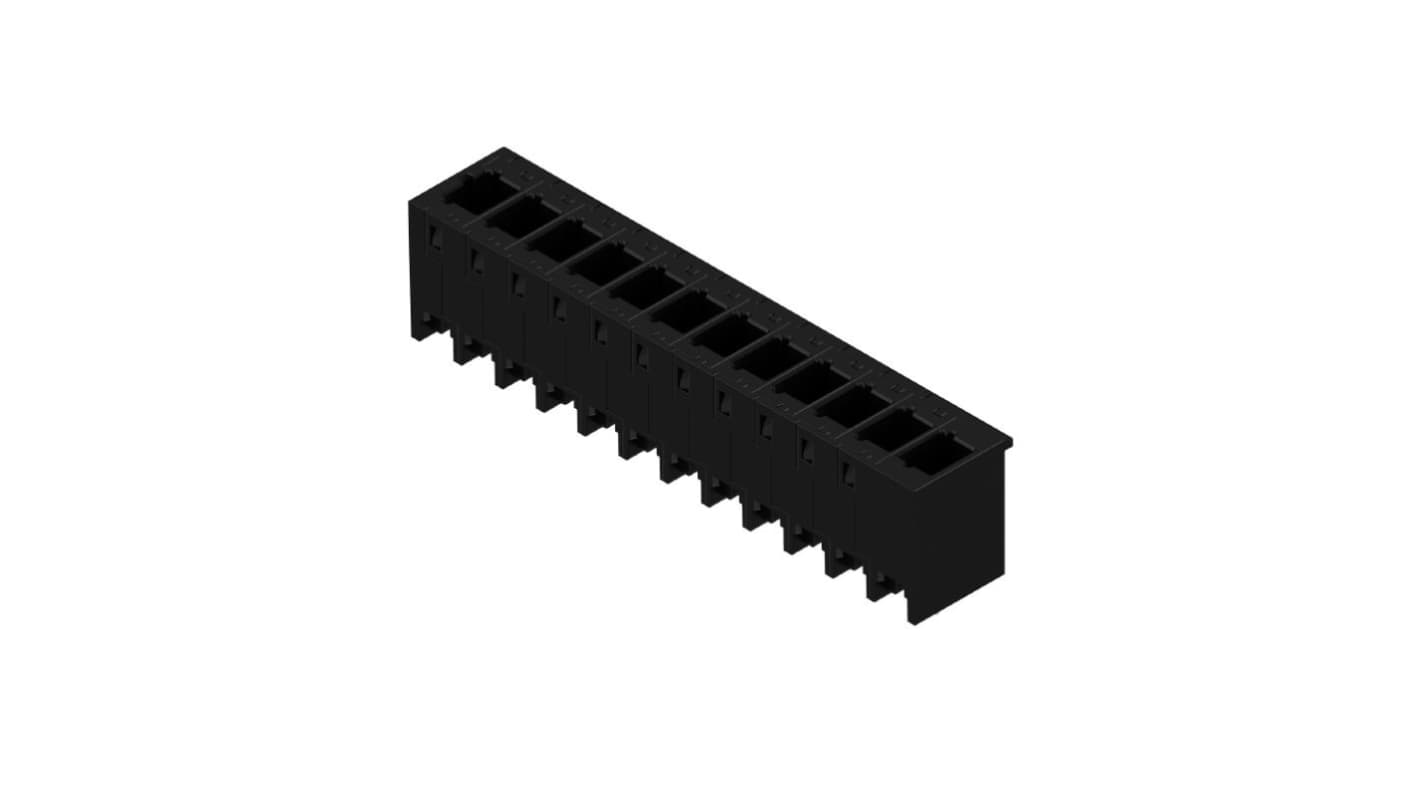

Weidmüller 8000072470 Series Straight PCB Socket, 12-Contact, 1 Row, 5 mm Pitch Push-in

View all PCB Sockets

Subtotal (1 unit)*

£277.07

(exc. VAT)

£332.48

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£277.07

*price indicative

RS Stock No.:
688-086
Mfr. Part No.:
8000072470
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Product Type

PCB Socket

Number of Contacts

12

Sub Type

PCB Plug-In Connector

Number of Rows

1

Current

25.3A

Pitch

5mm

Termination Type

Push-in

Housing Material

Polyamide 9T

Orientation

Straight

Voltage

40 V

Series

8000072470

Row Pitch

5mm

Minimum Operating Temperature

50°C

Maximum Operating Temperature

125°C

Contact Material

Copper Alloy

Contact Gender

Male

Contact Plating

Tinned

Standards/Approvals

IEC 60664-1, IEC 61984, IPC-A-610 Class 2, REACH, RoHS, UL 1059

COO (Country of Origin):
DE
The Weidmuller PCB plug-in connector is a 12 pole male header with a 5.00 mm pitch, designed for THT/THR solder connections. Featuring a 180° orientation and supplied in a tube, it ensures efficient handling and dependable integration into electronic assemblies.

Future proof Single Pair Ethernet technology

Ready for Robot through wire ready delivery with open clamping point

Optical and acoustic feedback indicates proper wiring

Automatic offer preparation for the configurated product

RoHS compliant
