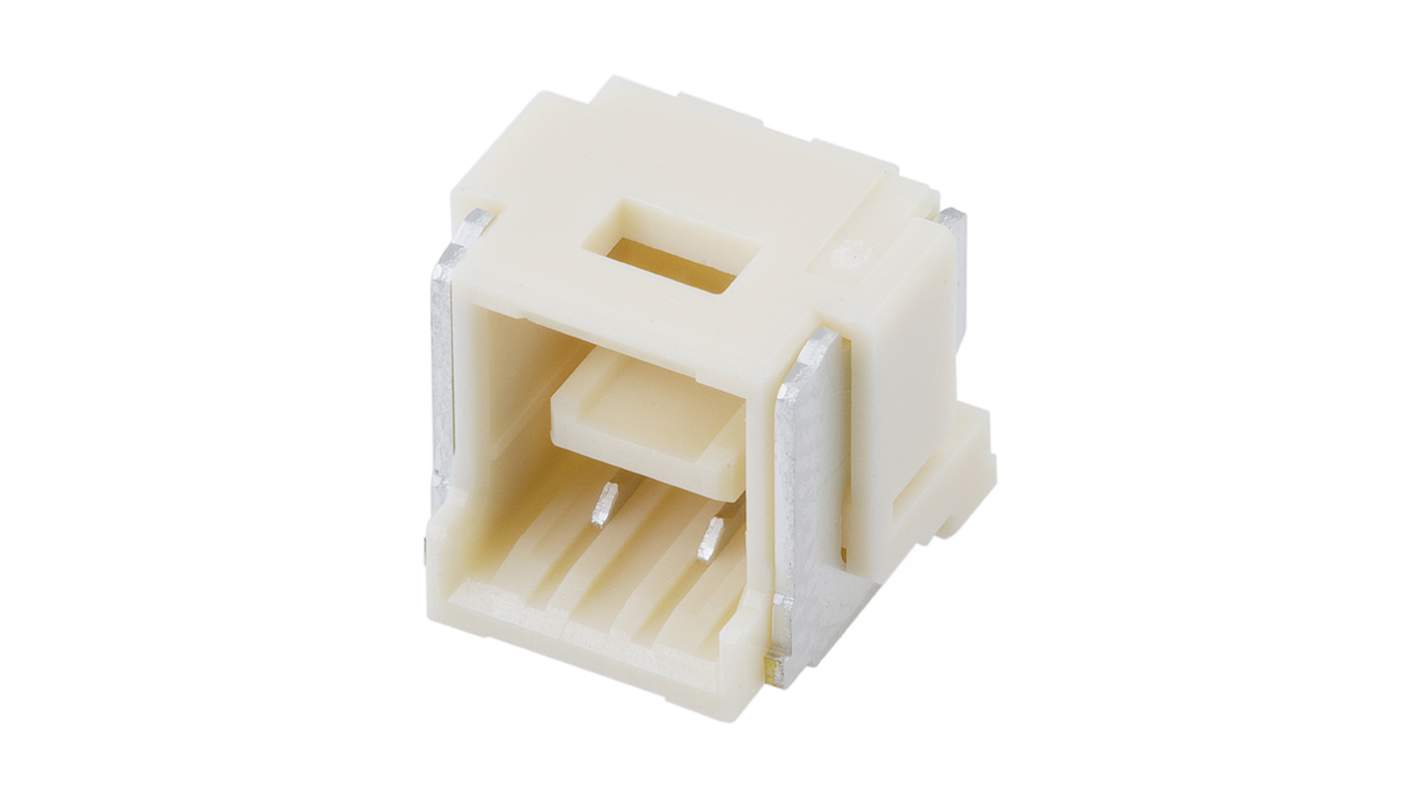

Molex 502494 Series Right Angle Surface Housing, 2-Contact, 1 Row, 2 mm Pitch Surface Mount
- RS Stock No.:
- 476-394
- Distrelec Article No.:
- 304-56-465
- Mfr. Part No.:
- 502494-0270
- Brand:
- Molex
Subtotal (1 reel of 950 units)*
£316.45
(exc. VAT)
£379.74
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £316.45 | £0.333 |
*price indicative
- RS Stock No.:
- 476-394
- Distrelec Article No.:
- 304-56-465
- Mfr. Part No.:
- 502494-0270
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 2 | |
| Product Type | Housing | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 1 | |
| Pitch | 2mm | |
| Current | 3A | |
| Termination Type | Surface Mount | |
| Mount Type | Surface | |
| Orientation | Right Angle | |
| Stacking Height | 6.9mm | |
| Series | 502494 | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Maximum Operating Temperature | 105°C | |
| Contact Plating | Tin | |
| Standards/Approvals | chemSHERPA, EU RoHS, IEC-62474, IPC 1752A Class C, IPC 1752A Class D, REACH SVHC | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 2 | ||
Product Type Housing | ||
Sub Type PCB Receptacle | ||
Number of Rows 1 | ||
Pitch 2mm | ||
Current 3A | ||
Termination Type Surface Mount | ||
Mount Type Surface | ||
Orientation Right Angle | ||
Stacking Height 6.9mm | ||
Series 502494 | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Maximum Operating Temperature 105°C | ||
Contact Plating Tin | ||
Standards/Approvals chemSHERPA, EU RoHS, IEC-62474, IPC 1752A Class C, IPC 1752A Class D, REACH SVHC | ||
- COO (Country of Origin):
- JP
The TE Connectivity CLIK-Mate Wire-to-Board PCB Receptacle revolutionizes connectivity with its innovative design tailored for optimal performance in demanding applications. Engineered to accommodate a 2.00mm pitch, this single-row, right-angle receptacle ensures secure and reliable connections in limited spaces. Its robust construction is complemented by compliance with various environmental standards, making it an excellent choice for users who priorities sustainability. Versatile enough for a variety of signaling applications, it features impeccable electrical specifications, enabling maximum current of 3.0A and voltage of up to 250V, which further enhances its utility across numerous electronic designs. With its advanced mating features, the receptacle not only meets but exceeds expectations in efficiency and reliability, setting a high standard in the realm of PCB receptacles for wire-to-board applications.
Offers a compact design ideal for space-constrained applications
Enables simple integration with the mating part for secure connections
Ensures durability through high-quality tin-plated materials
Supports an extensive temperature range suitable for various environments
Complies with stringent environmental regulations for a greener choice
