Molex 213680 Series Vertical Screw PCB Header, 1 Row Press Fit
- RS Stock No.:
- 309-042
- Mfr. Part No.:
- 2136800001
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£21.78
(exc. VAT)
£26.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.78 |
| 10 + | £20.03 |
*price indicative
- RS Stock No.:
- 309-042
- Mfr. Part No.:
- 2136800001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 1 | |
| Termination Type | Press Fit | |
| Mount Type | Screw | |
| Orientation | Vertical | |
| Series | 213680 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Sub Type PCB Receptacle | ||
Number of Rows 1 | ||
Termination Type Press Fit | ||
Mount Type Screw | ||
Orientation Vertical | ||
Series 213680 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- MY

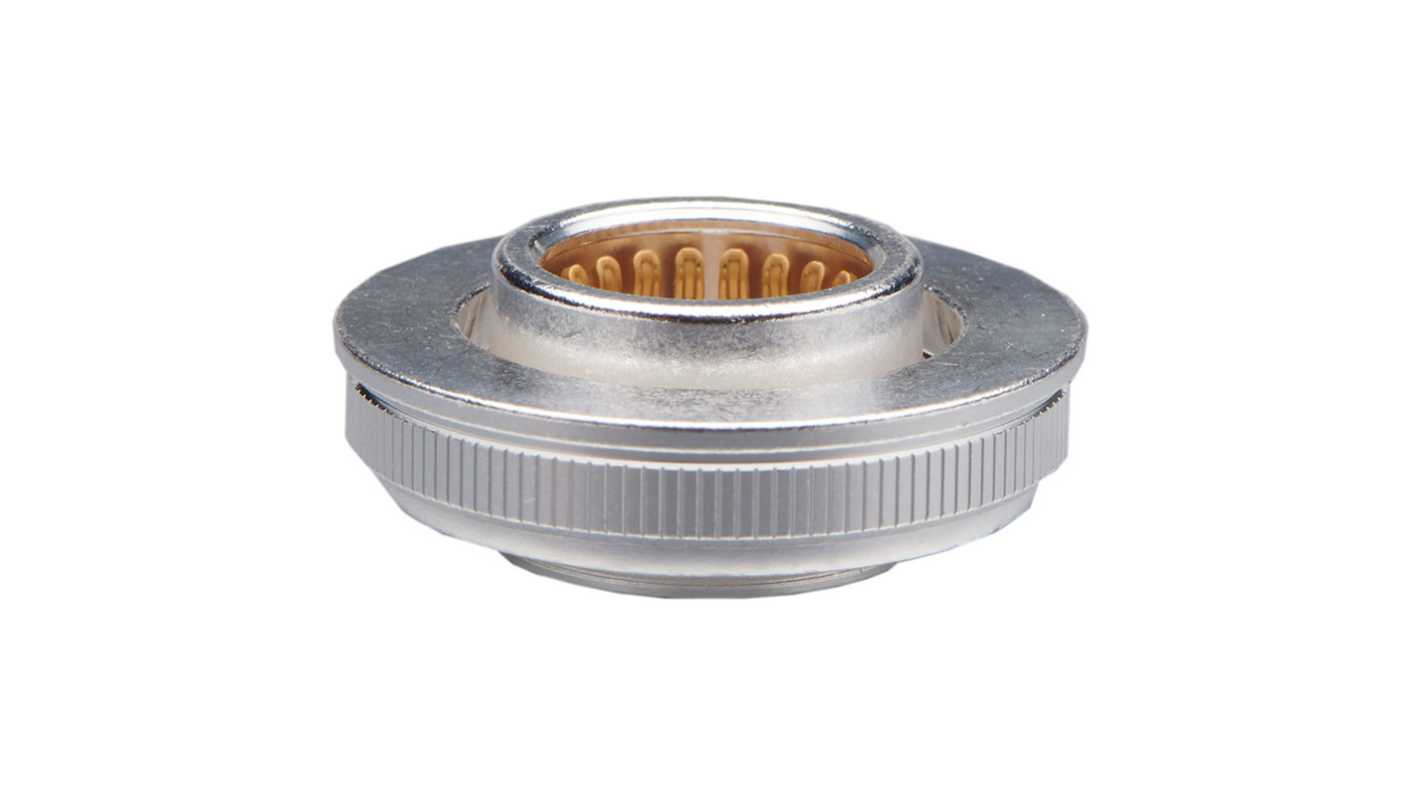

The Molex Sentrality 11.00mm top entry knurled press fit socket assembly with ±1.00mm self alignment capability is engineered for enhanced ease of installation, allowing for slight misalignment during assembly. The self alignment feature helps ensure a secure connection even with small variations in alignment. The knurled press fit design provides a reliable mechanical connection, making it ideal for applications requiring durability and precise fit.
EU RoHS and REACH SVHC compliance
Low Halogen
IEC-62474 standard
IPC 1752A Class C compliance
IPC 1752A Class D compliance
