WAGO 722 Series Straight PCB PCB Header, 9-Contact, 1 Row, 7.5 mm Pitch Solder
- RS Stock No.:
- 224-325
- Mfr. Part No.:
- 722-739
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£119.18
(exc. VAT)
£143.02
(inc. VAT)
Add 1 box to get free delivery
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £119.18 | £4.767 |
*price indicative
- RS Stock No.:
- 224-325
- Mfr. Part No.:
- 722-739
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 9 | |
| Product Type | PCB Header | |
| Number of Rows | 1 | |
| Sub Type | Header | |
| Pitch | 7.5mm | |
| Current | 12A | |
| Housing Material | Polyamide 66 | |
| Termination Type | Solder | |
| Mount Type | PCB | |
| Orientation | Straight | |
| Connector System | MCS | |
| Voltage | 50 V | |
| Series | 722 | |
| Row Pitch | 7.5mm | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Female | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 85°C | |
| Contact Plating | Tin | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 9 | ||
Product Type PCB Header | ||
Number of Rows 1 | ||
Sub Type Header | ||
Pitch 7.5mm | ||
Current 12A | ||
Housing Material Polyamide 66 | ||
Termination Type Solder | ||
Mount Type PCB | ||
Orientation Straight | ||
Connector System MCS | ||
Voltage 50 V | ||
Series 722 | ||
Row Pitch 7.5mm | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Female | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 85°C | ||
Contact Plating Tin | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE

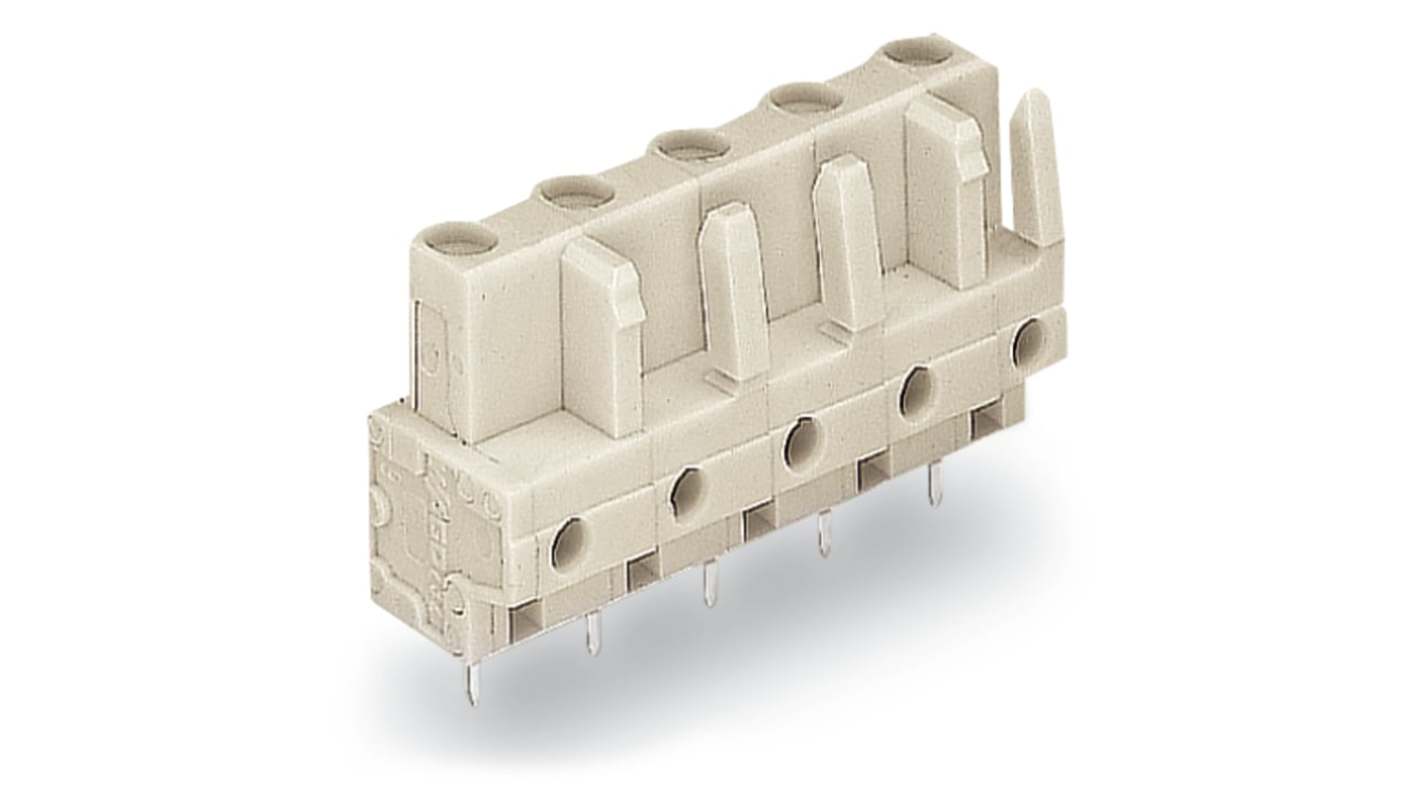

The Wago THT Female Header is designed for seamless connectivity in demanding environments. Engineered with precision, it ensures 100% protection against mismating, allowing for safe and reliable connections. With a pin spacing of 7.5 mm, this connector is suitable for both board to wire and board to board applications. Its robust construction features solder pins that are light grey in colour and ideal for various PCB mounting configurations.
Crafted from durable polyamide for long lasting reliability
Meets rigorous environmental testing standards
Accommodates multiple connection types within a single unit
Lightweight design optimises performance without compromising effectiveness
