WAGO 722 Series Straight PCB PCB Header, 8-Contact, 1 Row, 7.5 mm Pitch Solder
- RS Stock No.:
- 224-324
- Mfr. Part No.:
- 722-738
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£106.05
(exc. VAT)
£127.26
(inc. VAT)
Add 1 box to get free delivery
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £106.05 | £4.242 |
*price indicative
- RS Stock No.:
- 224-324
- Mfr. Part No.:
- 722-738
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Header | |
| Number of Contacts | 8 | |
| Sub Type | Header | |
| Number of Rows | 1 | |
| Pitch | 7.5mm | |
| Current | 12A | |
| Termination Type | Solder | |
| Housing Material | Polyamide 66 | |
| Mount Type | PCB | |
| Orientation | Straight | |
| Connector System | MCS | |
| Voltage | 50 V | |
| Series | 722 | |
| Row Pitch | 7.5mm | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Female | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Header | ||
Number of Contacts 8 | ||
Sub Type Header | ||
Number of Rows 1 | ||
Pitch 7.5mm | ||
Current 12A | ||
Termination Type Solder | ||
Housing Material Polyamide 66 | ||
Mount Type PCB | ||
Orientation Straight | ||
Connector System MCS | ||
Voltage 50 V | ||
Series 722 | ||
Row Pitch 7.5mm | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Female | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE

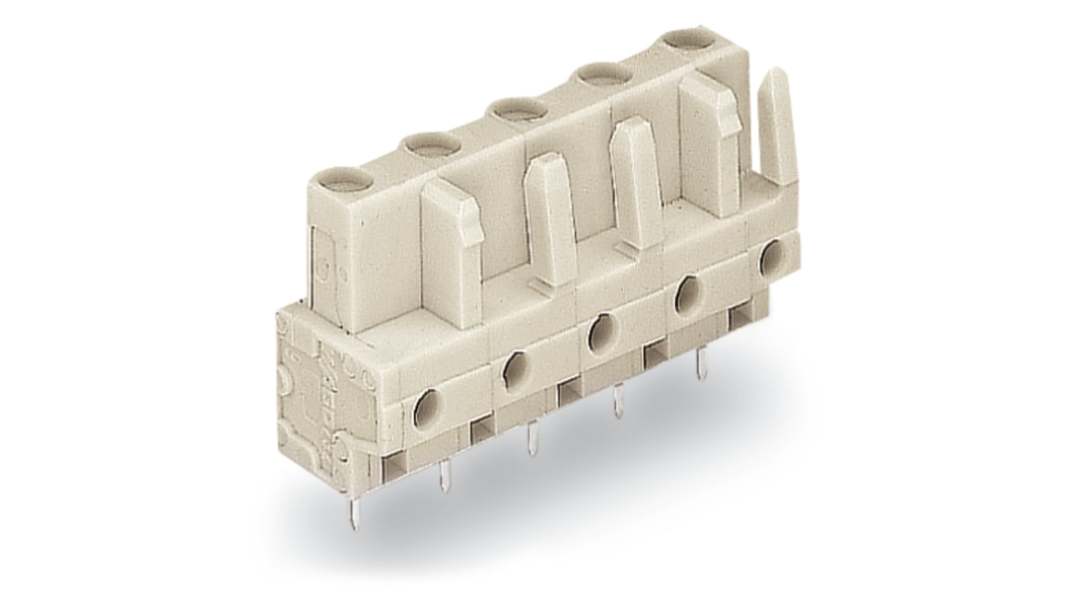

The Wago THT Female Header connector is designed to facilitate reliable and efficient connections in various applications. Featuring a pin spacing of 7.5 mm and an 8 pole arrangement, it ensures seamless integration with your PCB systems. The connector’s robust design guarantees 100% protection against mismating, significantly reducing installation errors. Its light grey colour not only provides a clean aesthetic but also enhances visibility in crowded setups.
Variable coding allows for custom configurations
Manufactured from high quality polyamide for durability
Lightweight design facilitates ease of handling and installation
Meets rigorous environmental testing standards
