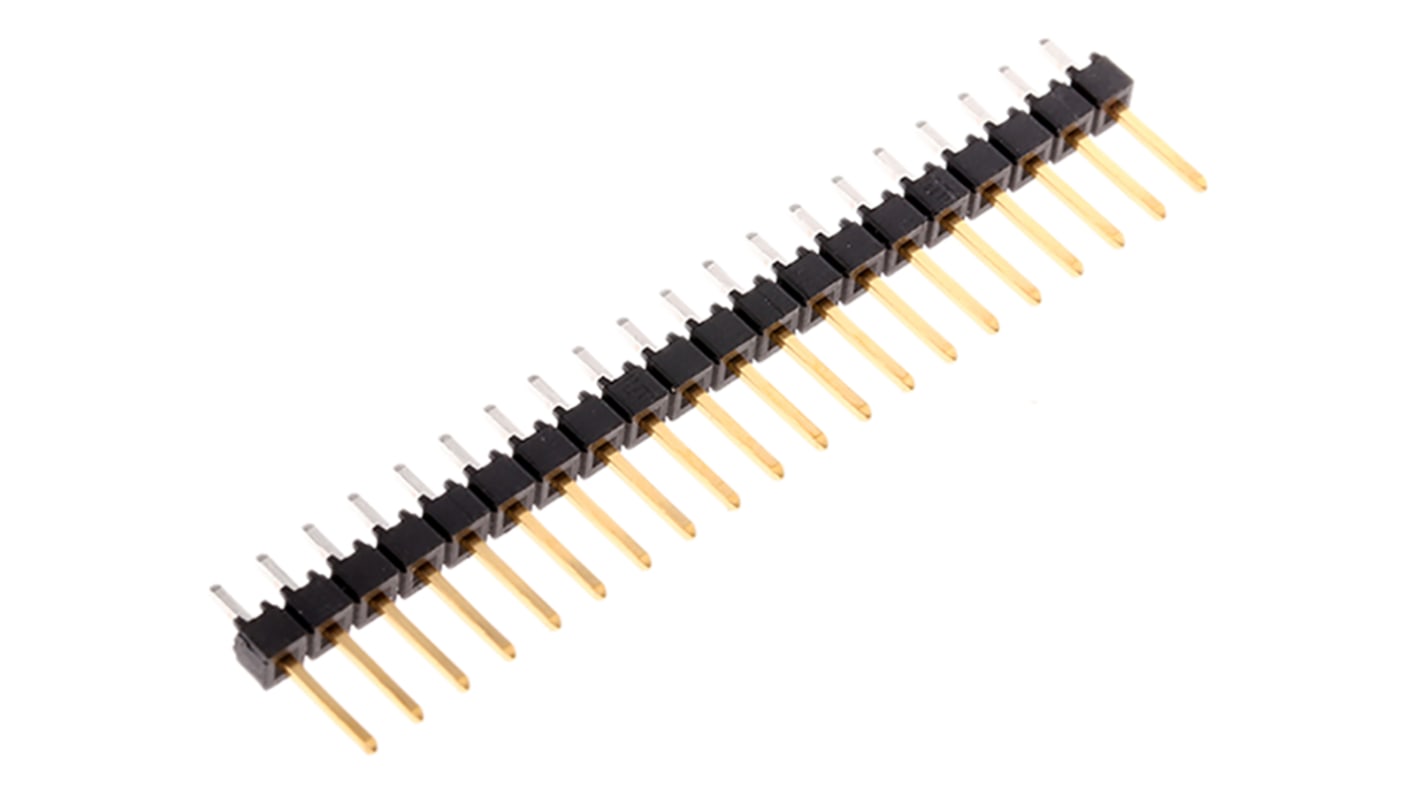

Samtec TSW Series Straight Through Hole Pin Header, 20 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 767-1176
- Mfr. Part No.:
- TSW-120-07-L-S
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£1.30
(exc. VAT)
£1.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 201 unit(s) shipping from 01 December 2025
- Plus 176 unit(s) shipping from 01 December 2025
- Plus 246 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.30 |
| 10 - 99 | £1.25 |
| 100 - 499 | £1.05 |
| 500 + | £0.91 |
*price indicative
- RS Stock No.:
- 767-1176
- Mfr. Part No.:
- TSW-120-07-L-S
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Pin Header | |
| Series | TSW | |
| Current | 7.6A | |
| Pitch | 2.54mm | |
| Number of Contacts | 20 | |
| Housing Material | Glass Filled Polyester | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Tail Pin Length | 2.54mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Mating Pin Length | 5.84mm | |
| Voltage | 550 V | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Pin Header | ||
Series TSW | ||
Current 7.6A | ||
Pitch 2.54mm | ||
Number of Contacts 20 | ||
Housing Material Glass Filled Polyester | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board, Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Tail Pin Length 2.54mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Mating Pin Length 5.84mm | ||
Voltage 550 V | ||
Samtec TSW Series Pin Header, 7.6A Current Rating, Through Hole Mount - TSW-120-07-L-S
This straight pin header by Samtec is a high-quality connector designed for board-to-board and wire-to-board applications. With gold-plated phosphor bronze contacts and a current rating of 7.6A, this pin header ensures reliable and efficient connectivity.
Features & Benefits
• Suitable for through-hole mounting, ensuring secure and stable connections
• Unshrouded design with 20 contacts in a single row for easy installation and alignment
• Gold contact plating for enhanced conductivity and corrosion resistance
• Pitch of 2.54 mm for compatibility with standard electronic components
• Voltage rating of 550V, making it suitable for a wide range of requirements
Applications
• Ideal for use in high-current electronic circuits
• Can be used for applications requiring straight pin headers with through-hole mounting
Can it handle high current applications?
This Samtec pin header is designed to support a current rating of 7.6A, making it Ideal for high-current applications.
Will it work with through-hole mounting?
Yes, it is specifically designed for through-hole mounting, ensuring secure connections.
Is it suitable for board-to-board connections?
Yes, the Samtec pin header is reliable for board-to-board and wire-to-board connections, providing versatility in designs.
