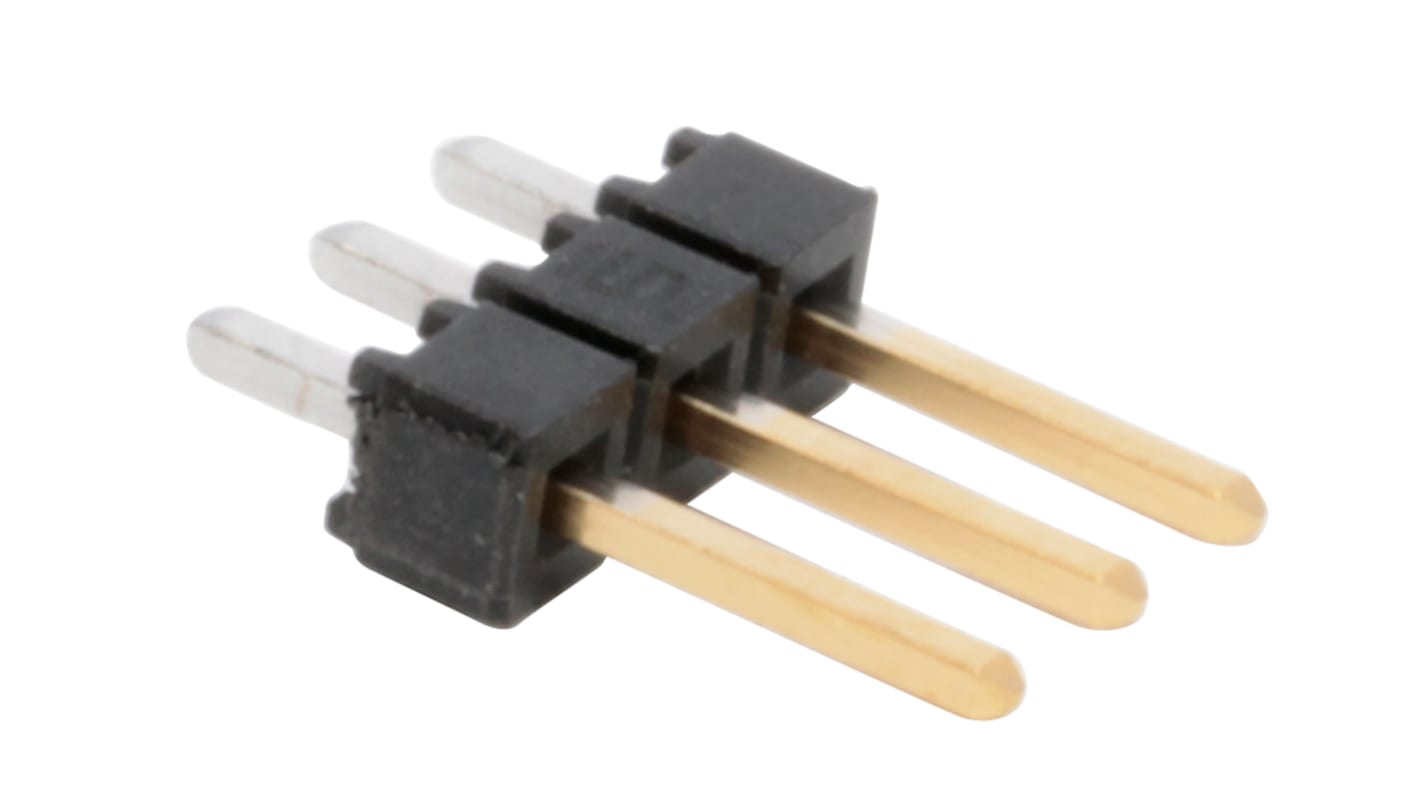

Samtec TSW Series Straight Through Hole Pin Header, 3 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 767-0858
- Mfr. Part No.:
- TSW-103-07-L-S
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£0.15
(exc. VAT)
£0.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
- Plus 137 unit(s) ready to ship from another location
- Plus 135 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.15 |
| 10 - 99 | £0.14 |
| 100 - 499 | £0.11 |
| 500 - 999 | £0.10 |
| 1000 + | £0.08 |
*price indicative
- RS Stock No.:
- 767-0858
- Mfr. Part No.:
- TSW-103-07-L-S
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | TSW | |
| Product Type | Pin Header | |
| Current | 7.6A | |
| Pitch | 2.54mm | |
| Housing Material | Glass Filled Polyester | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Tail Pin Length | 2.54mm | |
| Mating Pin Length | 5.84mm | |
| Standards/Approvals | No | |
| Voltage | 550 V | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series TSW | ||
Product Type Pin Header | ||
Current 7.6A | ||
Pitch 2.54mm | ||
Housing Material Glass Filled Polyester | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board, Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Tail Pin Length 2.54mm | ||
Mating Pin Length 5.84mm | ||
Standards/Approvals No | ||
Voltage 550 V | ||
Samtec Pin Header, 550V AC Voltage Rating, Glass-Filled Polyester Insulation Material - TSW Series - TSW-103-07-L-S
Searching for a safe way to establish links on your PCB? Choose this pin header from Samtec. It has highly conductive phosphor bronze pins that carry current from wired adapters to your circuit board, so you can count on it to transmit signals without a hitch. Through-hole mounting ensures a firm link to your board that holds up in vibrating conditions, making this piece of kit fit for rugged environments. The unit is a Master of many trades that mates with numerous connectors, including those in the SSW and SSQ series.
Features & Benefits
• Safe to use in challenging conditions, thanks to its wide operating temperature range between -55°C and +125°C
• Current rating of 7.6A makes it suitable for medium-duty applications
• Glass-filled polyester insulation prevents electric shocks for improved safety
• Gold contact plating improves resistance to corrosion for long-lasting service
Applications
• Laptop and desktop computers
• Consumer electronics
• Industrial control systems
Can I reuse this pin header?
Yes, you can reuse this unit. It's important to desolder it carefully to prevent damage to its pins.
