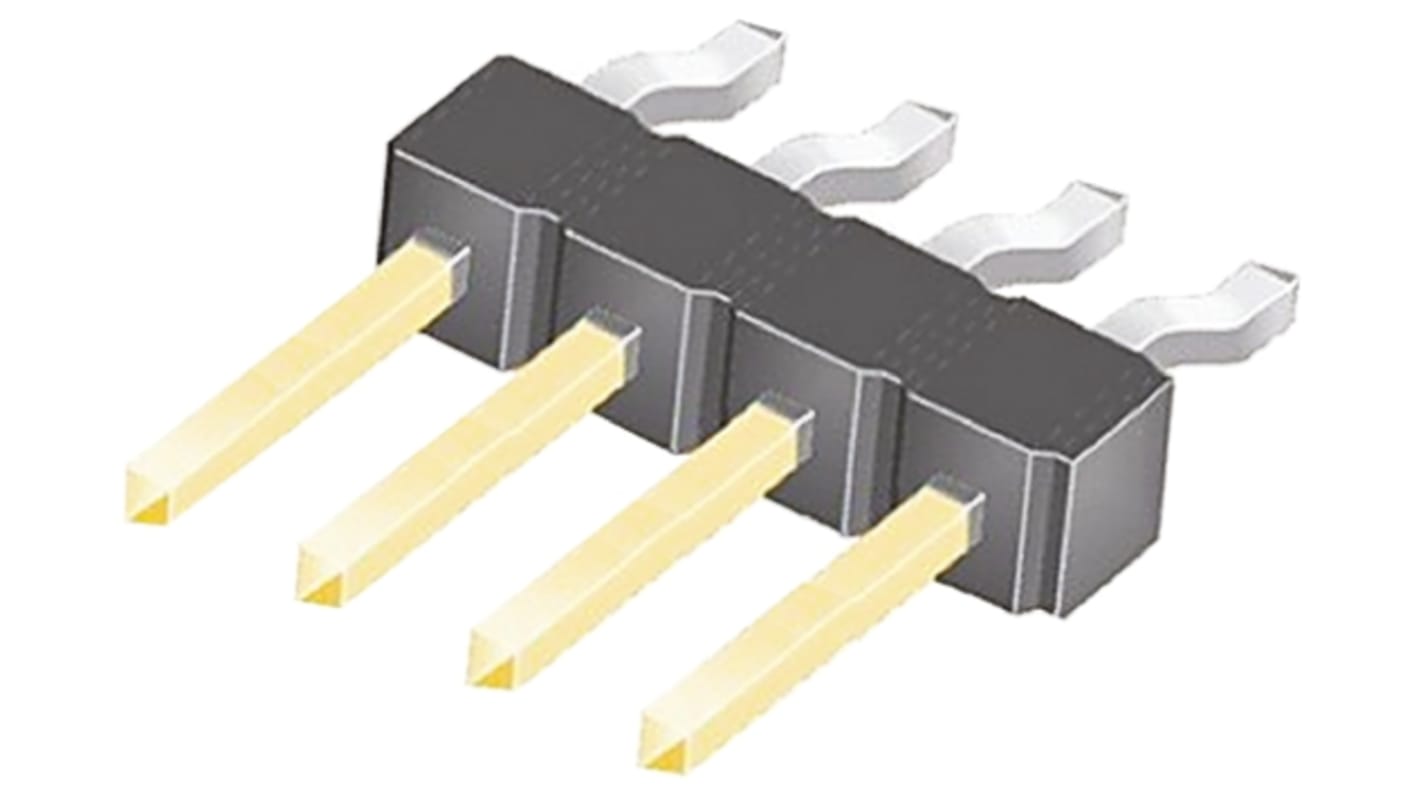

Samtec TSM Series Right Angle Surface Mount Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 765-6499
- Mfr. Part No.:
- TSM-104-02-L-SH
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£0.94
(exc. VAT)
£1.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 999,999,994 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.94 |
| 10 - 24 | £0.85 |
| 25 - 99 | £0.76 |
| 100 - 499 | £0.65 |
| 500 + | £0.58 |
*price indicative
- RS Stock No.:
- 765-6499
- Mfr. Part No.:
- TSM-104-02-L-SH
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | TSM | |
| Pitch | 2.54mm | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board to Board, Wire to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Series Number | Male | |
| Current Rating | 7.0A | |
| Mating Pin Length | 8.13mm | |
| Voltage Rating | 475 V ac | |
| Gender | Male | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Series TSM | ||
Pitch 2.54mm | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board to Board, Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Series Number Male | ||
Current Rating 7.0A | ||
Mating Pin Length 8.13mm | ||
Voltage Rating 475 V ac | ||
Gender Male | ||
Samtec TSM Series Pin Header, 7.0A Current Rating, Surface Mount - TSM-104-02-L-SH
This pin header by Samtec featuring a right-angle body orientation and surface mount type provides efficient connectivity solutions in various electronic applications. With high-quality phosphor bronze contact plating, this pin header ensures reliable performance.
Features & Benefits
• Efficient right angle body orientation for seamless integration
• Reliable surface mounting type for easy installation
• High-quality phosphor bronze contact plating for enhanced conductivity
• Gold plating for corrosion resistance and longevity
• Reliable surface mounting type for easy installation
• High-quality phosphor bronze contact plating for enhanced conductivity
• Gold plating for corrosion resistance and longevity
Applications
• Ideal for board-to-board connectors in electronic devices
• Can be used for wire-to-board connectivity in automation systems
• Can be used for wire-to-board connectivity in automation systems
Can it be used for wire-to-board connections?
Yes, this pin header is suitable for wire-to-board connectivity applications.
Will it provide reliable performance in high-current situations?
Yes, it offers a high current rating of 7A for efficient operation.
Is solder termination method easy to implement with this pin header?
Yes, the solder termination method ensures secure connections for various electronic setups.
