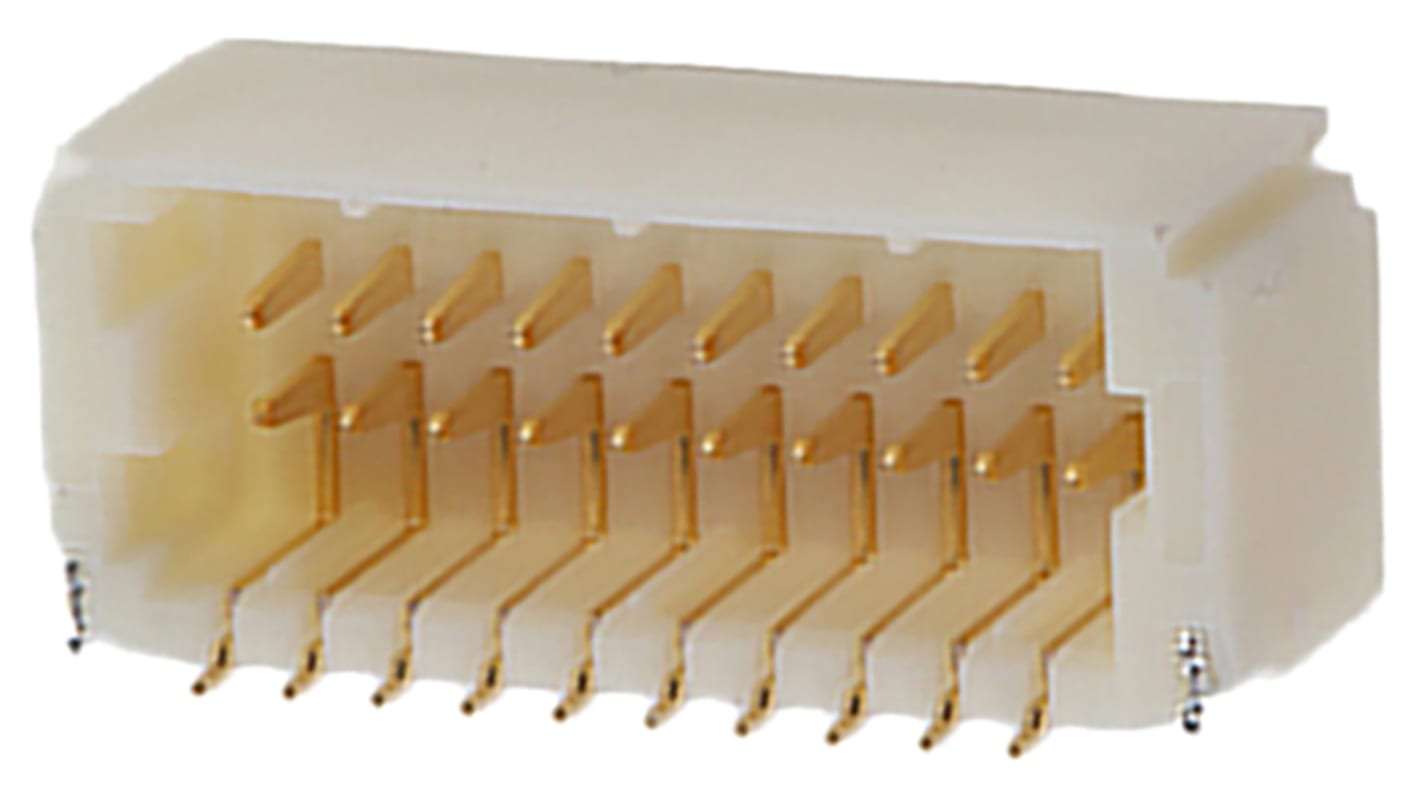

JST SHD Series Right Angle Surface Mount PCB Header, 20 Contact(s), 1.0mm Pitch, Shrouded
- RS Stock No.:
- 752-1712
- Mfr. Part No.:
- SM20B-SRDS-G-TF(LF)(SN)
- Brand:
- JST
Subtotal (1 pack of 5 units)*
£7.40
(exc. VAT)
£8.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 14,110 unit(s) shipping from 10 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.48 | £7.40 |
*price indicative
- RS Stock No.:
- 752-1712
- Mfr. Part No.:
- SM20B-SRDS-G-TF(LF)(SN)
- Brand:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | SHD | |
| Pitch | 1.0mm | |
| Number of Contacts | 20 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Wire to Board | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 1.0A | |
| Voltage Rating | 50.0 V | |
Select all | ||
|---|---|---|
Brand JST | ||
Series SHD | ||
Pitch 1.0mm | ||
Number of Contacts 20 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Current Rating 1.0A | ||
Voltage Rating 50.0 V | ||
