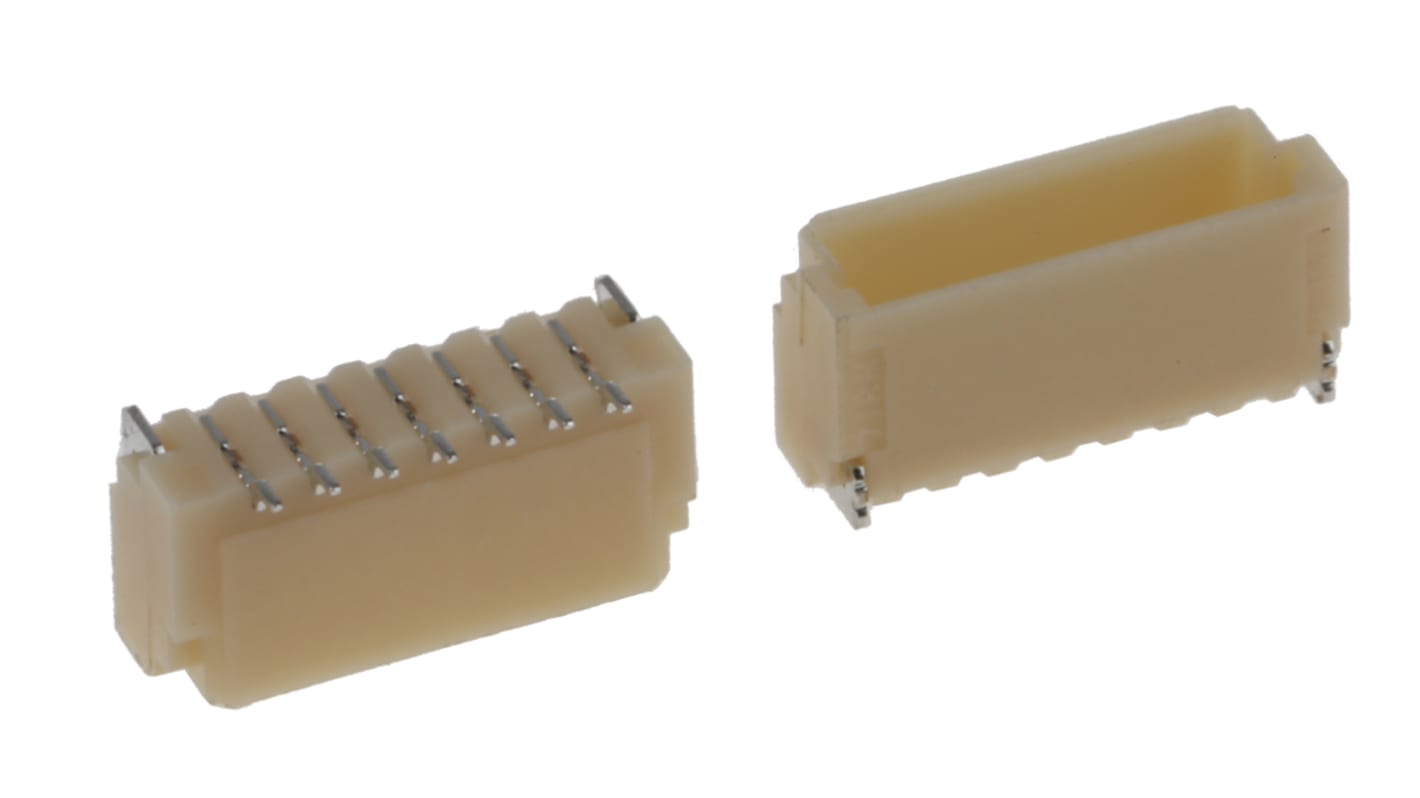

JST SH Series Straight Surface Mount PCB Header, 7 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 546-8798
- Mfr. Part No.:
- BM07B-SRSS-TB (LF)(SN)
- Brand:
- JST
280 In stock - FREE next working day delivery available
980 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.563
(exc. VAT)
£0.676
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.563 | £5.63 |
| 250 - 990 | £0.482 | £4.82 |
| 1000 - 1490 | £0.395 | £3.95 |
| 1500 - 2490 | £0.373 | £3.73 |
| 2500 + | £0.355 | £3.55 |
| *price indicative | ||
- RS Stock No.:
- 546-8798
- Mfr. Part No.:
- BM07B-SRSS-TB (LF)(SN)
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
PCB connector SH base
1.0mm Wire to Board - JST SH Series
The JST SH connectors are an extremely compact and versatile Wire-to-board interconnection system on a 1mm pitch utilising surface mount technology and pre-terminated leads. Available in 2, 3, 4, 8 and 10 way versions, this high quality range is suitable for many applications where board space is limited.
Low mating force
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Specifications
Attribute | Value |
|---|---|
| Series | SH |
| Pitch | 1.0mm |
| Number of Contacts | 7 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Copper Alloy |
| Current Rating | 1.0A |
| Voltage Rating | 50.0 V |
