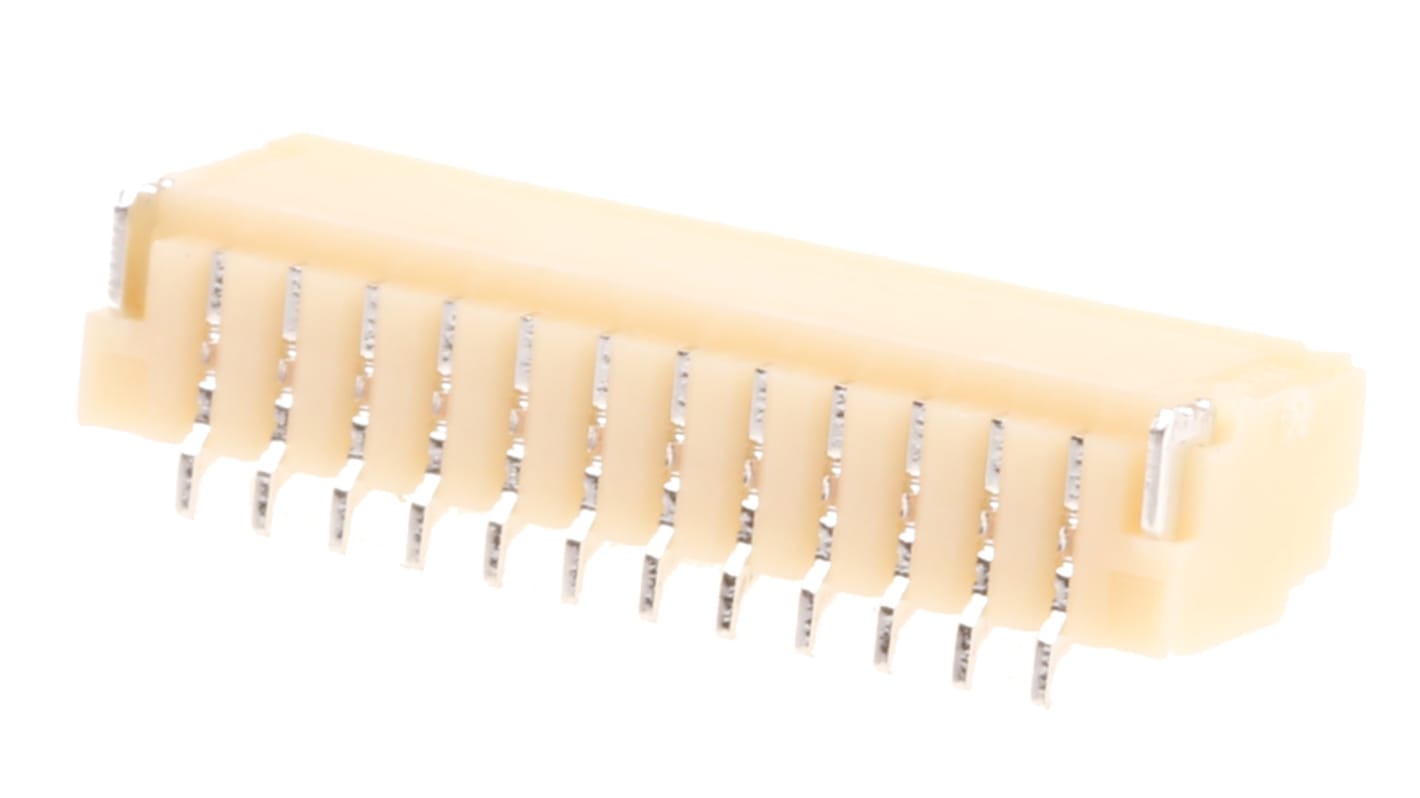

JST SH Series Straight Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 502-2623
- Mfr. Part No.:
- BM12B-SRSS-TB-(LF)(SN)
- Brand:
- JST
Save 43% when you buy 5000 units
Subtotal (1 pack of 5 units)*
£5.19
(exc. VAT)
£6.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £1.038 | £5.19 |
| 125 - 495 | £0.778 | £3.89 |
| 500 - 2495 | £0.648 | £3.24 |
| 2500 - 4995 | £0.616 | £3.08 |
| 5000 + | £0.586 | £2.93 |
*price indicative
- RS Stock No.:
- 502-2623
- Mfr. Part No.:
- BM12B-SRSS-TB-(LF)(SN)
- Brand:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | SH | |
| Pitch | 1.0mm | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Wire to Board | |
| Termination Method | Solder | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Current Rating | 1.0A | |
| Voltage Rating | 50.0 V | |
Select all | ||
|---|---|---|
Brand JST | ||
Series SH | ||
Pitch 1.0mm | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Current Rating 1.0A | ||
Voltage Rating 50.0 V | ||
