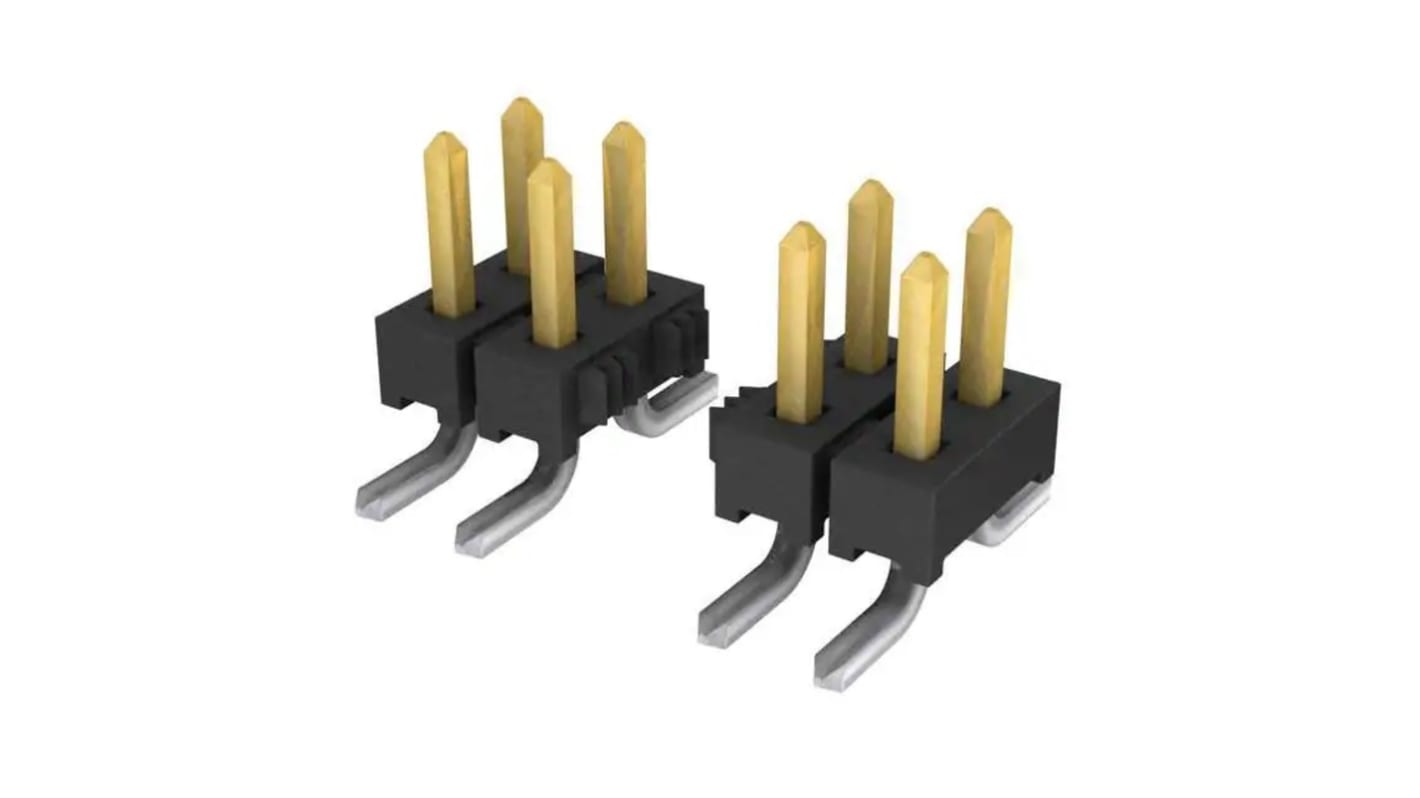

Samtec TMM Series Vertical Surface Mount Pin Header, 8 Contact(s), 2.0mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 227-1956
- Mfr. Part No.:
- TMM-105-01-L-D-SM-A-009-P-TR
- Brand:
- Samtec
Price Each (In a Pack of 5)
£2.90
(exc. VAT)
£3.48
(inc. VAT)
Available to back order for despatch 18/07/2024
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.90 | £14.50 |
| 50 - 120 | £2.636 | £13.18 |
| 125 - 245 | £2.416 | £12.08 |
| 250 + | £2.232 | £11.16 |
*price indicative
- RS Stock No.:
- 227-1956
- Mfr. Part No.:
- TMM-105-01-L-D-SM-A-009-P-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec TMM series 2mm low profile SMT header has 5 pins per row 1 lead style. It has 0.000254mm light selective gold in contact area and matte tin on tail.
Dual row
Surface mount tail
Alignment pin
Polarised position is 9
Plastic pick and place pad
Tape and reel packaging
Surface mount tail
Alignment pin
Polarised position is 9
Plastic pick and place pad
Tape and reel packaging
Specifications
Attribute | Value |
|---|---|
| Series | TMM |
| Pitch | 2.0mm |
| Number of Contacts | 8 |
| Number of Rows | 2 |
| Body Orientation | Vertical |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Surface Mount |
