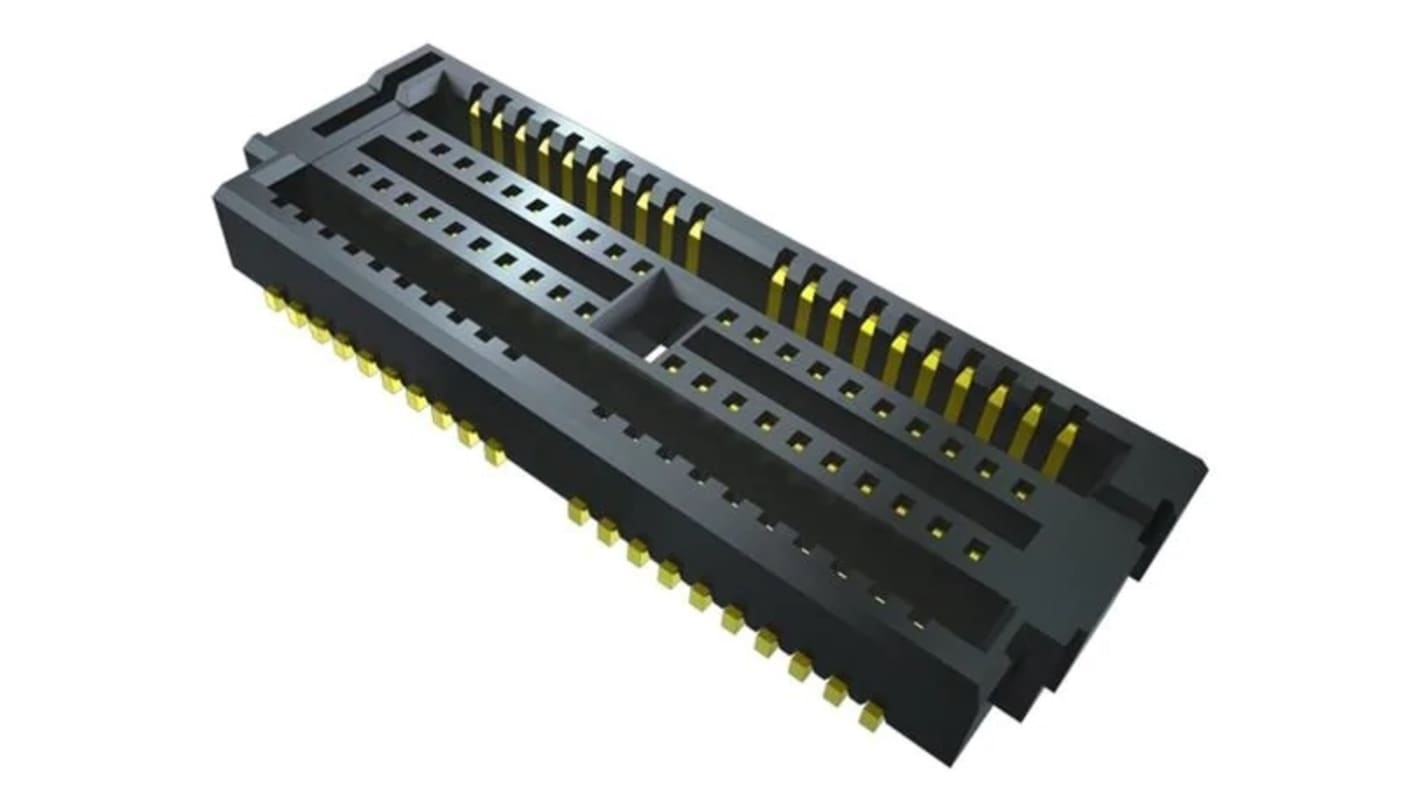

Samtec LTH Series Horizontal Surface PCB Header, 20 Contact(s), 0.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 227-1463
- Mfr. Part No.:
- LTH-010-01-G-D-A-K-TR
- Brand:
- Samtec
Subtotal (1 reel of 1225 units)*
£1,728.475
(exc. VAT)
£2,073.925
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1225 + | £1.411 | £1,728.48 |
*price indicative
- RS Stock No.:
- 227-1463
- Mfr. Part No.:
- LTH-010-01-G-D-A-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Series | LTH | |
| Current | 2.6A | |
| Pitch | 0.5mm | |
| Number of Contacts | 20 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 0.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 1.27mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 1.68mm | |
| Voltage | 188 V | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Series LTH | ||
Current 2.6A | ||
Pitch 0.5mm | ||
Number of Contacts 20 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 0.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 1.27mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Mating Pin Length 1.68mm | ||
Voltage 188 V | ||
Non Compliant
The Samtec LTH series 0.5mm low profile blade & beam terminal strip has 10 positions per row and 1 lead style. It has 0.000254mm gold in contact area and 0.0000762mm gold on tail.
Dual row
Alignment pin
Polyamide film pick and place pad
Tape and reel packaging
