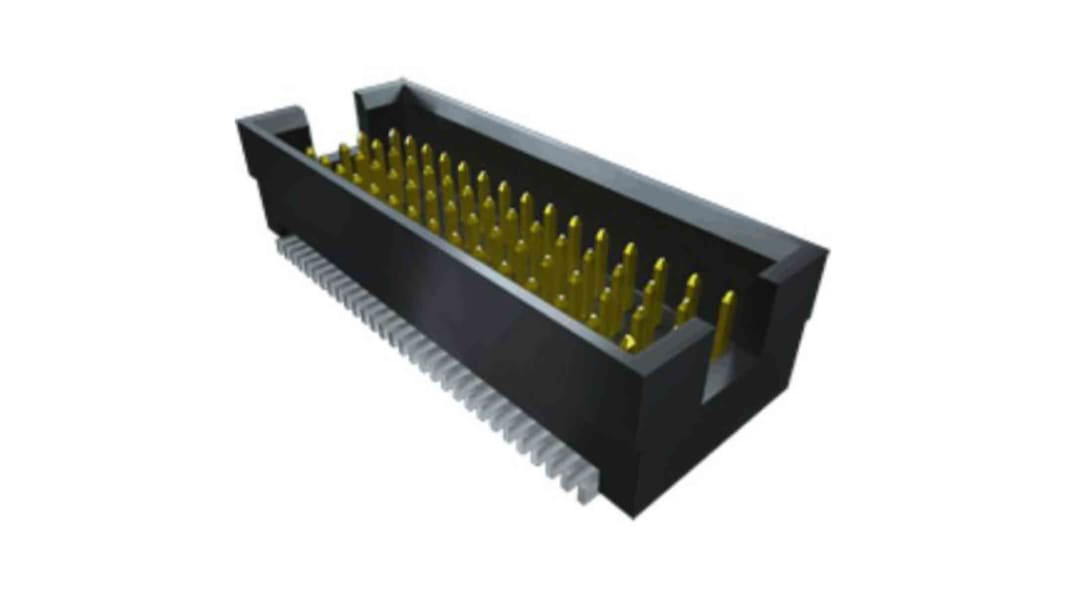

Samtec TOLC Series Straight Surface PCB Header, 140 Contact(s), 1.27 mm Pitch, 4 Row(s), Shrouded
- RS Stock No.:
- 208-6022
- Mfr. Part No.:
- TOLC-135-02-L-Q-LC
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£15.72
(exc. VAT)
£18.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.72 |
| 5 + | £14.06 |
*price indicative
- RS Stock No.:
- 208-6022
- Mfr. Part No.:
- TOLC-135-02-L-Q-LC
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Series | TOLC | |
| Current | 2.4A | |
| Pitch | 1.27mm | |
| Number of Contacts | 140 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 4 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 1.27mm | |
| Termination Type | Surface Mount | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Compliant | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Series TOLC | ||
Current 2.4A | ||
Pitch 1.27mm | ||
Number of Contacts 140 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 4 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Plating Gold over Nickel | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 1.27mm | ||
Termination Type Surface Mount | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Compliant | ||
The Samtec connector header has surface mount with 140 position.
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 140
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
