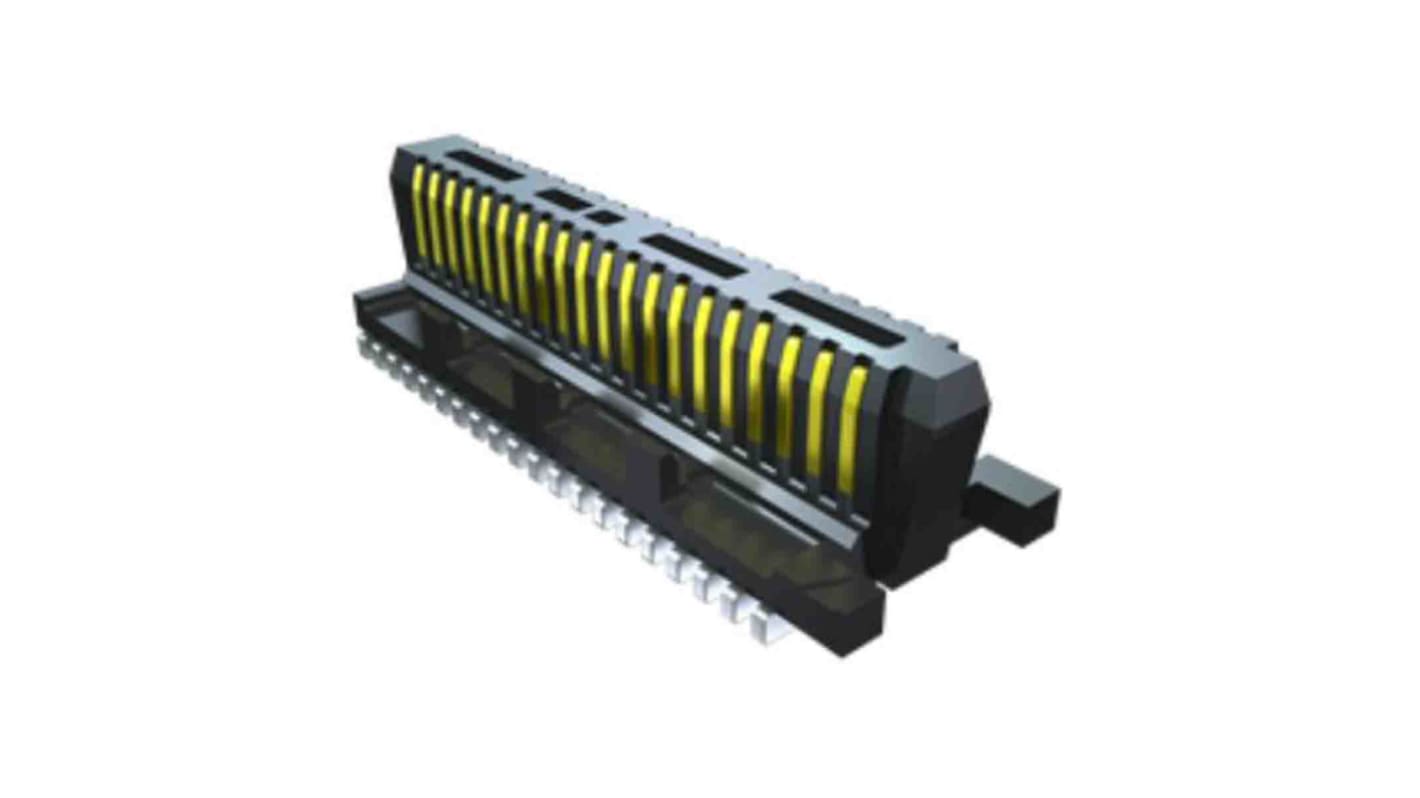

Samtec ST5 Series Right Angle Surface PCB Header, 160 Contact(s), 0.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 208-5858
- Mfr. Part No.:
- ST5-80-1.50-L-D-P-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tape of 2 units)*
£18.07
(exc. VAT)
£21.684
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 8 | £9.035 | £18.07 |
| 10 - 98 | £8.435 | £16.87 |
| 100 - 198 | £7.745 | £15.49 |
| 200 + | £7.305 | £14.61 |
*price indicative
- RS Stock No.:
- 208-5858
- Mfr. Part No.:
- ST5-80-1.50-L-D-P-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | ST5 | |
| Product Type | PCB Header | |
| Current | 1.6A | |
| Pitch | 0.5mm | |
| Number of Contacts | 160 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Plating | Silver, Tin | |
| Contact Material | Phosphor Bronze | |
| Termination Type | Solder | |
| Row Pitch | 0.5mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series ST5 | ||
Product Type PCB Header | ||
Current 1.6A | ||
Pitch 0.5mm | ||
Number of Contacts 160 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Plating Silver, Tin | ||
Contact Material Phosphor Bronze | ||
Termination Type Solder | ||
Row Pitch 0.5mm | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
The Samtec 160 position connector with center strip contacts surface mount gold.
Number of Positions 160
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Pick and Place
