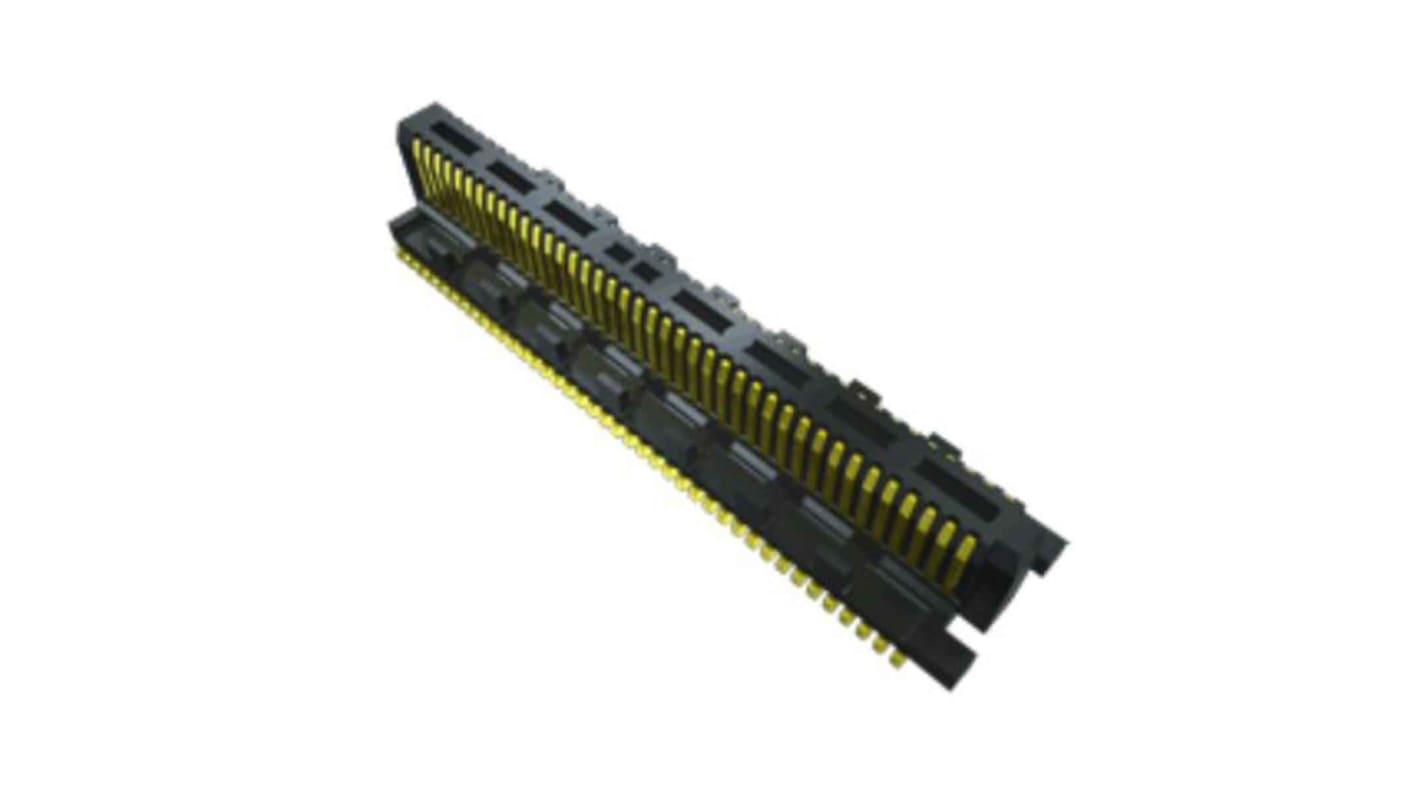

Samtec ST4 Series Right Angle Surface PCB Header, 20 Contact(s), 0.4 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 208-5837
- Mfr. Part No.:
- ST4-10-1.50-L-D-P-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 1025 units)*
£1,987.475
(exc. VAT)
£2,385.175
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1025 - 4100 | £1.939 | £1,987.48 |
| 5125 - 9225 | £1.885 | £1,932.13 |
| 10250 + | £1.834 | £1,879.85 |
*price indicative
- RS Stock No.:
- 208-5837
- Mfr. Part No.:
- ST4-10-1.50-L-D-P-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Series | ST4 | |
| Current | 1.6A | |
| Pitch | 0.4mm | |
| Number of Contacts | 20 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Silver, Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 0.4mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Series ST4 | ||
Current 1.6A | ||
Pitch 0.4mm | ||
Number of Contacts 20 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Silver, Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 0.4mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
The Samtec 20 position connector with outer shroud contacts surface mount gold.
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Pick and Place
Contact Finish Gold
