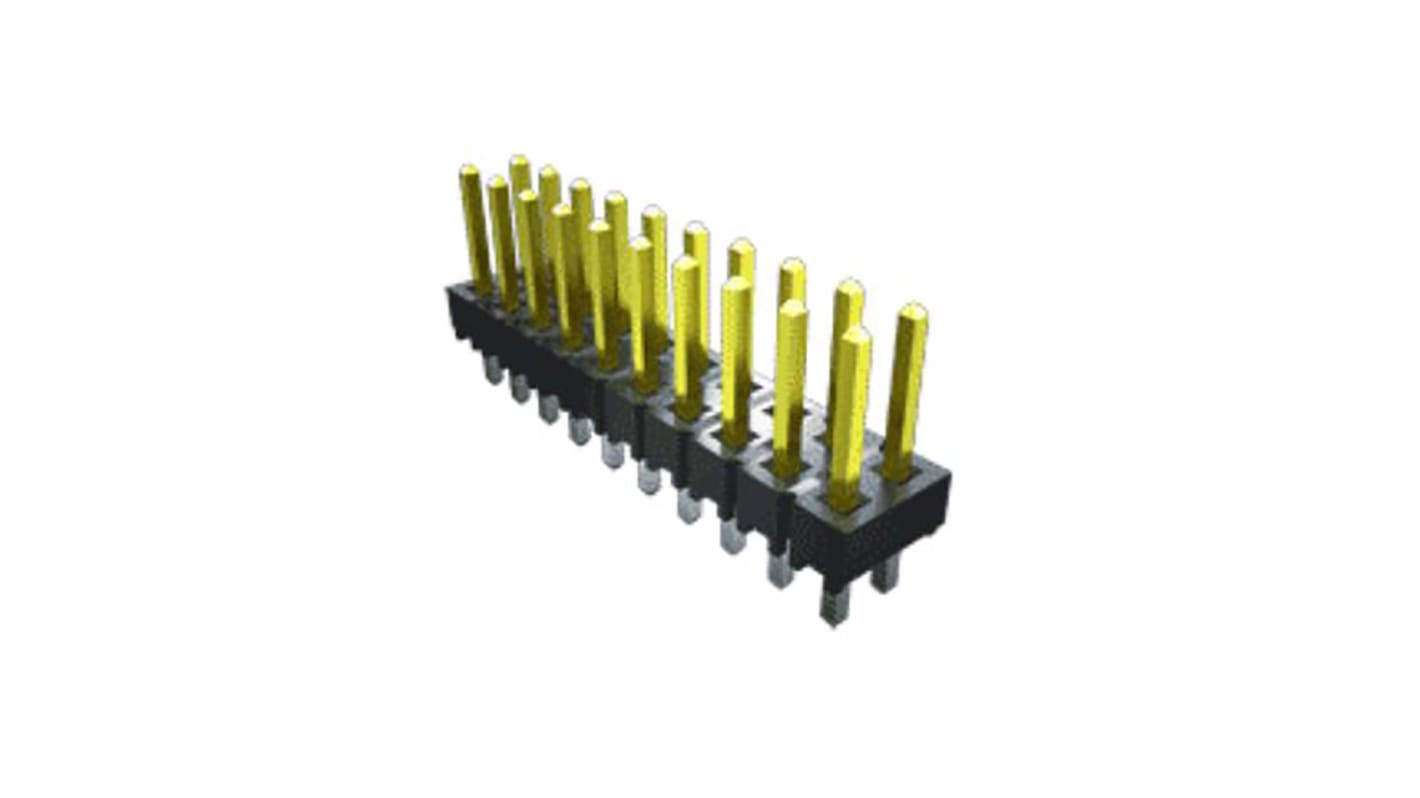

Samtec TSW Series Pin Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

RS Stock No.:: 208-5555
Mfr. Part No.:: TSW-110-22-G-D-RA
Brand:: Samtec

Samtec TSW Series Pin Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

Available to back order for despatch 10/07/2024

Price Each

£1.83

(exc. VAT)

£2.20

(inc. VAT)

Units	Per unit
1 - 9	£1.83
10 - 49	£1.41
50 - 99	£1.21
100 - 249	£1.10
250 +	£0.97

RS Stock No.:: 208-5555
Mfr. Part No.:: TSW-110-22-G-D-RA
Brand:: Samtec

Technical Reference

Datasheet - TSW-110-22-G-D-RA

Legislation and Compliance

Product Details

The Samtec connector header is through hole mount with 20 position.

Pitch: .100" (2.54 mm)
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: Industry's largest variety of standard pin counts, terminal lengths and options
Special Features: Many options fo

Specifications

Attribute	Value
Series	TSW
Pitch	2.54mm
Number of Contacts	20
Number of Rows	2
Shrouded/Unshrouded	Unshrouded
