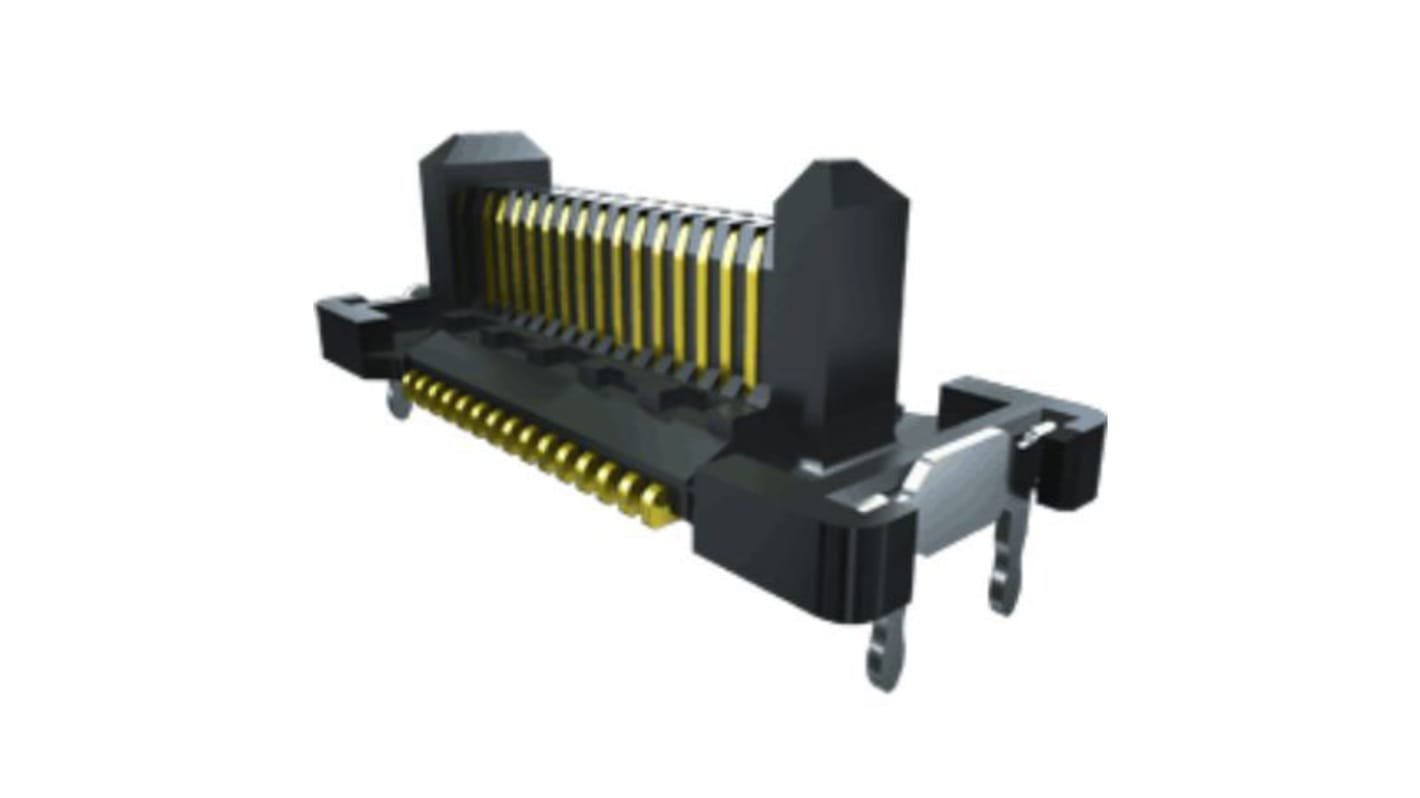

Samtec FT5 Series Right Angle Surface PCB Header, 15 Contact(s), 0.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 208-1384
- Mfr. Part No.:
- FT5-15-01-L-RA-K-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 550 units)*
£2,151.05
(exc. VAT)
£2,581.15
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 550 - 2200 | £3.911 | £2,151.05 |
| 2750 - 4950 | £3.803 | £2,091.65 |
| 5500 + | £3.70 | £2,035.00 |
*price indicative
- RS Stock No.:
- 208-1384
- Mfr. Part No.:
- FT5-15-01-L-RA-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | FT5 | |
| Product Type | PCB Header | |
| Pitch | 0.5mm | |
| Current | 1.8A | |
| Number of Contacts | 15 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 0.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series FT5 | ||
Product Type PCB Header | ||
Pitch 0.5mm | ||
Current 1.8A | ||
Number of Contacts 15 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Row Pitch 0.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
The Samtec FT5 series is high speed floating contact which has a 0.50mm micro terminal strip with 30 contact position.
Operating temperature range -55°C to +125°C
Vertical or right-angle
