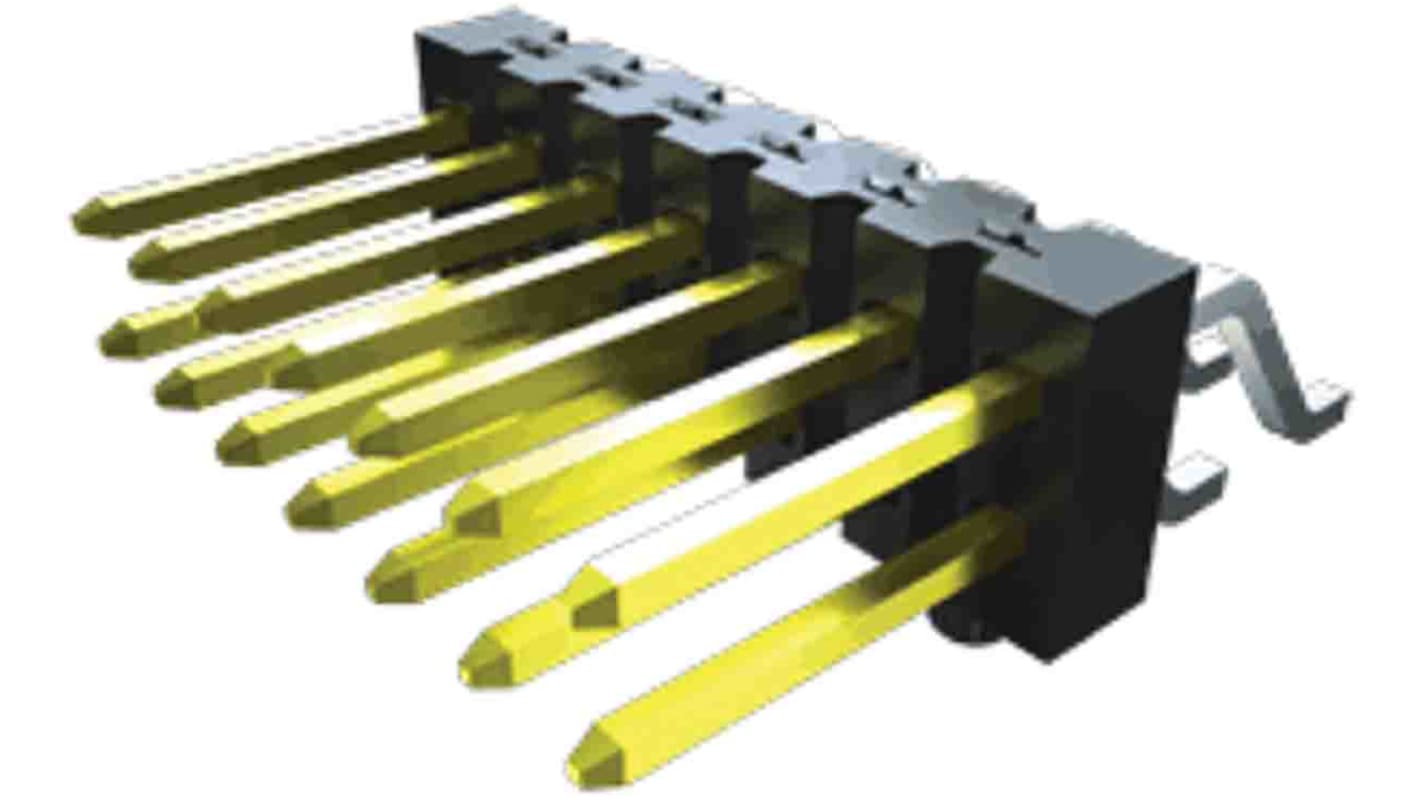

Samtec TSM Series Horizontal Surface Mount Pin Header, 6 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 200-1595
- Mfr. Part No.:
- TSM-106-01-T-SH-K-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 625 units)*
£503.75
(exc. VAT)
£604.375
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 625 - 625 | £0.806 | £503.75 |
| 1250 + | £0.761 | £475.63 |
*price indicative
- RS Stock No.:
- 200-1595
- Mfr. Part No.:
- TSM-106-01-T-SH-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | TSM | |
| Pitch | 2.54mm | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Body Orientation | Horizontal | |
| Shrouded/Unshrouded | Unshrouded | |
| Mounting Type | Surface Mount | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series TSM | ||
Pitch 2.54mm | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Body Orientation Horizontal | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Surface Mount | ||
The Samtec TSM series is a surface mount terminal strip. Insulating material used is of Black liquid crystal polymer. Terminals are of phosphor bronze. There are total 6 no. of contacts.
Plating used : Au or Sn over 50 μ" (1.27 μm) Ni
Operating temp range: -55 °C to +105 °C with Tin
Operating temp range: -55 °C to +105 °C with Tin
-55 °C to +125 °C with Gold
It is RoHS Compliant
It is RoHS Compliant
